| Maximum Extended Range | 656.17 ft |
| Brand Name | Veracity |
| Certifications & Standards |
|
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 1" |
| Length | 4.7" |
| Manufacturer | Veracity USA Inc |
| Manufacturer Part Number | VOR-ORM-G |
| Manufacturer Website Address | http://www.veracityusa.com |
| Marketing Information | Power over Ethernet and network range extender OUTREACH Max G extends gigabit Ethernet to 200 metres with full POE pass-through ideal for deployment of wireless access points and IP cameras. OUTREACH Max G easily overcomes the distance limits of POE networks Simply connecting an OUTREACH Max G in line with the network cable instantly doubles the range from 100 metres (328 ft) to 200 metres (656 ft) with POE. Cable lengths in Ethernet networks are limited to 100 metres (328 ft) which is a serious restriction for many security installations. OUTREACH Max G enables installers to overcome this network limitation. Simply connecting an OUTREACH Max G in line with the network cable instantly doubles the range from 100 metres to 200 metres (656 ft). Simple to install Fitting OUTREACH Max G is simple because no set-up is required. Its only connections are two RJ45 network ports both of which immediately self-configure for 10Base-T 100Base-TX or 1000Base-T operation. POE power is automatically transferred between connected equipment. No local power supply connection is needed because OUTREACH Max G is powered by POE. OUTREACH Max G can easily be located anywhere along the network cable as long as no single length of cable is greater than 100 metres. For example to extend the network connection between a POE switch and an IP camera to 170 metres an OUTREACH Max G could be installed 90 metres from the switch. A further 80 metres of cable would run from the OUTREACH Max G to the camera. Max POE power OUTREACH Max G enables network range extension to all POE devices that are compatible with IEEE 802.3af which is the universal POE standard for low power network devices such as fixed IP cameras. In addition OUTREACH Max G is compatible with POE Plus (IEEE 802.3at) and higher power 4-pair POE (IEEE 802.3bt) up to 90W. Note that OUTREACH Max G is designed for connection to POE compatible equipment only. If POE power is not required Veracity's OUTREACH Lite G should be specified instead. Go further If POE and network extension beyond 200 metres (656 ft) is required more than one OUTREACH Max G may be installed in series. For example a 300 metre (984 ft) connection between a POE switch and a 10 watt IP camera can be achieved by fitting two OUTREACH Max G units at 100 metre intervals along the cable. The maximum extension distance depends on how much power is required and which POE source is used. See the tables on the next page or read Veracity's "Long Range Ethernet Extension" white paper on our website. For longer Ethernet runs Veracity recommends the LONGSPAN long distance point-to-point devices which can achieve 100Base-TX connections with POE at up to 820m (2690ft). No restrictions All OUTREACH devices restore the network connection like a switch so when placed at 100m intervals along the cable they can deliver full bandwidth Ethernet over the full distance of 200m 300m or further. The "G" models deliver gigabit Ethernet maximising performance and transparency with no risk of reduced or unpredictable bandwidth. |
| Product Line | OUTREACH |

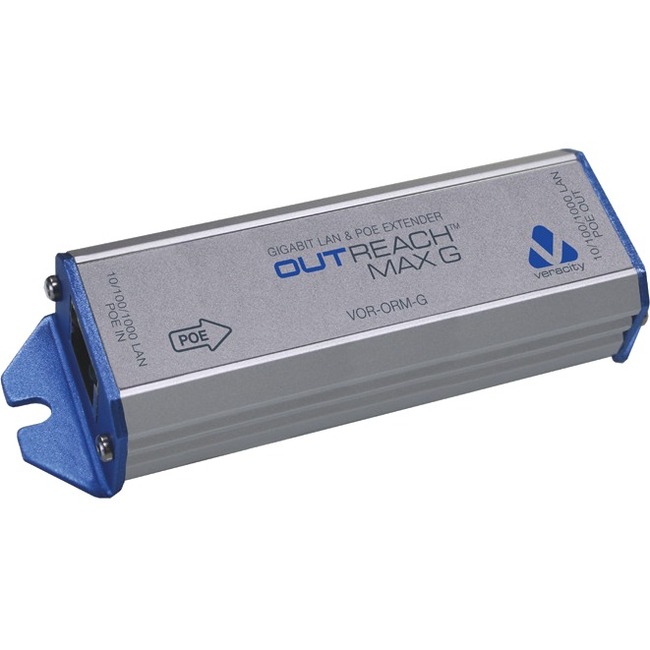

| Product Name | Gigabit Ethernet and POE extender |
| Product Type | Network Extender |
| UPC Alternates | 818242343935 892314002050 |
| Width | 1.4" |
