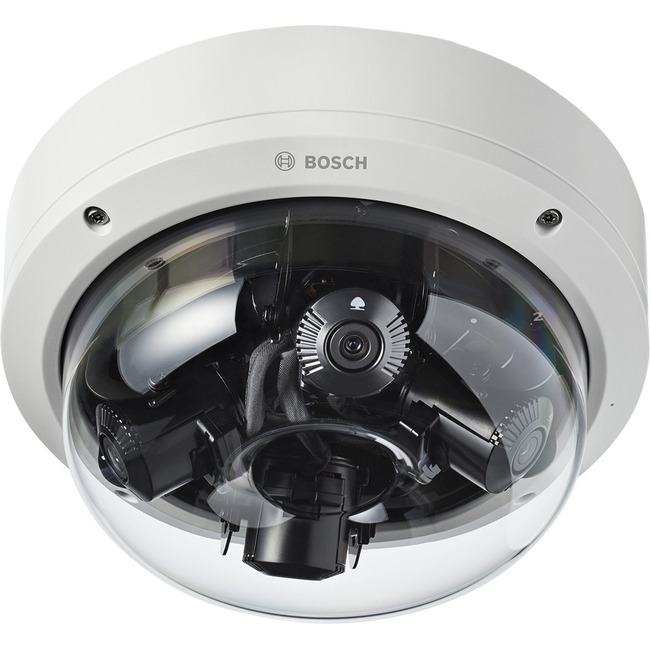

Bosch FLEXIDOME multi 12 Megapixel Indoor/Outdoor HD Network Camera - Color, Monochrome - Dome - TAA Compliant - H.265, H.264, MJPEG, H.265 (HEVC) - 2048 x 1536 - 3.70 mm- 7.70 mm Varifocal Lens - 2.1x Optical - CMOS - Wall Mount, Pipe Mount, In-ceiling, Conduit Mount, Ceiling Mount, Surface Mount, Junction Box Mount, Gang Box Mount, Pendant Mount, Pole Mount - IK10 - IP66 - Snow Resistant, Wind Resistance, Water Resistant, Dust Resistant, Vandal Resistant
H.265, H.264, MJPEG, H.265 (HEVC) - 2048 x 1536 - 3.70 mm- 7.70 mm Varifocal Lens - 2.1x Optical - CMOS - Wall Mount, Pipe Mount, In-ceiling, Conduit Mount, Ceiling Mount, Surface Mount, Junction Box Mount, Gang Box Mount, Pendant Mount, Pole Mount - IK10 - IP66 - Snow Resistant, Wind Resistance, Water Resistant, Dust Resistant, Vandal Resistant
| Field of View | Wide: 81.9º x 59.8º (H x V) - Tele: 39.5º x 28.9º (H x V) |
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Indoor/Outdoor |
| Ingress Protection Rating | IP66 |
| Maximum Aperture | f/1.9 |
| Minimum Focal Length | 3.70 mm |
| Minimum Operating Temperature | -58°F (-50°C) |
| Number of Sensors | 4 |
| Operating Humidity | 100% |
| Brand Name | Bosch |
| Color Supported | Color |
| Color Supported | Monochrome |
| Connectivity technology | Wired |
| Diameter | 8.7" |
| Durability | Wind Resistance |
| Durability | Water Resistant |
| Durability | Vandal Resistant |
| Durability | Snow Resistant |
| Durability | Dust Resistant |
| Effective Camera Resolution | 12 Megapixel |
| Environmental Certification | EU WEEE |
| Environmental Certification | China RoHS |
| Environmental Certification | EU RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Features | Tamper Detection |
| Features | Region of Interest |
| Features | Privacy Masking |
| Features | Automatic White Balance |
| Features | SD Card Local Storage |
| Features | Dynamic Noise Reduction |
| Features | Cross Line Detection |
| Features | Defog |
| Features | Enter/Exit Detector |
| Features | Wide Dynamic Range |
| Features | Back Light Compensation (BLC) |
| Features | Day/Night |
| Form factor | Dome |
| Height | 4.4" |
| Image Sensor Type | CMOS |
| Input voltage | 24 V AC |
| Lens Type | Varifocal |
| Longest Shutter Speed | 1/25 Second |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | NDM-7702-A |
| Manufacturer Website Address | http://www.bosch.com |
| Marketing Information | The FLEXIDOME multi 7000i camera is built for highquality performance featuring four independent imagers with motorized zoom/focus lenses. It helps to simplify installation and lower costs while maintaining flexibility in coverage. With four scenes simultaneously in a single camera it is perfect for wide area coverage traffic intersections and building corners. When the lenses are tilted at the right angle the camera can even cover an area up to full 360°. Additionally the zoom capability allows the camera to obtain detailed coverage for more distant areas.
Functions
12-megapixel multi-directional overviews
Four independent 3-megapixel imagers with separate remote zoom and focus lenses capture very highquality images with a total resolution of 12 megapixels.
Each of the four imagers can be set-up flexibly with 3- axis movement along a circular track. This enables surround coverage capturing detailed images from every angle for comprehensive video coverage with four separate views from a single IP address.
High Dynamic Range
The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features for example faces with bright backlight.
The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. This method is used to provide a standard result which can be used to compare different cameras.
H.265 high-efficiency video encoding
The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency H.265 has become the new compression standard of choice for IP video surveillance systems.
Two-way audio and built-in microphone
Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. Alternatively there is an integrated microphone to capture crisp and clear audio. By using the integrated or external microphone audio detection can be used to generate alarms to alert the security operator quicker and act more proactively. If required by local laws the microphone can be blocked via a secure license key. |
| Maximum Focal Length | 7.70 mm |
| Maximum frame rate | 30 fps |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Video Resolution | 2048 x 1536 |
| Mount Type | Ceiling Mount |
| Mount Type | Wall Mount |
| Mount Type | Pole Mount |
| Mount Type | In-ceiling |
| Mount Type | Pipe Mount |
| Mount Type | Gang Box Mount |
| Mount Type | Surface Mount |
| Mount Type | Junction Box Mount |
| Mount Type | Pendant Mount |
| Mount Type | Conduit Mount |
| Optical zoom | 2.1x |
| Package Contents | - 1 x FlexiDome 7000i Network Camera
- 1 x Mounting plate
- 1 x RJ-45 punch-through aid
- 1 x TR20 Allen key
- 1 x 2-pin power connector
- 1 x 8-pin Audio and I/O connector
- 2 x M20 rubber grommets
- 1 x Quick installation guide
- 1 x Safety information
- 3 x Installer UX labels
|
| Product color | White |
| Product Family | FLEXIDOME multi 7000i |
| Product Line | FLEXIDOME multi |
| Product Name | FLEXIDOME multi 7000i Network Camera |
| Product Series | 7000i |
| Product Type | Network Camera |
| Recording Formats | HD |
| Shortest Shutter Speed | 1/15000 Second |
| Storage Type | Memory Card |
| Video Formats | H.265 |
| Video Formats | H.265 (HEVC) |
| Video Formats | MJPEG |
| Video Formats | H.264 |
| Weight (Approximate) | 5.14 lb |
