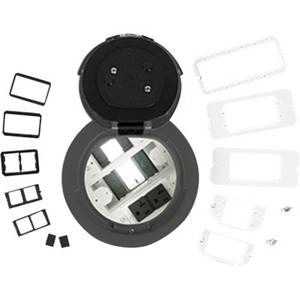

Wiremold Evolution 6AT Poke Thru Device - Poke Thru Device - Aluminum, Steel, Plastic
Poke Thru Device - Aluminum, Steel, Plastic
| Cable Manager Type | Poke Thru Device |
| Product Material | Steel |
| Product Material | Plastic |
| Product Material | Aluminum |
| Brand Name | Wiremold |
| Country of origin | United States |
| Environmental Certification | PEP ecopassport |
| Environmentally Friendly | Yes |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 6AT2PAVGY |
| Manufacturer Website Address | http://www.legrand.us |
| Marketing Information | The Industry's first 3 hour fire rated recessed Poke Thru is here. Designed for retrofit and new construction Evolution Series 6" Recessed Poke-Thru Devices provide convenient access to power communications and audio/video services recessed below floor level - providing maximum device protection. With 3 gangs of capacity you can configure services for the needs of your space. The low-profile metal covers are available in brushed aluminum satin brass satin nickel and multiple powder-coated finishes designed to match any space. Evolution Series 6" Poke-Thru Devices are the perfect fit for kiosks meeting rooms training rooms classrooms healthcare facilities or commercial buildings with open-space architecture. For carpet tile wood and laminate concrete floor coverings. - Prewired Assembly: Save on labor with a completely assembled prewired poke-thru with every power receptacle already installed.
- Recessed Devices: All power communications and A/V devices are recessed below floor level providing maximum protection and device longevity.
- "Step-on-it" Installation. Quick and easy installation without the need for additional fasteners or a second installer.
- Unique Cover Design: The cover opens a full 180 degrees with two unique spring-loaded slide egress doors to keep wires connections and people safe.
- Multiple Finishes: Evolution Series Poke-Thru Devices are available in multiple finishes: (BK) black (GY) gray (NK) nickel (BS) brass (BZ) bronze (AA) brushed aluminum (SB) satin brass and (SN) satin nickel to seamlessly match your environment.
- Ideal for High Foot Traffic Environments: Satin brass satin nickel and brushed aluminum finishes offer a more durable high-end look with a tougher clear powder coat.
- Flush Style Cover Assemblies: A flush style cover for tile applications allows the Evolution Series Poke-Thru Devices to be adjusted to the same level as the top surface of the floor covering. The flush cover is designed to be used for tile or wood floors and in higher traffic applications where a low profile is a must.
- A/V Ready: Plates included to accept industry standard communications and A/V devices from most manufacturers including Legrand AVIP Extron® and more.
- Plug Load Control Up To 30 Feet: Tested with Pass & Seymour® Wireless RF receptacles to control plug loads up to a distance of 30 feet when the cover is closed.
- 3 hour fire rating: Evolution Series Poke-Thru Devices use an intumescent material that maintains the fire rating of any floor for up to 3 hours the longest of its type.
- Meets ADA Accessibility Guidelines. Wide trim flange is designed to meet the ADA Accessibility Guidelines as it pertains to ADA Standard 4.5 which addresses changes in floor and ground surface levels. The poke-thru trim flanges are beveled so the slope is no greater than 1:2 ratio.
- UL Listed and UL Fire Classified to U.S. and Canadian safety standards.UL Fire rated for up to 2-hour rated floors maintains the fire classification of the floor.
|
| Package Contents | - 1 x Proprietary 20A Duplex Receptacle Installed
- 682A Device Plate
- 68MAAP Device Plate
- 6DEC Mounting Plate
- 6AAP Mounting Plate
- 68MAAP
- 1 x 5PTHA 1/2-Gang Pass-Through Housing Assembly
- 1 x 1PTHA 1-Gang Pass-Through Housing Assembly
- 1 x 575CHA 1/2-Gang 3/4" Conduit Housing Assembly
|
| Product color | Gray Powder Coat |
| Product Line | Evolution |
| Product Name | Evolution 6AT Poke Thru Device |
| Product Series | 6AT |
| Product Type | Cable Organizer |
