| Input Ports | 1 x Gigabit Ethernet |
| Input Ports | 1 x Gigabit Ethernet |
| Maximum Output Current | 1.25 A |
| Maximum Output Current | 1.25 A |
| Maximum Output Voltage | 56 V DC |
| Maximum Output Voltage | 56 V DC |
| Brand Name | Tycon Power |
| Brand Name | Tycon Power |
| Certifications & Standards |
|
| Certifications & Standards |
|
| Certifications & Standards |
|
| Compatibility |
|
| Compatibility |
|
| Depth | 4.9" |
| Depth | 4.9" |
| Environmental Certification | TÜV |
| Environmental Certification | TÜV |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Form factor | External |
| Form factor | External |
| Height | 1.5" |
| Height | 1.5" |
| Input voltage | 72 V DC |
| Input voltage | 72 V DC |
| Limited Warranty | 1 Year |
| Limited Warranty | 1 Year |
| Manufacturer | Tycon Power Systems |
| Manufacturer | Tycon Power Systems |
| Manufacturer Part Number | TP-DCDC-4856G-VHP |
| Manufacturer Part Number | TP-DCDC-4856G-VHP |
| Manufacturer Website Address | http://www.tyconpower.com |
| Manufacturer Website Address | http://www.tyconpower.com |

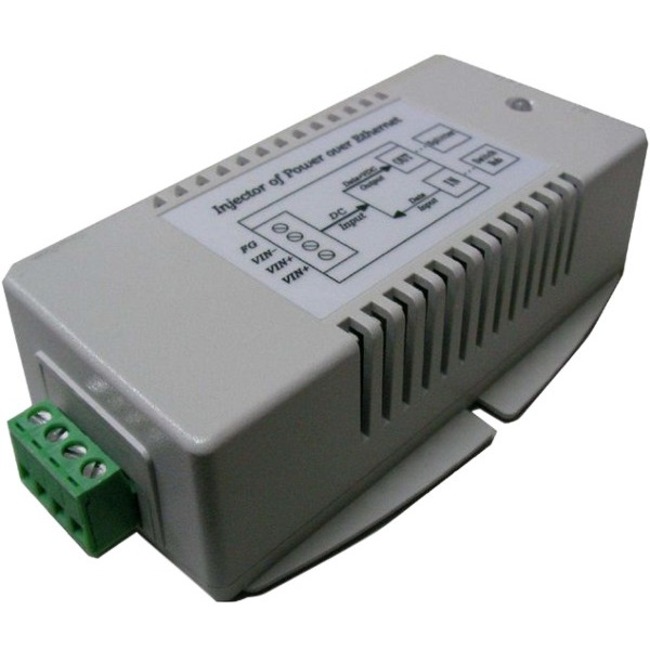

| Marketing Information | The TP-DCDC-4856G-VHP is a very high power DC to DC converter / passive POE inserter designed for Ubiquiti airFiber™ antennas and also various outdoor PTZ security cameras. The DCDC converter supplies 70W passive POE power on all 8 Ethernet wires. They have two isolated inputs for connecting 2 power sources like a primary and backup power source. They have various protections for surge short circuit and overload. The input and output are isolated. |
| Marketing Information | The TP-DCDC-4856G-VHP is a very high power DC to DC converter / passive POE inserter designed for Ubiquiti airFiber™ antennas and also various outdoor PTZ security cameras. The DCDC converter supplies 70W passive POE power on all 8 Ethernet wires. They have two isolated inputs for connecting 2 power sources like a primary and backup power source. They have various protections for surge short circuit and overload. The input and output are isolated. |
| Maximum Output Power | 70 W |
| Maximum Output Power | 70 W |
| Product Name | (TP-DCDC-4856G-VHP) 36-72VDC In 56VDC 70W Passive POE Out DCDC |
| Product Name | (TP-DCDC-4856G-VHP) 36-72VDC In 56VDC 70W Passive POE Out DCDC |
| Product Type | PoE Injector |
| Product Type | PoE Injector |
| Protection Type | Short Circuit |
| Protection Type | Over Voltage |
| Protection Type | Over Current |
| Protection Type | Short Circuit |
| Protection Type | Over Voltage |
| Protection Type | Over Current |
| UPC Alternates | 633090396595 |
| UPC Alternates | 633090396595 |
| Width | 3" |
| Width | 3" |
