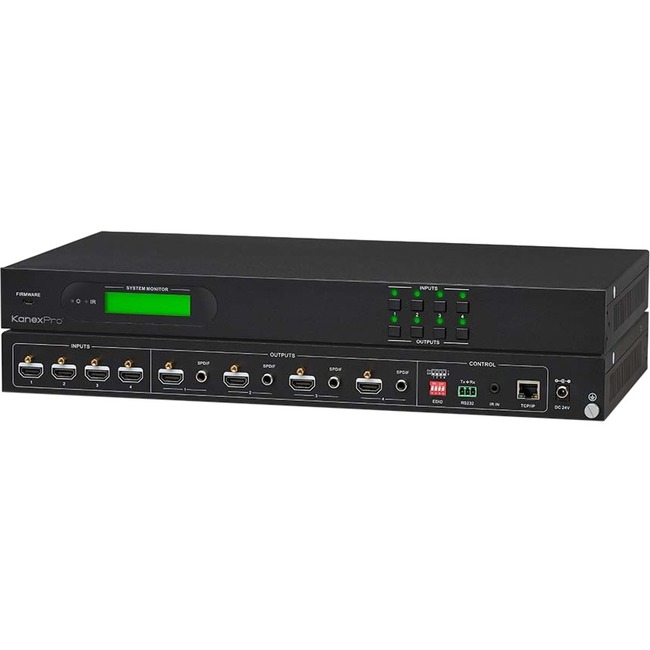

KanexPro Ultra-Fast 4x4 HDMI 2.0 Matrix Switcher with 4K/60Hz - 4096 x 2160 - 4K - 4 x 4 - Display, Computer, Set-top Box, Gaming Console, TV, Projector, Speaker - 4 x HDMI Out
4096 x 2160 - 4K - 4 x 4 - Display, Computer, Set-top Box, Gaming Console, TV, Projector, Speaker - 4 x HDMI Out
| HDMI In | Yes |
| HDMI In | Yes |
| Connectivity technology | Cable |
| Connectivity technology | Cable |
| Depth | 9.3" |
| Depth | 9.3" |
| Device Supported | Computer |
| Device Supported | Display |
| Device Supported | Display |
| Device Supported | Computer |
| Device Supported | Gaming Console |
| Device Supported | TV |
| Device Supported | Gaming Console |
| Device Supported | TV |
| Device Supported | Projector |
| Device Supported | Set-top Box |
| Device Supported | Speaker |
| Device Supported | Speaker |
| Device Supported | Set-top Box |
| Device Supported | Projector |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Graphics Modes | 4K |
| Graphics Modes | 4K |
| Height | 1.7" |
| Height | 1.7" |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | KanexPro |
| Manufacturer | KanexPro |
| Manufacturer Part Number | HDMX44-18G |
| Manufacturer Part Number | HDMX44-18G |
| Manufacturer Website Address | http://www.kanexpro.com |
| Manufacturer Website Address | http://www.kanexpro.com |
| Marketing Information | The KanexPro HDMX44-18G is a professional 4-input 4-output HDMI matrix featuring HDCP 2.2 with the latest HDMI 2.0 specifications supporting ultra HD resolutions up to 4K @60Hz. This matrix switcher supports switching speeds to less then 0.2 seconds and also provides 4-additional audio ports via S/PDIF connectors to support audio de-embedding from HDMI. It can be fully controlled via RS-232 IR and Web based GUI using Ethernet where end-users can switch control and manage the matrix using graphical and visual indicators right from the computer or touch-panel. Industry Standard HDCP 2.2 & 4K/60 HDCP 2.2 authentication is present at all times on this matrix ensuring proper handshake of the protected content. It also maintains resolutions up to 4K- 4096x2160@30 50 or 60Hz 3840x2160@24 2530 50 or 60Hz and 2560x1080@60Hz displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard for all our matrix switchers. Applications: The KanexPro HDMX44-18G matrix switcher is ideal for numerous commercial applications such as military medical and government audio-video environments where swift reliable switching and distribution of high-resolution HDMI signal is critical to meet pixel-by-pixel needs.
Features: - Cross-switch 4 HDMI inputs to 4 HDMI outputs with 4K @60Hz
- Four independent S/PDIF audio for Audio De-embedding from HDMI
- Distribute 4Kx2K@60Hz signal up to 10m
- Supports 4:2:2 color sampling rate with 10 bit HDR
- Supports standard 1080p & WUXGA resolutions up to 2560x1080@60Hz
- HDCP 2.2 Compliant
- Smart EDID DIP switch for proper display output
- Supports latest High Speed HDMI Specifications
- Supports Dolby Digital DTS DTS-HD
- Control thru front-panel keys IR RS-232 & Web based GUI
- Front-panel LCD screen provides real-time I/O connection status
- Firmware upgrade via micro USB port
- 1U (19") rack mountable aluminum enclosure
- Built-in web GUI for control
- Locking HDMI & power supply
- Universal RS-232 code compatible with any 3rd party control systems
- Internal Universal power for worldwide compatibility
|
| Marketing Information | The KanexPro HDMX44-18G is a professional 4-input 4-output HDMI matrix featuring HDCP 2.2 with the latest HDMI 2.0 specifications supporting ultra HD resolutions up to 4K @60Hz. This matrix switcher supports switching speeds to less then 0.2 seconds and also provides 4-additional audio ports via S/PDIF connectors to support audio de-embedding from HDMI. It can be fully controlled via RS-232 IR and Web based GUI using Ethernet where end-users can switch control and manage the matrix using graphical and visual indicators right from the computer or touch-panel. Industry Standard HDCP 2.2 & 4K/60 HDCP 2.2 authentication is present at all times on this matrix ensuring proper handshake of the protected content. It also maintains resolutions up to 4K- 4096x2160@30 50 or 60Hz 3840x2160@24 2530 50 or 60Hz and 2560x1080@60Hz displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard for all our matrix switchers. Applications: The KanexPro HDMX44-18G matrix switcher is ideal for numerous commercial applications such as military medical and government audio-video environments where swift reliable switching and distribution of high-resolution HDMI signal is critical to meet pixel-by-pixel needs.
Features: - Cross-switch 4 HDMI inputs to 4 HDMI outputs with 4K @60Hz
- Four independent S/PDIF audio for Audio De-embedding from HDMI
- Distribute 4Kx2K@60Hz signal up to 10m
- Supports 4:2:2 color sampling rate with 10 bit HDR
- Supports standard 1080p & WUXGA resolutions up to 2560x1080@60Hz
- HDCP 2.2 Compliant
- Smart EDID DIP switch for proper display output
- Supports latest High Speed HDMI Specifications
- Supports Dolby Digital DTS DTS-HD
- Control thru front-panel keys IR RS-232 & Web based GUI
- Front-panel LCD screen provides real-time I/O connection status
- Firmware upgrade via micro USB port
- 1U (19") rack mountable aluminum enclosure
- Built-in web GUI for control
- Locking HDMI & power supply
- Universal RS-232 code compatible with any 3rd party control systems
- Internal Universal power for worldwide compatibility
|
| Maximum Operating Distance | 32.81 ft |
| Maximum Operating Distance | 32.81 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Maximum Video Resolution | 4096 x 2160 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Inputs | 4 |
| Number of USB Ports | 1 |
| Number of USB Ports | 1 |
| Product Name | Ultra-Fast 4x4 HDMI 2.0 Matrix Switcher with 4K/60Hz |
| Product Name | Ultra-Fast 4x4 HDMI 2.0 Matrix Switcher with 4K/60Hz |
| Product Type | Audio/Video Switchbox |
| Product Type | Audio/Video Switchbox |
| UPC Alternates | 813982021389 |
| UPC Alternates | 813982021389 |
| Weight (Approximate) | 2.57 lb |
| Weight (Approximate) | 2.57 lb |
| Width | 19" |
| Width | 19" |
