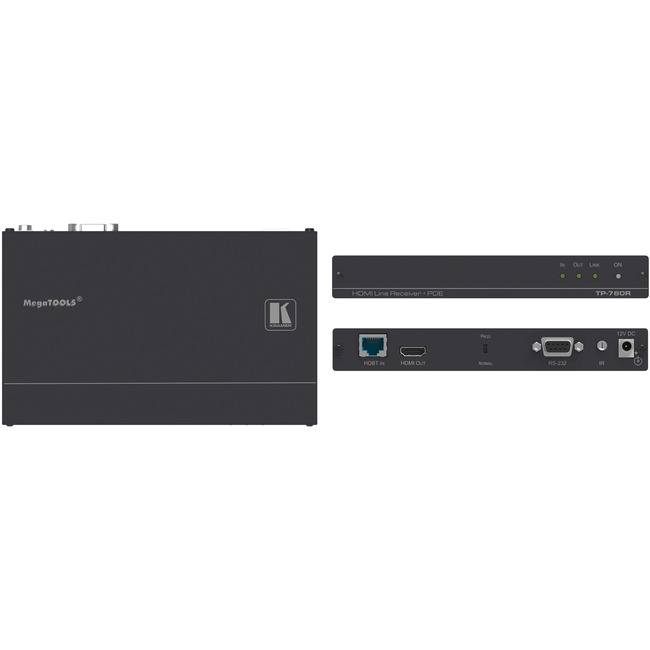

Kramer 4K60 4:2:0 HDMI HDCP 2.2 PoE Receiver with RS-232 & IR over Long-Reach HDBaseT - 1 Output Device - 130 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Rack-mountable
1 Output Device - 130 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Rack-mountable
| Network (RJ-45) | Yes |
| Receiver Depth | 4.53" |
| Receiver Height | 1" |
| Receiver Weight (Approximate) | 14.40 oz |
| Receiver Width | 7.38" |
| Brand Name | Kramer |
| Connectivity technology | Wired |
| Form factor | Rack-mountable |
| Graphics Modes | 4K |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Marketing Information | TP-780R is a high-performance long-reach HDBaseT receiver for 4K60Hz (4:2:0) HDMI RS-232 and IR signals over twisted pair. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. - High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. TP-780R is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance use recommended Kramer cables.
- HDMI Signal Extension - HDMI 2.0 and HDCP 2.2 compliant. Supports deep color x.v.Color™ lip sync HDMI uncompressed audio channels Dolby TrueHD DTS-HD 2K 4K and 3D. EDID and CEC signals are passed through from the source to the display.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
- Bidirectional RS-232 Extension - Serial interface data flows in both directions allowing data transmission and device control.
- Bidirectional Infrared Extension - IR interface data flows in both directions allowing remote control of peripheral devices located at either end of the extended line.
- Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting field-proven deployment.
- Easy and Elegant Installation - Single cable connectivity for both HDBaseT signals and power. Compact MegaTOOLS™ fan-less enclosure for dropped-ceiling mounting or side-by-side mounting of 2 units in a 1U rack space with the optional RK-T2B rack adapter.
|
| Maximum Operating Distance | 130 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 1 |
| Product Line | MegaTOOLS |
| Product Model | TP-780R |
| Product Name | 4K60 4:2:0 HDMI HDCP 2.2 PoE Receiver with RS-232 & IR over Long-Reach HDBaseT |
| Product Type | Video Extender Receiver |
