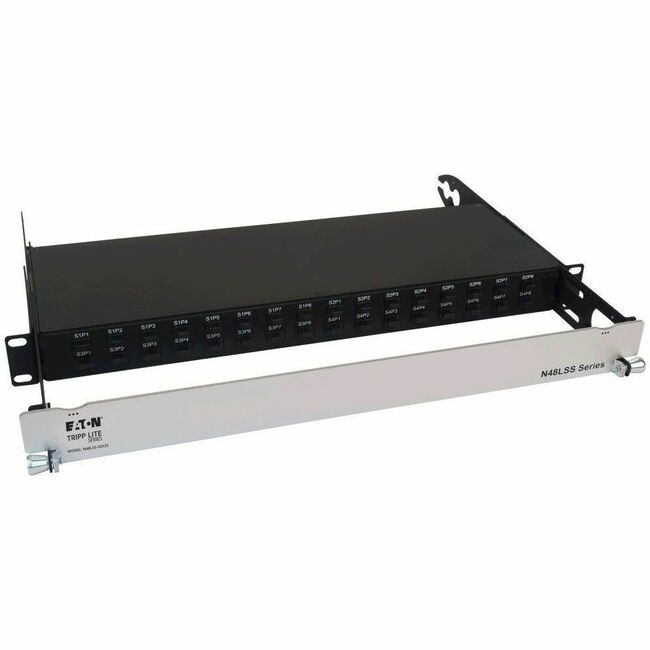

Tripp Lite N48LSS-32X32 Spine-Leaf MPO Panel, 32 x 32 Ports, 1U - 64 Port(s) - 1U High - Black - 19" Wide - Rack-mountable
64 Port(s) - 1U High - Black - 19" Wide - Rack-mountable
| Compatible Rack Unit | 1U |
| Compatible Rack Width | 19" |
| Product Material | Aluminum |
| Shipping Depth | 15.10" |
| Shipping Height | 3.50" |
| Shipping Width | 21" |
| Additional Information | OVERVIEW - Technology Fiber
- Optical Mode OS2
- Fiber Panel Ports (64) MTP/MPO
- Mode Type Singlemode
Firmware / Software Docs PHYSICAL - Clad Diameter (microns) 125
- Core Diameter (microns) 9
- Number of Fibers 8
COMMUNICATIONS - Network Compatibility 100 Gbps; 40 Gbps; 400 Gbps
- Wavelength 1310nm; 1550nm
- Attenuation @ 1310NM 0.36dB/KM
- Attenuation @ 1550NM 0.22dB/KM
- Insertion Loss ?0.70dB
CONNECTIONS - Side A - Connector 1 (32) 12-STRAND MTP/MPO (MALE)
- Side B - Connector 1 (32) 12-STRAND MTP/MPO (MALE)
- Endface Polish APC
- Connector Color Black
FEATURES & SPECIFICATIONS - Keystone Jacks No
- All-in-One Kit Yes
- Down-Angled Ports No
- Built-in Cables Yes
- Color-Coded Connections No
- Numbered Ports Yes
- EIA/TIA 2/32 Spacing No
- Labeled Ports Yes
- Network Speed Support 100 Gbps; 40 Gbps; 400 Gbps
- Optical Port MPO/MTP
- Breakout No
- Trunk No
|
| Brand Name | Tripp Lite |
| Certifications & Standards | CE |
| Country of origin | China |
| Depth | 10.2" |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Limited Warranty | Lifetime |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | N48LSS-32X32 |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | 1U network panel replaces a standard MTP/MPO-to-LC cross-connect with MTP/MPO ports to eliminate rack clutter.
1U Spine-Leaf Panel Simplifies Your Rack Connections and Helps You Keep Costs Down
This network patch panel is designed for spine-and-leaf architecture which replaces a standard MTP/MPO-to-LC cross-connect with MTP/MPO ports and helps eliminate significant rack clutter. This data center network technology provides high-bandwidth low-latency non-blocking server-to-server connectivity which saves you money simplifies your rack cabling and improves network performance. All-in-One Solution Consists of 2 Switch Layers: Spine and Leaf
The groundbreaking N48LSS-32X32 contains a complete spine-and-leaf mesh topology resulting in less labor less troubleshooting and fewer errors. It features spine ports in the front that mate with a spine switch as well as leaf ports in the rear that mate with a leaf switch. No LC-to-LC patching double cassette or user cable shuffling is required with spine-and-leaf architecture which improves link performance. Easy to Mount in Just 1U of Rack Space
This aluminum panel with key-up to key-down MTP/MPO adapter features 64 12-fiber MTP/MPO-APC male ports: 32 front spine ports and 32 rear leaf ports. The N48LSS-32X32 mounts into 1U of space in an EIA-standard 19-inch rack. Cable managers in both front and rear help organize cabling and eliminate unsightly clutter. |
| Package Contents | - N48LSS-32X32 Spine-Leaf MPO Panel 32 x 32 Ports 1U
- Owner's Manual
|
| Product color | Black |
| Product Line | Spine-Leaf |
| Product Name | N48LSS-32X32 Spine-Leaf MPO Panel 32 x 32 Ports 1U |
| Product Type | Network Patch Panel |
| Shipping Weight (Approximate) | 8.10 lb |
| Total Number of Ports | 64 |
| UPC Alternates | 037332268792 |
| Width | 17.3" |
