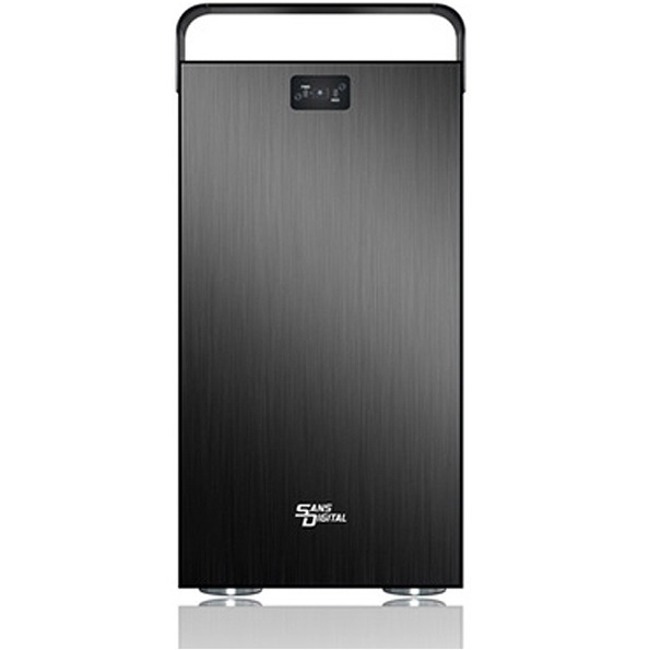

Sans Digital MobileSTOR MS8X12+B Drive Enclosure - SAS Host Interface Tower - Black - 8 x HDD Supported - 48 TB Total HDD Capacity Supported - 8 x SSD Supported - 8 x Total Bay - 8 x 3.5" Bay
8 x HDD Supported - 48 TB Total HDD Capacity Supported - 8 x SSD Supported - 8 x Total Bay - 8 x 3.5" Bay
| Maximum Power Supply Wattage | 300 W |
| Non-RAID Mode | JBOD |
| Total Hard Drive Capacity Supported | 48 TB |
| Certifications & Standards | |
| Controller Type | 12Gb/s SAS |
| Controller Type | Serial ATA/600 |
| Country of origin | Taiwan |
| Depth | 13" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Tower |
| Height | 15.5" |
| Host interface | SAS |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 1 Year |
| Manufacturer | Sans Digital |
| Manufacturer Part Number | KT-MS8X12 |
| Manufacturer Website Address | http://www.sansdigital.com |
| Marketing Information | The MobileSTOR MS8X12 series is an 8 bay mini-SAS HD (SFF-8644) SAS expander tower comprised of the same engines as the AccuSTOR / EliteSTOR enterprise level rackmount storage. Utilizing the same engine structure as the enterprise level rackmounts the MobileSTOR utilize 12G SAS expander technology and provides up to 48 Gb/s or 4800MB/s of data bandwidth to fulfill the most demanding application. The MS8X12 supports both SATA 6Gb/s or SAS 6Gb/s and 12Gb/s solid state drives and hard drives and is backward compatible to 3Gb/s SAS & SATA SSD and HDDs. By utilizing the latest 12G SAS expander technology the MS8X12 supports up to 8 SAS or SATA drives using only one mini-SAS HD (SFF-8644) cable. A built-in SAS expansion port enables the system to connect up to 8 units or 64 drives daisy-chained together. With a high performance RAID controller card such as Areca ATTO Highpoint and LSI 6G and 12G RAID controller the MS8X12 is capable of delivering over 3000MB/s in read/write performance with RAID controller doubling the existing 6G SAS expander bandwidth. Drives status information is provided by the LED. All necessary hardware comes standard including mini-SAS HD cable hot-swappable cooling fan and hard drives tray modules. The MS8X12 is an ideal storage expansion solution for servers or high performance video editing workstations.
NEW DataBolt™ Technology Maximize 6Gb/s and 3Gb/s hard drives and SSD in 12G performance
To allow 6Gb/s and 3Gb/s hard drives and SSD transit to newer 12G standard and performance EliteSTOR SAS expander equipped with LSI DataBolt™ technology allow existing of 6G and 3G hard drives and SSD infrastructure to take advantage of 12Gb/s speed. Only available in 12G SAS expander series LSI DataBolt™ technology can aggregate bandwidth from 6Gb/s and 3Gb/s hard disk drives and SSD to a 12Gb/s data stream by intelligently buffering data resulting in over 50% increase. DataBolt™ technology is fully compatible with the 12Gb/s SAS T10 specification. |
| Number of Total Expansion Bays | 8 |
| Package Contents | - MobileSTOR MS8X12 - 8 Bay SATA/SAS to 12G SAS Expander JBOD Enclosure (Black)
- 8 x Removable Tray Modules
- 1 x Power Cord
- 1 x Mini-SAS HD Cable
- 1 x Quick Installation Manual & CD
- Buil-in Mounting Rail
- Cooling Fan
|
| Packaged Quantity | 1 |
| Power source | Power Supply |
| Product color | Black |
| Product Line | MobileSTOR |
| Product Model | MS8X12+B |
| Product Name | MobileSTOR MS8X12 - 8 Bay SATA/SAS to 12G SAS Expander JBOD Enclosure (Black) |
| Product Type | Drive Enclosure |
| UPC Alternates | 739410735904 |
| Weight (Approximate) | 20 lb |
| Width | 8" |
| Wireless LAN | No |
