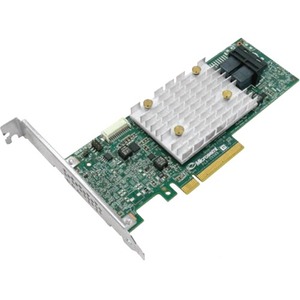

Microchip Adaptec SmartHBA 2100-8i Single - 12Gb/s SAS - PCI Express 3.0 x8 - Plug-in Card - RAID Supported - 0, 1, 10, 5 RAID Level - 2 x SFF-8643 - 8 Total SAS Port(s) - 8 SAS Port(s) Internal - PC, Linux
12Gb/s SAS - PCI Express 3.0 x8 - Plug-in Card - RAID Supported - 0, 1, 10, 5 RAID Level - 2 x SFF-8643 - 8 Total SAS Port(s) - 8 SAS Port(s) Internal - PC, Linux
| SAS Connector Details | 2 x SFF-8643 |
| Total Number of SAS Ports | 8 |
| Brand Name | Microchip Adaptec |
| Controller Type | 12Gb/s SAS |
| Country of origin | Singapore |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Plug-in Card |
| Height | 2.5" |
| Host interface | PCI Express 3.0 x8 |
| Limited Warranty | 3 Year |
| Manufacturer | Microchip Technology Inc. |
| Manufacturer Part Number | 2290400-R |
| Manufacturer Website Address | http://www.microchip.com |
| Marketing Information | The 12 Gbps Adaptec SmartHBA 2100-8i Host Bus Adapter has 8 internal SAS/SATA ports in a x8 PCIe Gen 3 low-profile MD2 form factor and uniquely combines the capabilities of a full-featured host bus adapter (HBA) with those of a basic RAID adapter using hardware RAID. Built on the Microchip SmartIOC 2100 SAS/SATA protocol controller HBA 2100 adapters can aggregate the performance of devices to the limits of the PCIe Gen 3 host bus at 6.6 Gbps and achieve up to 1.5M IOPS without additional overhead or latency. The HBA 2100 adapters also have 40 percent power savings compared to previous generations and significant power advantages versus competing solutions.
The HBA 2100 with its broad operating system support and ecosystem compatibility is easy to implement and scale and the unified maxView management tools and drivers across the Microchip HBA RAID and expander solutions enable easy manageability across the entire product line. HBA 2100 adapters are ideal solutions that support SAS/SATA HDDs tape devices and SSDs. |
| Package Contents | - SmartHBA 2100-8i Single
- Additional Low Profile Vented Bracket
|
| Platform Supported | PC |
| Platform Supported | Linux |
| Product Line | SmartHBA |
| Product Model | AHA-2100-8i |
| Product Name | SmartHBA 2100-8i Single |
| Product Series | 2100 |
| Product Type | SAS Controller |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| UPC Alternates | 760884157671 |
| Weight (Approximate) | 14.11 oz |
| Width | 6.6" |
