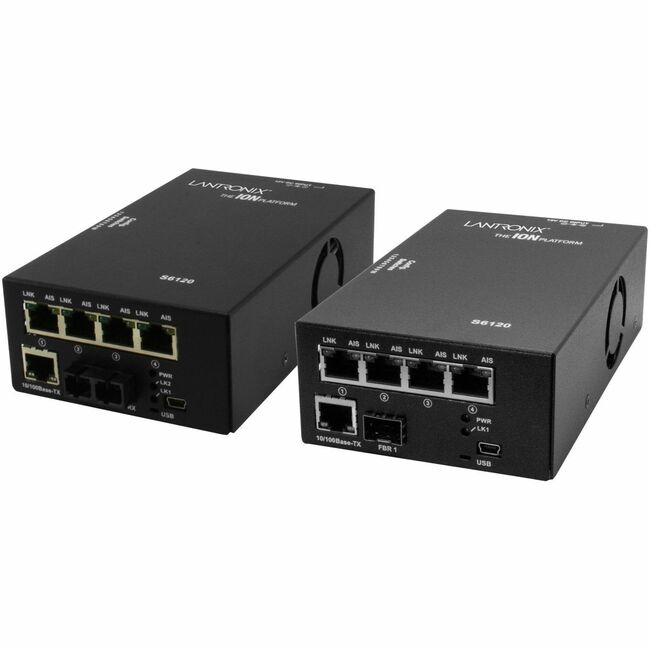

Transition Networks S6120-1040 Interface Module - For Optical Network, Data Networking - 4 x RJ-48 T1/E1/J1 Network, 1 x RJ-45 10/100Base-TX LAN - Optical Fiber, Twisted PairFast Ethernet - T1/E1/J1, 100Base-TX, 100Base-X/OC-31 x Expansion Slots - SFP
For Optical Network, Data Networking - 4 x RJ-48 T1/E1/J1 Network, 1 x RJ-45 10/100Base-TX LAN - Optical Fiber, Twisted PairFast Ethernet - T1/E1/J1, 100Base-TX, 100Base-X/OC-31 x Expansion Slots - SFP
| Interfaces/Ports Details | 1 x RJ-45 10/100Base-TX LAN |
| Interfaces/Ports Details | 4 x RJ-48 T1/E1/J1 Network |
| Interfaces/Ports Details | 4 x RJ-48 T1/E1/J1 Network |
| Interfaces/Ports Details | 1 x RJ-45 10/100Base-TX LAN |
| Number of Total Expansion Slots | 1 |
| Number of Total Expansion Slots | 1 |
| Application/Usage | Data Networking |
| Application/Usage | Optical Network |
| Application/Usage | Data Networking |
| Application/Usage | Optical Network |
| Brand Name | Transition Networks |
| Brand Name | Transition Networks |
| Compatibility | Transition Networks ION Chassis |
| Compatibility | Transition Networks ION Chassis |
| Connector Type | RJ-45 |
| Connector Type | RJ-48 |
| Connector Type | RJ-45 |
| Connector Type | RJ-48 |
| Country of origin | United States |
| Country of origin | United States |
| Depth | 6.5" |
| Depth | 6.5" |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Fast Ethernet |
| Expansion Slot Type | SFP |
| Expansion Slot Type | SFP |
| Height | 1.8" |
| Height | 1.8" |
| Limited Warranty | Lifetime |
| Limited Warranty | Lifetime |
| Manufacturer | Transition Networks Inc |
| Manufacturer | Transition Networks Inc |
| Manufacturer Part Number | S6120-1040-NA |
| Manufacturer Part Number | S6120-1040-NA |
| Manufacturer Website Address | http://www.transition.com |
| Manufacturer Website Address | http://www.transition.com |
| Marketing Information | The ION 4 x T1/E1/J1 copper to fiber network interface device (NID) provides a solution for those users that need to extend multiple T1/E1/J1 connections and 10/100Mbps Ethernet over fiber.
The ION 4 x T1/E1/J1 supports Small Form Pluggable (SFP) transceivers to support a variety of fiber types distances and wavelengths to provide maximum flexibility across a variety of network topologies.
The use of Coarse Wave Division Multiplexing (CWDM) SFPs can be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The ION 4 x T1/E1/J1 NID must be used in pairs. A typical installation will include a chassis card installed in the ION Platform locally and a stand-alone device installed at the remote location.
|
| Marketing Information | The ION 4 x T1/E1/J1 copper to fiber network interface device (NID) provides a solution for those users that need to extend multiple T1/E1/J1 connections and 10/100Mbps Ethernet over fiber.
The ION 4 x T1/E1/J1 supports Small Form Pluggable (SFP) transceivers to support a variety of fiber types distances and wavelengths to provide maximum flexibility across a variety of network topologies.
The use of Coarse Wave Division Multiplexing (CWDM) SFPs can be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The ION 4 x T1/E1/J1 NID must be used in pairs. A typical installation will include a chassis card installed in the ION Platform locally and a stand-alone device installed at the remote location.
|
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 100Base-TX |
| Network Technology | 100Base-X/OC-3 |
| Network Technology | 100Base-TX |
| Network Technology | 100Base-X/OC-3 |
| Network Technology | T1/E1/J1 |
| Network Technology | T1/E1/J1 |
| Package Contents | - S6120-1040 Interface Module
- Power Supply
|
| Package Contents | - S6120-1040 Interface Module
- Power Supply
|
| Product Model | S6120-1040 |
| Product Model | S6120-1040 |
| Product Name | S6120-1040 Interface Module |
| Product Name | S6120-1040 Interface Module |
| Product Series | S6120 |
| Product Series | S6120 |
| Product Type | Interface Module |
| Product Type | Interface Module |
| Total Number of Ports | 5 |
| Total Number of Ports | 5 |
| UPC Alternates | 648177034864 |
| UPC Alternates | 648177034864 |
| Weight (Approximate) | 2 lb |
| Weight (Approximate) | 2 lb |
| Width | 3.7" |
| Width | 3.7" |
