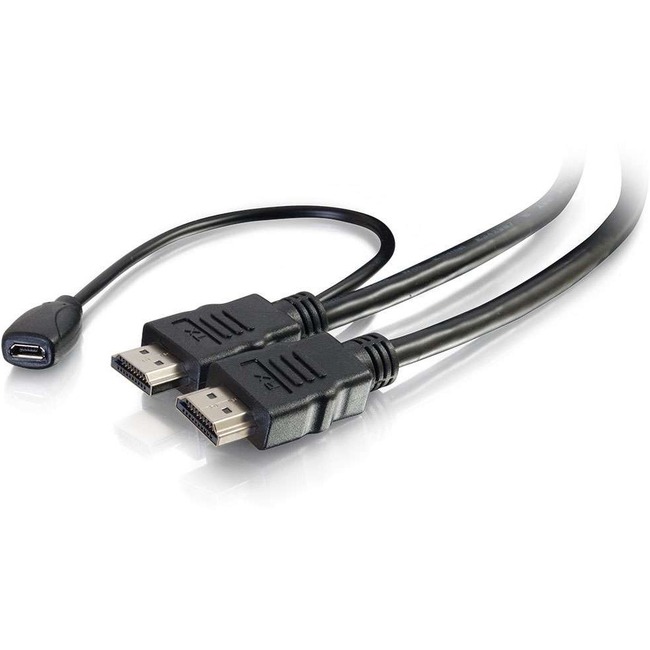

C2G 10ft High Speed HDMI Cable with Built-In Power Inserter - 4K 60Hz - 10 ft HDMI A/V Cable for Switch, Transmitter, Set-top Box, Audio/Video Device, Media Player - First End: 1 x HDMI Male Digital Audio/Video - Second End: 1 x HDMI Male Digital Audio/Video, Second End: 1 x Type A Male USB - 18 Gbit/s - Extension Cable - Shielding - Gold, Nickel Plated Connector - 30 AWG - Black
10 ft HDMI A/V Cable for Switch, Transmitter, Set-top Box, Audio/Video Device, Media Player - First End: 1 x HDMI Male Digital Audio/Video - Second End: 1 x HDMI Male Digital Audio/Video, Second End: 1 x Type A Male USB - 18 Gbit/s - Extension Cable - Shielding - Gold, Nickel Plated Connector - 30 AWG - Black
| Connector on First End Details | 1 x HDMI Digital Audio/Video - Male |
| Connector on Second End Details | 1 x USB Type A - Male |
| Connector Type on First End | HDMI Digital Audio/Video - Male |
| Connector Type on Second End | USB Type A - Male |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| American Wire Gauge | 30 AWG |
| American Wire Gauge | 30 AWG |
| Cable Characteristic | Extension Cable |
| Cable Characteristic | Extension Cable |
| Cable length | 10 ft |
| Cable length | 10 ft |
| Cable type | HDMI |
| Cable type | HDMI |
| Color | Black |
| Color | Black |
| Connector on First End | HDMI Male Digital Audio/Video |
| Connector on First End | 1 x HDMI Male Digital Audio/Video |
| Connector on First End | HDMI Male Digital Audio/Video |
| Connector on First End | 1 x HDMI Male Digital Audio/Video |
| Connector on Second End | Type A Male USB |
| Connector on Second End | 1 x Type A Male USB |
| Connector on Second End | Type A Male USB |
| Connector on Second End | 1 x Type A Male USB |
| Connector Plating | Gold |
| Connector Plating | Nickel |
| Connector Plating | Nickel |
| Connector Plating | Gold |
| Country of origin | China |
| Country of origin | China |
| Data transfer rate | 18 Gbit/s |
| Data transfer rate | 18 Gbit/s |
| Device Supported | Set-top Box |
| Device Supported | Set-top Box |
| Device Supported | Media Player |
| Device Supported | Audio/Video Device |
| Device Supported | Transmitter |
| Device Supported | Switch |
| Device Supported | Transmitter |
| Device Supported | Switch |
| Device Supported | Audio/Video Device |
| Device Supported | Media Player |
| Environmental Certification | EU RoHS |
| Environmental Certification | RoHS 2 |
| Environmental Certification | RoHS 2 |
| Environmental Certification | EU RoHS |
| Features | Extended Display Identification Data (EDID) |
| Features | Active |
| Features | Extended Display Identification Data (EDID) |
| Features | Active |
| Limited Warranty | Lifetime |
| Limited Warranty | Lifetime |
| Manufacturer | C2G |
| Manufacturer | C2G |
| Manufacturer Part Number | 56791 |
| Manufacturer Part Number | 56791 |
| Manufacturer Website Address | http://www.cablestogo.com |
| Manufacturer Website Address | http://www.cablestogo.com |
| Marketing Information | "The High Speed HDMI Cable with Built-In Power Inserter supports all HDMI 2.0 features and is the ideal solution for supporting HDMI bus-powered devices such as extenders active cables AOC cables or signal-sensing switches. This cable eliminates the need for separate voltage inserters or adapters which increases reliability.
The power supplies associated with source devices such as computers teleconferencing codecs media players and set-top boxes are designed according to HDMI standards to deliver a 55mA hot plug supply. When an accessory demands more current than the source can supply the system may fail to operate dependably. Insufficient power may manifest as a flashing image (HDCP problem) distorted video (EDID related issues) or even a complete loss of the image (hot plug assertion failure). The HDMI Cable with Built-In Power Inserter allows for the necessary and proper voltages for the hardware "handshake" HDCP key authentication and exchange EDID information exchange and hot plug connection detect.
The attached power inserter isolates the power from the source device and provides dedicated power to support HDMI switching splitting and extension accessories. If an installation leverages active cables with embedded chipsets embedded electronic-to-optical media conversion signal-sensing auto-switching or similar devices then this power inserter will be a critical performance element.
Note: For proper use of this cable the USB Micro-B female connector must be attached to a power source. The cable is directional with a Source/Transmitter (TX) side and a Display/Receiver (RX) side. The cable and HDMI connectors are marked with TX and RX for added convenience. " |
| Marketing Information | "The High Speed HDMI Cable with Built-In Power Inserter supports all HDMI 2.0 features and is the ideal solution for supporting HDMI bus-powered devices such as extenders active cables AOC cables or signal-sensing switches. This cable eliminates the need for separate voltage inserters or adapters which increases reliability.
The power supplies associated with source devices such as computers teleconferencing codecs media players and set-top boxes are designed according to HDMI standards to deliver a 55mA hot plug supply. When an accessory demands more current than the source can supply the system may fail to operate dependably. Insufficient power may manifest as a flashing image (HDCP problem) distorted video (EDID related issues) or even a complete loss of the image (hot plug assertion failure). The HDMI Cable with Built-In Power Inserter allows for the necessary and proper voltages for the hardware "handshake" HDCP key authentication and exchange EDID information exchange and hot plug connection detect.
The attached power inserter isolates the power from the source device and provides dedicated power to support HDMI switching splitting and extension accessories. If an installation leverages active cables with embedded chipsets embedded electronic-to-optical media conversion signal-sensing auto-switching or similar devices then this power inserter will be a critical performance element.
Note: For proper use of this cable the USB Micro-B female connector must be attached to a power source. The cable is directional with a Source/Transmitter (TX) side and a Display/Receiver (RX) side. The cable and HDMI connectors are marked with TX and RX for added convenience. " |
| Package Contents | - 10ft High Speed HDMI Cable with Built-In Power Inserter 4K60
- USB-A Male to USB Micro-B Male Cable
|
| Package Contents | - 10ft High Speed HDMI Cable with Built-In Power Inserter 4K60
- USB-A Male to USB Micro-B Male Cable
|
| Product color | Black |
| Product Name | 10ft High Speed HDMI Cable with Built-In Power Inserter - 4K 60Hz |
| Product Name | 10ft High Speed HDMI Cable with Built-In Power Inserter - 4K 60Hz |
| Product Type | A/V Cable |
| Product Type | A/V Cable |
| Shielding | Yes |
| Shielding | Yes |
| UPC Alternates | 757120567912 |
| UPC Alternates | 757120567912 |
| Weight (Approximate) | 0.33 lb |
| Weight (Approximate) | 0.33 lb |
