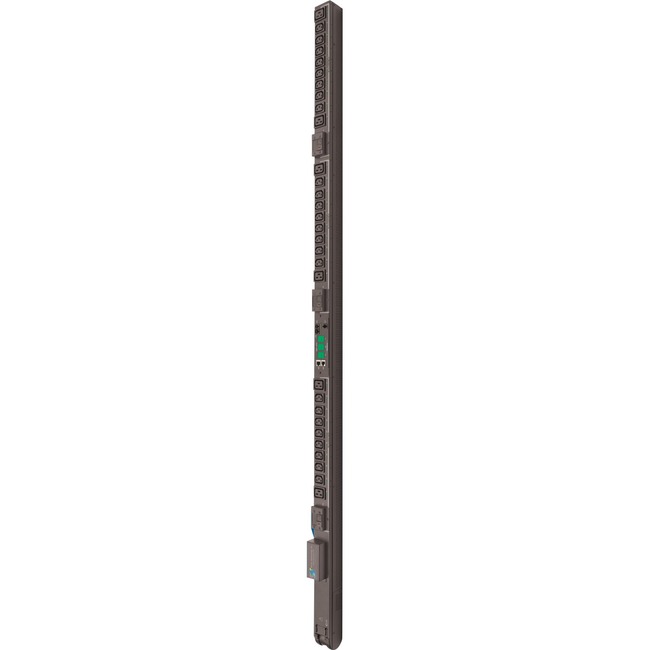

Server Technology Switched STV-4502E 30-Outlet PDU - Switched - NEMA L15-30P - 24 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - Rack-mountable
Switched - NEMA L15-30P - 24 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - Rack-mountable
| PDU Type | Switched |
| Receptacle Detail | 24 x IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Brand Name | Server Technology |
| Country of origin | United States |
| Depth | 2.3" |
| Environmental Certification | cTUVus |
| Environmentally Friendly | Yes |
| Height | 69" |
| Input current | 30 A |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Management | - HTTP/HTTPS
- TLSv1
- SSHv2
- Telnet
- SNMPv2c and v3 (GET SET Traps)
- IPv4 and IPv6
- LDAPv3/LDAPS
- TACACS+
- RADIUS
- FTP/SFTP
|
| Manufacturer | Server Technology Inc |
| Manufacturer Part Number | STV-4502E |
| Manufacturer Website Address | http://www.servertech.com |
| Marketing Information | The Server Technology® PRO2 Switched PDU provides control of outlet power and local LED input current monitoring allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current voltage active power apparent power power factor crest factor and accumulated energy at the input. These power data points along with temperature and humidity measurements (provided via optional probes) are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched "Master" PDU can be connected to as many as three (with optional module) PRO2 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration. |
| Mount Type | Rack-mountable |
| Output voltage | 208 V AC |
| Package Contents | - Switched STV-4502E 30-Outlet PDU
- 1 x Probe
- Mounting Brackets (Buttons)
|
| Plug/Connector Type | NEMA L15-30P |
| Product Name | Switched STV-4502E 30-Outlet PDU |
| Product Series | PRO2 |
| Product Type | PDU |
| Protection Type | Circuit Protection |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| Width | 2.2" |
