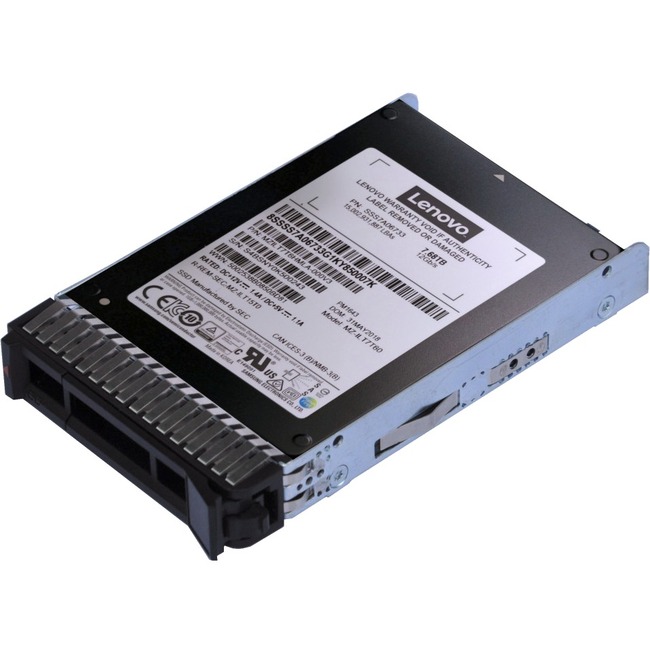

Lenovo PM1643a 1.92 TB Solid State Drive - 2.5" Internal - SAS (12Gb/s SAS) - Read Intensive - Server Device Supported - 1 DWPD - 3504 TB TBW - 1000 MB/s Maximum Read Transfer Rate - Hot Swappable - 1 Year Warranty
Server Device Supported - 1 DWPD - 3504 TB TBW - 1000 MB/s Maximum Read Transfer Rate - Hot Swappable - 1 Year Warranty
| Endurance (DWPD) | 1 |
| Endurance (DWPD) | 1 |
| Endurance Type | Read Intensive |
| Endurance Type | Read Intensive |
| Brand Name | Lenovo |
| Brand Name | Lenovo |
| Compatibility | Lenovo ThinkSystem Servers: - ST550 (7X09/7X10)
- SR530 (7X07/7X08)
- SR550 (7X03/7X04)
- SR570 (7Y02/7Y03)
- SR590 (7X98/7X99)
- SR630 (7X01/7X02)
- SR650 (7X05/7X06)
- SR635 (7Y98/7Y99)
- SR655 (7Y00/7Z01)
- SR850 (7X18/7X19)
- SR850P (7D2F/2D2G)
- SR860 (7X69/7X70)
- SR950 (7X11/12/13)
- SD530 (7X21)
- SN550 (7X16)
- SN850 (7X15)
|
| Compatibility | Lenovo ThinkSystem Servers: - ST550 (7X09/7X10)
- SR530 (7X07/7X08)
- SR550 (7X03/7X04)
- SR570 (7Y02/7Y03)
- SR590 (7X98/7X99)
- SR630 (7X01/7X02)
- SR650 (7X05/7X06)
- SR635 (7Y98/7Y99)
- SR655 (7Y00/7Z01)
- SR850 (7X18/7X19)
- SR850P (7D2F/2D2G)
- SR860 (7X69/7X70)
- SR950 (7X11/12/13)
- SD530 (7X21)
- SN550 (7X16)
- SN850 (7X15)
|
| Depth | 3.9" |
| Depth | 3.9" |
| Device Supported | Server |
| Device Supported | Server |
| Drive Interface | SAS |
| Drive Interface | SAS |
| Drive Interface Standard | 12Gb/s SAS |
| Drive Interface Standard | 12Gb/s SAS |
| Drive Type | Internal |
| Drive Type | Internal |
| Endurance (TBW) | 3504 TB |
| Endurance (TBW) | 3504 TB |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Form factor | 2.5" |
| Form factor | 2.5" |
| Height | 0.6" |
| Height | 0.6" |
| Hot Swappable | Yes |
| Hot Swappable | Yes |
| Limited Warranty | 1 Year |
| Limited Warranty | 1 Year |
| Manufacturer | Lenovo Group Limited |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 4XB7A38176 |
| Manufacturer Part Number | 4XB7A38176 |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Marketing Information | The ThinkSystem PM1643a Entry SAS 12Gb solid-state drives (SSDs) are next-generation SSDs suitable for a wide range of applications. The PM1643a SAS SSDs are designed for dense storage and with a 12 Gb SAS interface these drives feature all the capacity and performance that is needed to replace large numbers of 15K rpm and 10K rpm spinning disks and consolidate storage into tightly packed server configurations. The PM1643a SSDs are the follow-on to the PM1643 SSDs and offer improved random write performance. |
| Marketing Information | The ThinkSystem PM1643a Entry SAS 12Gb solid-state drives (SSDs) are next-generation SSDs suitable for a wide range of applications. The PM1643a SAS SSDs are designed for dense storage and with a 12 Gb SAS interface these drives feature all the capacity and performance that is needed to replace large numbers of 15K rpm and 10K rpm spinning disks and consolidate storage into tightly packed server configurations. The PM1643a SSDs are the follow-on to the PM1643 SSDs and offer improved random write performance. |
| Maximum Read Transfer Rate | 1000 MB/s |
| Maximum Read Transfer Rate | 1000 MB/s |
| Operating Power Consumption | 12 W |
| Operating Power Consumption | 12 W |
| Product Name | ThinkSystem 2.5" PM1643a 1.92TB Entry SAS 12Gb Hot Swap SSD |
| Product Name | ThinkSystem 2.5" PM1643a 1.92TB Entry SAS 12Gb Hot Swap SSD |
| Product Series | PM1643a |
| Product Series | PM1643a |
| Product Type | Solid State Drive |
| Product Type | Solid State Drive |
| Storage Capacity | 1.92 TB |
| Storage Capacity | 1.92 TB |
| UPC Alternates | 889488506095 |
| UPC Alternates | 889488506095 |
| Weight (Approximate) | 5.57 oz |
| Weight (Approximate) | 5.57 oz |
| Width | 2.8" |
| Width | 2.8" |
| Wireless LAN | No |
| Wireless LAN | No |
