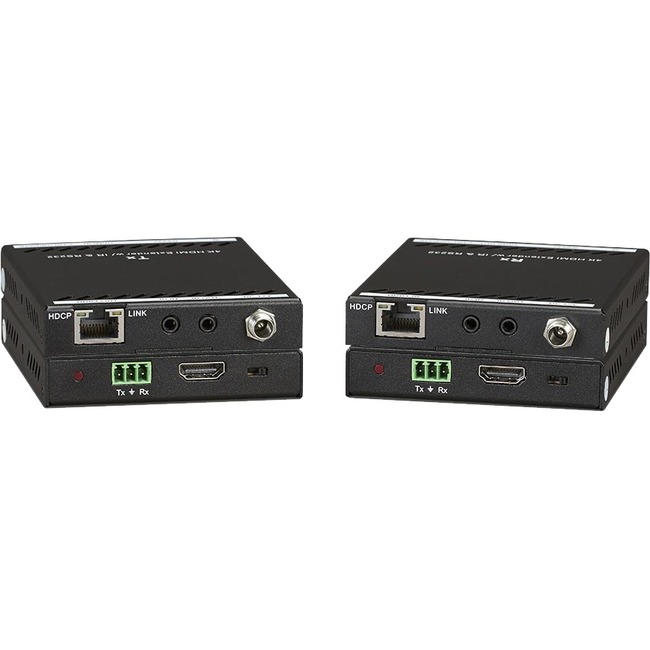

KanexPro 4K/30 HDMI Extender over HDBaseT - 1 Input Device - 1 Output Device - 229.66 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable
1 Input Device - 1 Output Device - 229.66 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable
| Network (RJ-45) | Yes |
| Transmitter Depth | 3.30" |
| Transmitter Height | 0.60" |
| Transmitter Weight (Approximate) | 8.80 oz |
| Transmitter Width | 4.17" |
| Connectivity technology | Wired |
| Form factor | Rack-mountable |
| Graphics Modes | 4K |
| Limited Warranty | 3 Year |
| Manufacturer | KanexPro |
| Manufacturer Part Number | EXT-HDBT70C |
| Manufacturer Website Address | http://www.kanexpro.com |
| Marketing Information | The KanexPro EXT-HDBT70C is an HDCP 2.2 compliant extender set consisting of a transmitter and receiver. It uses HDBaseT technology to transmit uncompressed high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at a distance of up to 70/40m. Moreover the extender set supports PoC (power over cable) from either side of the sender or receiver CEC bi- directional RS232 & IR control. Applications Perfect for extending and routing digital signage applications healthcare AV control rooms educational facilities airports commanding centers and home theater. Please note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals. |
| Maximum Operating Distance | 229.66 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents | - 1 x Transmitter
- 1 x Receiver
- Mounting Ears
- 1 x Locking Power Supply
|
| Product Name | 4K/30 HDMI Extender over HDBaseT |
| Product Type | Video Extender Transmitter/Receiver |
| Twisted Pair Cable Standard | Category 6a |
| UPC Alternates | 813982021624 817217371379 |
