Taoglas MA1506 Antenna - -7.3 dBi - GLONASS, Wireless Data Network, GPS, Outdoor, VehicleAdhesive/Roof - SMA, RP-SMA Connector
-7.3 dBi - GLONASS, Wireless Data Network, GPS, Outdoor, VehicleAdhesive/Roof - SMA, RP-SMA Connector
| Antenna Gain | -7.3 dBi |
| Application/Usage | Vehicle |
| Application/Usage | Outdoor |
| Application/Usage | Wireless Data Network |
| Application/Usage | GPS |
| Application/Usage | GLONASS |
| Connector Type | RP-SMA |
| Connector Type | SMA |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmental Certification | EU RoHS |
| Environmentally Friendly | Yes |
| Form factor | Adhesive/Roof |
| Height | 2.26" |
| Manufacturer | Taoglas |
| Manufacturer Part Number | MA1506.AK.001 |
| Manufacturer Website Address | http://www.taoglas.com |
| Marketing Information | MA1506.AK.001 - Synergy 6-in-1 Next-Generation Combination Antenna

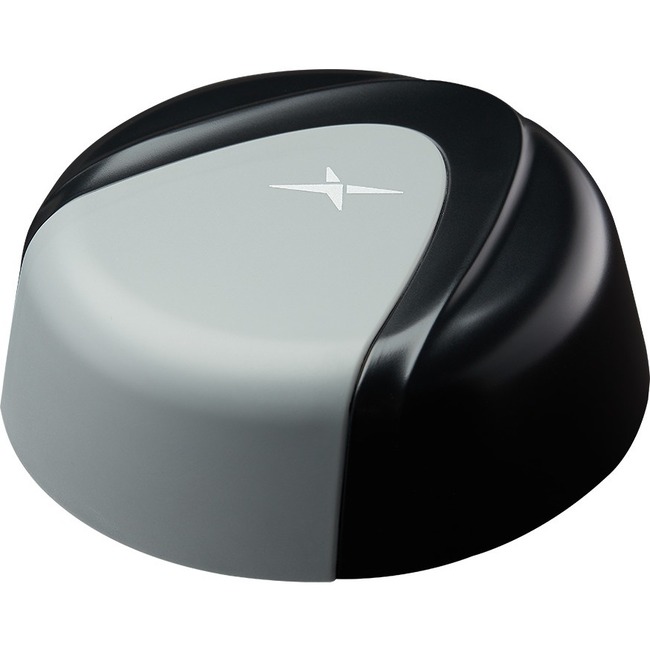

The Taoglas Synergy MA1506 is a 6-in-1 next-generation permanent mount antenna for vehicle roof applications. It has a fully IP67 rated waterproof robust ABS enclosure and base. The 6 antennas inside support 5G/4G GPS/GLONASS/BeiDou Wi-Fi (2.4GHz/5GHz). This outstanding patent-pending antenna delivers powerful MIMO antenna technology for 5G/4G Wi-Fi 2.4/5.8GHz 802.11n and the emerging 802.11ac and an optimized GPS/GLONASS/BeiDou patch antenna for location. The 5G/4G antennas also include backward compatibility to work at most worldwide 2G and 3G bands. Typical Applications: - Next Generation OEM Automotive Connectivity
- Multimedia Navigation and Telematics Systems
- V2V V2X and Fleet Management Applications
- Real-time HD Video Streaming
- First Net Responder Routers
The MA1506 is ideal for applications that require highly sophisticated antennas for real-time streaming applications that demand high-speed video uplink and downlink into the cabin of the vehicle. These challenges are resolved by the highly efficient high gain MIMO antennas with high isolation all of which is necessary to achieve the required signal to noise ratio and throughput. The MA1506 can also be customized for your particular wireless application and frequency band subject to NRE and MOQ. There are 5 x RG-316 cables terminating in SMA(M) connectors for 5G/4G MIMO 2X2 and RP SMA(M) for Wi-Fi MIMO 3X3. There is an RG-174 cable for GNSS terminating in an SMA(M) connector. All cable lengths and connector types are fully customizable. The Synergy MA1506 can be supplied with low loss TGC-200 cable extensions for longer cable runs. Contact your regional Taoglas customer support team for more information. |
| Product Model | MA1506 |
| Product Name | MA1506 Antenna |
| Product Type | Antenna |
