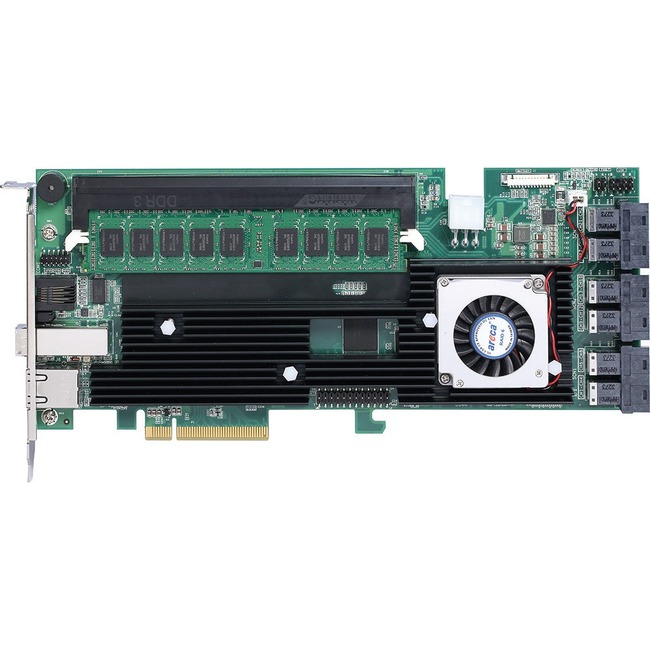

Areca PCIe 3.0 12Gb/s SAS RAID Controller - 6Gb/s SAS - PCI Express 3.0 x8 - Plug-in Card - RAID Supported - 0, 1, 10E, 3, 5, 6, 30, 50, 60, JBOD RAID Level - 4 x SFF-8643, 1 x SFF-8644 - 20 Total SAS Port(s) - 16 SAS Port(s) Internal - 4 SAS Port(s) External - Linux, PC, Mac - 2 GB Flash Backed Cache
6Gb/s SAS - PCI Express 3.0 x8 - Plug-in Card - RAID Supported - 0, 1, 10E, 3, 5, 6, 30, 50, 60, JBOD RAID Level - 4 x SFF-8643, 1 x SFF-8644 - 20 Total SAS Port(s) - 16 SAS Port(s) Internal - 4 SAS Port(s) External - Linux, PC, Mac - 2 GB Flash Backed Cache
| Cache Memory | 2 GB |
| Data Backup Type | Flash Backed Cache |
| Number of SAS Ports (External) | 4 |
| Number of SAS Ports (Internal) | 16 |
| SAS Connector Details | 1 x SFF-8644 |
| SAS Connector Details | 4 x SFF-8643 |
| Total Number of SAS Ports | 20 |
| Brand Name | Areca |
| Controller Type | 6Gb/s SAS |
| Depth | 10" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Plug-in Card |
| Height | 3.9" |
| Host interface | PCI Express 3.0 x8 |
| Manufacturer | Areca Technology Corp. |
| Manufacturer Part Number | ARC-1883ix-16 |
| Manufacturer Website Address | http://www.areca.us |
| Marketing Information | The new third generation ARC-1883 family offers advanced technology for increased performance and improved enterprise data protection. They were designed with 1.2 GHz dual core ROC processor DDR3-1866 memory architecture and PCIe 3.0 interface for the most performance-hungry database and IT applications. The ARC-1883 family includes 8 ports low profile as well as full height 12/16/24 internal ports with additional 4 external ports with mini SAS HD connectors for 12Gb/s throughput on each port. |
| Platform Supported | Mac |
| Platform Supported | PC |
| Platform Supported | Linux |
| Product Name | PCIe 3.0 12Gb/s SAS RAID Controller |
| Product Type | SAS Controller |
| RAID Levels | 5 |
| RAID Levels | 60 |
| RAID Levels | 6 |
| RAID Levels | 10E |
| RAID Levels | 50 |
| RAID Levels | 3 |
| RAID Levels | 30 |
| RAID Levels | JBOD |
| RAID Levels | 1 |
| RAID Levels | 0 |
