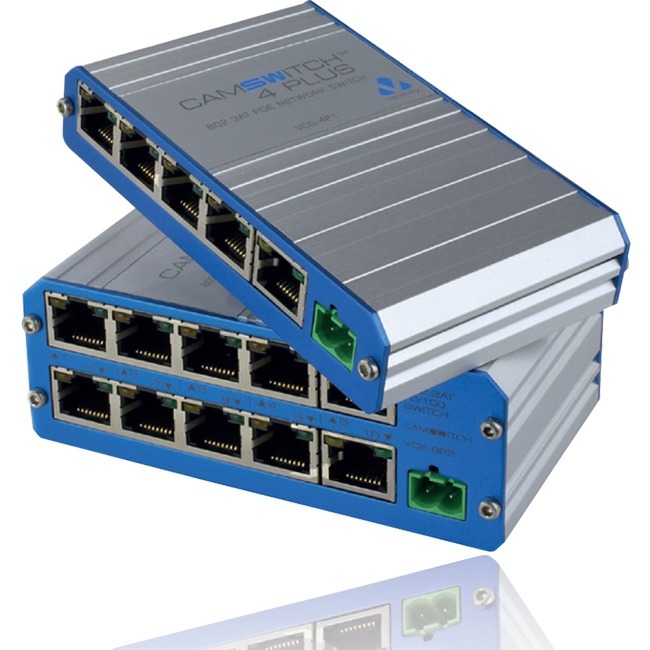

Veracity CAMSWITCH Plus VCS-4P1 Ethernet Switch
| $207.87 Retail $252.25 |
- Quickly and easily set up a wired network with 5 networking ports
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
5 Ports - Fast Ethernet - 10/100Base-T - 2 Layer Supported - PoE, Power Supply - Twisted Pair
Product Specifications
| Total Number of Network Ports | 5 |
| Brand Name | Veracity |
| Depth | 2.5" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Height | 0.9" |
| Layer Supported | 2 |
| Manageable | No |
| Manufacturer | Veracity USA Inc |
| Manufacturer Part Number | VCS-4P1 |
| Manufacturer Website Address | http://www.veracityusa.com |
| Marketing Information | Compact and versatile 802.3at POE switches CAMSWITCH 4 PLUS REPLACES CAMSWITCH QUAD. 802.3at POE Power CAMSWITCH Plus can deliver up to the full 25.5 watts required by IEEE 802.3at POE Plus devices such as outdoor or PTZ cameras. A selection of power supply options are available to suit the total power requirements and placement considerations of the installation. 40 watt and 78 watt camera/device power budgets are available from standard power supplies or the full 200 watts for 8 POE Plus ports can be delivered using Veracity's forthcoming rackmount power solutions. CAMSWITCH Plus can be powered by POE doubling the distance to connected devices or enabling network connections to be easily added to existing installations. Up to 25 watts budget at 200 metres is available using Veracity's OUTSOURCE Plus injector. When a 57V power supply is used CAMSWITCH Plus can deliver enhanced POE to Veracity OUTREACH Max HIGHWIRE PowerStar and LONGSPAN products for maximum range. Designed for installers Snap-on clips are provided for secure wall mounting and up to 4 units can be mounted in an optional 1U rack bracket. |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100Base-T |
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Power source | Power Supply |
| Power source | PoE |
| Product Line | CAMSWITCH Plus |
| Product Name | CAMSWITCH Plus VCS-4P1 Ethernet Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 017519207134 818275734199 892314002173 |
| Weight (Approximate) | 4.76 oz |
| Width | 4.3" |
