Atdec Modular Desk Mount for Monitor, Display Screen, Curved Screen Display, All-in-One Computer, Flat Panel Display - Silver

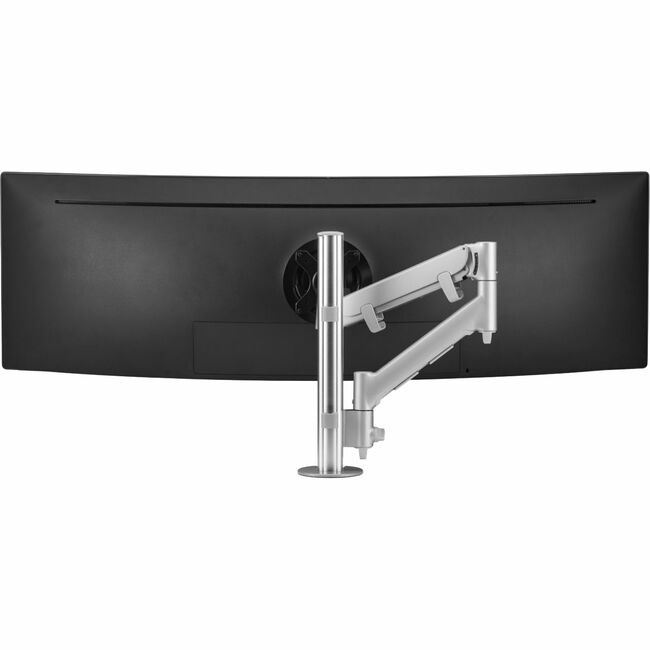

The AWMS-HX40 is a heavy duty monitor arm attached to a 15.7" post. Its spring-assisted design with three points of articulation enables effortless adjustment from a seated position even for heavy displays. It supports monitors from 13lbs to 35lb and will work well with any curved large or all-in-one PC display.

This solution is part of the Atdec modular family and consists of the following individual components:

1 x AWM-LTH Heavy duty tilt head 1 x AWM-AHX dynamic arm 1 x AWM-LC channel clamp and 1 x AWM-P40G 15.7" post.
Choose your preferred desk fixing option (not included).

Ideal for: Curved monitors heavy and large display and all-in-one PCs. Spring-assisted arm provides the ultimate in ergonomic support and allows the display to be adjusted effortlessly from a seated position.

Upgrades: Additional arms can be added to create either dual or triple display configurations. The display mounting head can be replaced with the AWM-LR dual crossbar (sold separately).

Functionality specifications:

• Flat screen monitors: load from 13lbs to 35lb per monitor
• Curved screen monitors: load from 13lbs to 26.5lb per monitor
• 75 x 75 or 100 x 100 VESA
• Arm reach: 23.5"
• Landscape to portrait monitor rotation
• Glare control and optimal viewing angle adjustment via tilt and pan capabilities
• Focal distance control

Design considerations:

• Ergonomic spring-assisted movement for easy adjustment
• Small footprint
• Modular adaptable and upgradeable design
• Available in Silver Black or White finish
• Sleek supple design
• Made of durable aluminum that can be easily recycled at the end of life

Installation:

• Simple assembly using modular parts
• Spring-tension visual gauge to assist with multiple desk installations
• 20-degree tool-free monitor tilt adjustment
• Built-in optional arm rotation stopper to prevent interference with walls or desk partitions
• Choice of desk mounting options
• Advanced cable management

• 1 x AWM-AHX-S23.5" Dynamic Arm
• 1 x AWM-LTH-S Heavy duty tilt head. VESA 75 x 75 100 x 100
• 1 x AWM-P40G-S15.7" post
• 1 x AWM-LC-S Mounting post channel clamp for AWM-AD and AWM-AHX arms
• 1 x AWM-FH-S Heavy duty F-clamp desk fixing
