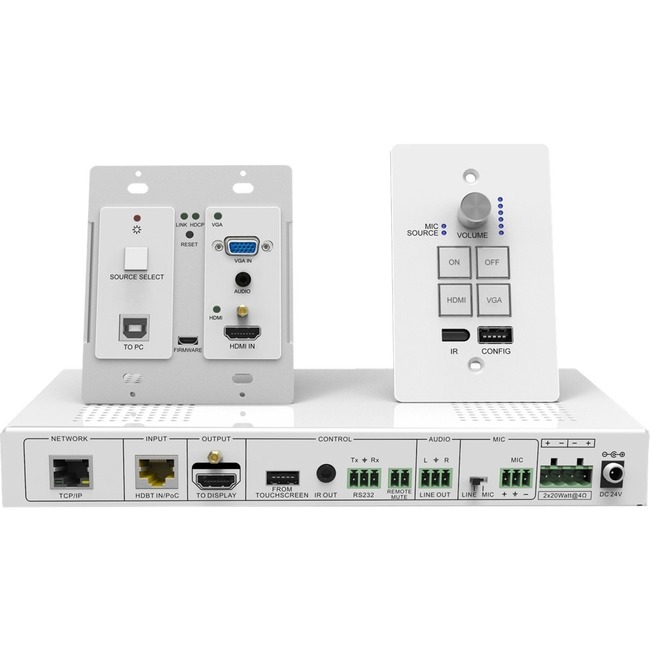

SIIG Wallplate HDMI/VGA HDBaseT Kit

Wallplate design allows you to select and switch between any of the 2 source devices 1 HDMI and 1 VGA to display on an HDMI display up to 30 meters with audio output and microphone inputs. Great for education boardrooms waiting rooms

• HDBaseT extender with wall plate designed Transmitter and Control Panel and wall mounting Receiver box
• Allows you to switch freely between your HDMI and VGA input device via push button
• IR receiver on the Control Panel controls a projector or other display device at the remote location
• Output resolutions: 1024x768 1280x720 1280x800 1360x768 1600x1200 1920x1080 or 1920x1200
• Supports transmission distance up to 98ft (30m) at 1920x1200 @60Hz over CAT cabling
• Supports PoC to power the Transmitter Control Panel and Receiver via a single power adapter connected to the Receiver
• Easy-to-use Control Panel for convenient device control in showrooms classrooms and boardrooms
• Supports IR learning of the display device's (projector TV etc.) IR remote for easy device control at the Control Panel

Wallplate design allows you to select and switch between any of the 2 source devices 1 HDMI and 1 VGA to display on an HDMI display up to 30 meters with audio output and microphone inputs. Great for education boardrooms waiting rooms

• HDBaseT extender with wall plate designed Transmitter and Control Panel and wall mounting Receiver box
• Allows you to switch freely between your HDMI and VGA input device via push button
• IR receiver on the Control Panel controls a projector or other display device at the remote location
• Output resolutions: 1024x768 1280x720 1280x800 1360x768 1600x1200 1920x1080 or 1920x1200
• Supports transmission distance up to 98ft (30m) at 1920x1200 @60Hz over CAT cabling
• Supports PoC to power the Transmitter Control Panel and Receiver via a single power adapter connected to the Receiver
• Easy-to-use Control Panel for convenient device control in showrooms classrooms and boardrooms
• Supports IR learning of the display device's (projector TV etc.) IR remote for easy device control at the Control Panel

• Wallplate HDMI/VGA HDBaseT Kit (Transmitter / Receiver / Control Panel)
• Power adapter
• 2 x Receiver mounting ears
• 4 x Screws
• 4 x Receiver rubber feet
• 4-Pin Terminal Block (2x20Watt@4ohm port)
• 3 x 3-Pin Terminal Block Line out/RS-232
• 2-Pin Terminal Block Remote Mute port
• IR emitter
• USB A to B control cable
• White face plate
• User manual

• Wallplate HDMI/VGA HDBaseT Kit (Transmitter / Receiver / Control Panel)
• Power adapter
• 2 x Receiver mounting ears
• 4 x Screws
• 4 x Receiver rubber feet
• 4-Pin Terminal Block (2x20Watt@4ohm port)
• 3 x 3-Pin Terminal Block Line out/RS-232
• 2-Pin Terminal Block Remote Mute port
• IR emitter
• USB A to B control cable
• White face plate
• User manual
