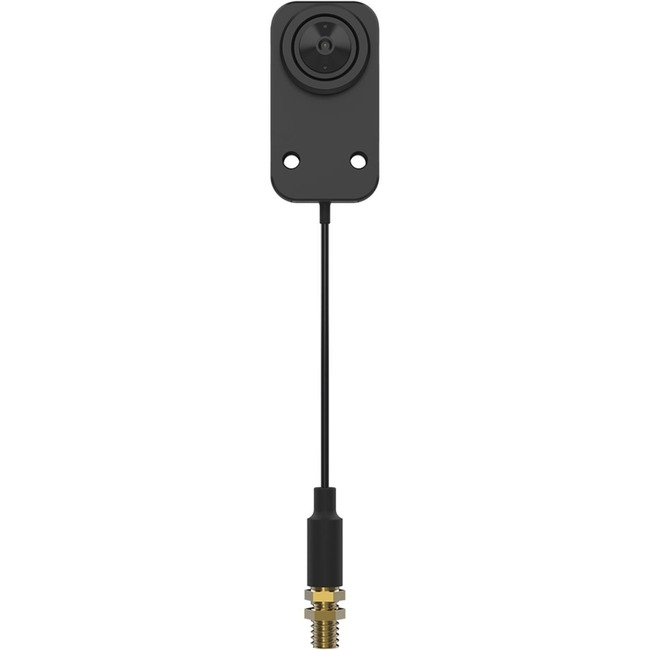

AXIS F7225-RE Indoor/Outdoor Surveillance Camera - Color
| $266.83 |
- Low cost and affordable solution for surveillance applications
- Up to 1920 x 1200 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 3.70 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
- f/2.5 maximum aperture for reliable, detailed, and sharp output with added dependability
- Fixed lens type is set all the way open to its lowest F stop, and is common on small form factor cameras
- Bracket Mount mount type ensures optimal results and maximum convenience
- Day/Night feature for maximum productivity with added dependability
- Wired connectivity technology helps you always stay connected to your surveillance camera for maximum productivity
H.265, H.264B, H.264H, H.264M - 1920 x 1200 - 3.70 mm Fixed Lens - CMOS - Bracket Mount - IP66, IP67
Product Specifications
| Field of View | Horizontal field of view 92 ° / Vertical field of view 45 ° |
| HD Recording | Yes |
| Indoor/Outdoor | Indoor/Outdoor |
| Ingress Protection Rating | IP67 |
| Ingress Protection Rating | IP66 |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/2.5 |
| Minimum Operating Temperature | -22°F (-30°C) |
| Operating Humidity | 85% |
| Brand Name | AXIS |
| Color Supported | Color |
| Connectivity technology | Wired |
| Features | Day/Night |
| Features | Wide Dynamic Range |
| Image Sensor Type | CMOS |
| Lens Type | Fixed |
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02363-001 |
| Manufacturer Website Address | http://www.axis.com |
| Marketing Information | Only for use with 2nd generation main units and cables. Ideal for integration in tight spaces such as machines or ATMs AXIS F7225-RE delivers high quality video even in challenging light conditions. Featuring a pinhole lens it ensures highly discreet surveillance. Extremely discreet AXIS F7225-RE allows for extremely discreet surveillance where only the sensor is visible externally. Based on a divided network camera concept it's designed for use with AXIS F91 main units to ensure maximum flexibility. And it offers easy installation-you can install it in tight places behind metal glass or plastic sheets and more. Cost-effective and flexible Designed for both indoor and outdoor use this IP66-/IP67-rated pinhole sensor can operate in temperatures from -40 to 55 °C (-40 to 131 °F). It can be connected to the main unit using cables up to 30 m (98 ft). Plus with one main unit and up to four sensors it offers lower installation and configuration costs compared to traditional cameras and requires just one VMS license. And it ensures a lower power budget and requires fewer switch ports. High video usability AXIS F7225-RE delivers high quality video even in challenging light conditions. It supports four HDTV 1080p video streams at 30 fps or 720p video streams at up to 60 fps. When used with AXIS F91 main units it delivers HDTV 1080p video streams at 60 fps or 720p video streams at up to 180 fps. In addition when connected to an AXIS F91 main unit it offers Forensic WDR for clarity when there's both dark and light areas in the scene. Furthermore a 97º field of view allows for wide area coverage. |
| Maximum Focal Length | 3.70 mm |
| Maximum frame rate | 180 fps |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Video Resolution | 1920 x 1200 |
| Mount Type | Bracket Mount |
| Product Model | F7225-RE |
| Product Name | F7225-RE Pinhole Sensor |
| Product Series | F |
| Product Type | Surveillance Camera |
| Video Formats | H.264B |
| Video Formats | H.264H |
| Video Formats | H.265 |
| Video Formats | H.264M |
| Weight (Approximate) | 0.92 oz |
