Tripp Lite 1M Fiber Optic Fan-out Cable Push / Pull Tab MTP/MPO to 8 x LC 40Gbase OM3 Plenum Aqua 3ft 3' 1 Meter
| $150.51 Retail $248.00 |
- Premium-grade ceramic ferrule designed specifically for 10GbE and faster applications
- Sturdy plastic housing for long-lasting durability

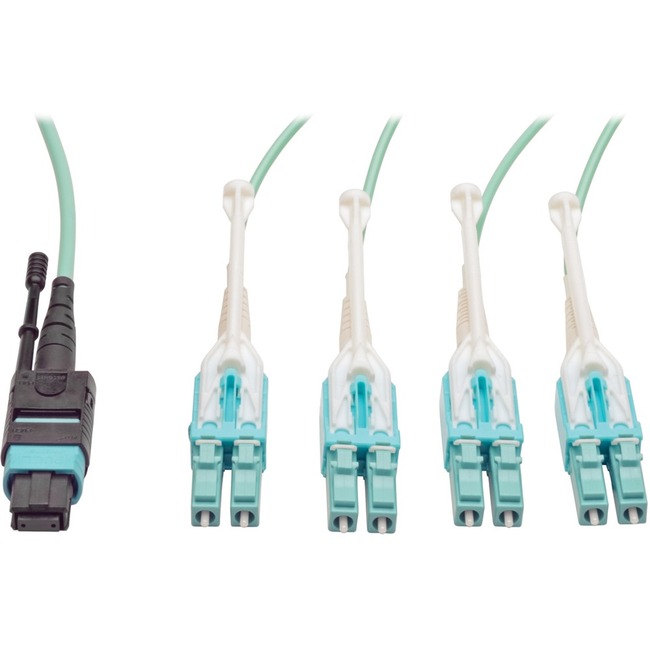

- MTP / MPO to 8 x LC Fan-out Cable
- Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand without needing additional tools
- Slim uniboot design saves space and makes cables easier to manage
- OM3, 40GbE rated, 40GBASE-SR4
3.30 ft Fiber Optic Network Cable for Network Device - MTP Network - Second End: 8 x LC Network - Fan-out Cable - Aqua
Product Specifications
| Connector on Second End Details | 8 x LC Network |
| Connector Type on First End | MTP Network |
| Connector Type on Second End | LC Network |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Cable Characteristic | Fan-out Cable |
| Cable Characteristic | Fan-out Cable |
| Cable length | 3.30 ft |
| Cable length | 3.30 ft |
| Cable type | Fiber Optic |
| Cable type | Fiber Optic |
| Color | Aqua |
| Color | Aqua |
| Connector on First End | MTP Network |
| Connector on First End | MTP Network |
| Connector on Second End | 8 x LC Network |
| Connector on Second End | 8 x LC Network |
| Connector on Second End | LC - Network |
| Connector on Second End | LC - Network |
| Core/Cladding Diameter | 50/125 µm |
| Core/Cladding Diameter | 50/125 µm |
| Country of origin | China |
| Country of origin | China |
| Device Supported | Network Device |
| Device Supported | Network Device |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Features | Booted |
| Features | Booted |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Mode | Multi-mode |
| Jacket Type | Plenum |
| Jacket Type | Plenum |
| Limited Warranty | Lifetime |
| Limited Warranty | Lifetime |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | N844-01M-8LC-PT |
| Manufacturer Part Number | N844-01M-8LC-PT |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite's Premium MPO/MTP Multi-Fiber cabling system is ideally suited for a high density environment that demands space saving and reduced cable management solutions. MPO/MTP fan-outs support various connections from multi-fiber to single-fiber out. N844-xxM-8LC-P cables utilize 8 fibers to fully transmit 40GBASE-SR 4 fibers in each direction transmitting at 10Gbps. It includes push/pull tab connectors for maximum accessibility; install or remove the cable with one hand without needing additional tools. Its slim uniboot design provides space savings while its premium-grade ceramic ferrules are designed for 10GbE and faster applications. Backward compatible with existing 50/125 fiber. Plenum rated jacket. |
| Marketing Information | Tripp Lite's Premium MPO/MTP Multi-Fiber cabling system is ideally suited for a high density environment that demands space saving and reduced cable management solutions. MPO/MTP fan-outs support various connections from multi-fiber to single-fiber out. N844-xxM-8LC-P cables utilize 8 fibers to fully transmit 40GBASE-SR 4 fibers in each direction transmitting at 10Gbps. It includes push/pull tab connectors for maximum accessibility; install or remove the cable with one hand without needing additional tools. Its slim uniboot design provides space savings while its premium-grade ceramic ferrules are designed for 10GbE and faster applications. Backward compatible with existing 50/125 fiber. Plenum rated jacket. |
| Product color | Aqua |
| Product Name | 1M (3.28-ft.) MTP / MPO Fan-out Cable MTP/MPO to 8 x LC 40GbE OM3 Plenum |
| Product Name | 1M (3.28-ft.) MTP / MPO Fan-out Cable MTP/MPO to 8 x LC 40GbE OM3 Plenum |
| Product Type | Network Cable |
| Product Type | Network Cable |
| UPC Alternates | 037332185259 |
| UPC Alternates | 037332185259 |
