Tripp Lite PDU Switched 7.4kW 230V 16 C13 2 C19 2 IEC309 32A Blue Cords 2U - IEC 60309 32A BLUE (2P+E) - 16 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 7.40 kVA - 1U/2U - Horizontal Rackmount
IEC 60309 32A BLUE (2P+E) - 16 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 7.40 kVA - 1U/2U - Horizontal Rackmount
| Mounting Orientation | Horizontal |
| Plug/Connector Detail | 2 x IEC 60309 32A BLUE (2P+E) |
| Power Rating (Watt) | 7400 W |
| Receptacle Detail | 16 x IEC 60320 C13 |
| Receptacle Detail | 2 x IEC 60320 C19 |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Depth | 12.5" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 3.5" |
| Input current | 32 A |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Management | - HTTP
- HTTPS
- PowerAlert
- SMTP
- SNMPv1
- SNMPv2
- SNMPv3
- Telnet
- SSH
- FTP
- DHCP
- BOOTP and NTP
|
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDUMH32HVATNET |
| Manufacturer Website Address | http://www.tripplite.com |

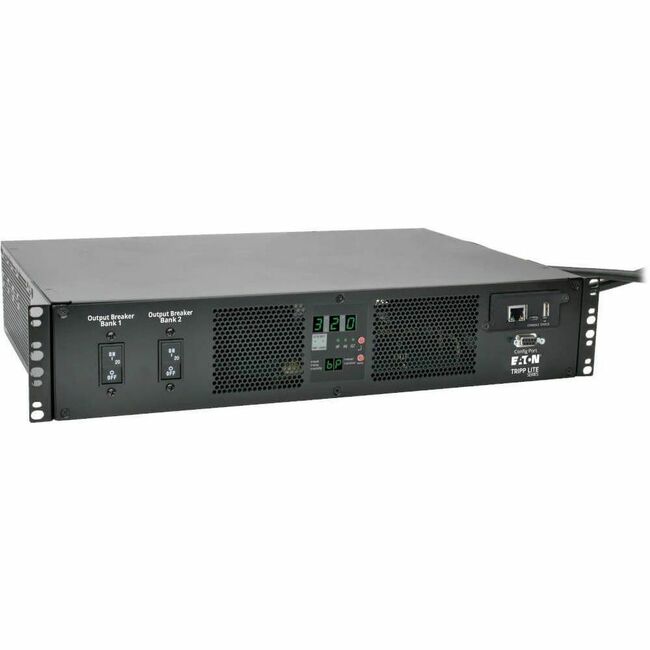

| Marketing Information | The PDUMH32HVATNET 7.4kW Single-Phase 230V ATS/Switched PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms it mounts in 2U of space in EIA-standard racks and features 18 switched outlets(16 C13 and two C19) in two load banks each bank protected by a 20A circuit breaker.
Dual 3-meter input cords with IEC309 32A Blue(2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state(TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in Ethernet network interface allows remote access to the PDU for power monitoring configuration control and notifications via web browser SSH telnet or SNMP. Provides real-time load/current data with billing-grade accuracy(+/- 1 percent). Supports user-programmable startup of outlets in any order or interval to ensure network items are turned on in the proper sequence and reliably discovered. Digital LED display indicates power availability voltage source A/B input status output load and power factor as well as temperature and humidity with the optional ENVIROSENSE module(sold separately). |
| Mount Type | Rack-mountable |
| Package Contents | - PDUMH32HVATNET 7.4kW Single-Phase 230V ATS/Switched PDU
- Rack-mounting brackets
- Cord retention brackets
- Cable ties
- Owner's manual
|
| Plug/Connector Type | IEC 60309 32A Blue (2P+E) |
| Product Name | PDUMH32HVATNET 7.4kW Single-Phase 230V ATS/Switched PDU |
| Product Series | Switched |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Rack Height | 1U/2U |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| UPC Alternates | 037332186874 |
| Weight (Approximate) | 13.70 lb |
| Width | 17.5" |
