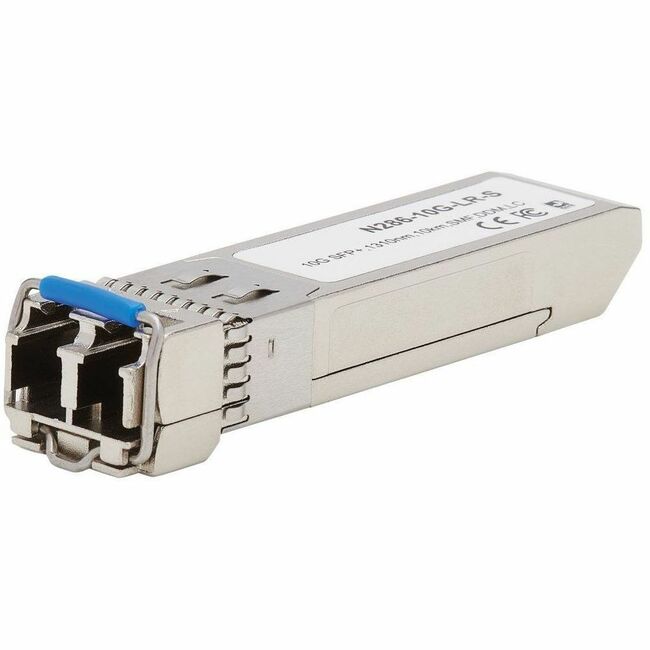

Tripp Lite Cisco SFP-10G-LR-S Compatible SFP+ Transceiver 10GBase LC SMF
| $222.34 Retail $617.93 |
- SFP+ transceiver module 100% compatible with Cisco's equivalent module
- Provides 10 Gbps throughput up to 10 km (6.1 mi.) via singlemode fiber cabling
- LC duplex female connector supports 10GBase-LR signal at 1310 nm wavelength
- Hot-swappable interface lets you install and uninstall without shutting down
- Supports DDM for monitoring temperature and other real-time operating parameters
- 3-year limited warranty
For Optical Network, Data Networking - 1 LC Female Duplex 10GBase-LR Network - Optical Fiber Single-mode - 10 Gigabit Ethernet - 10GBase-LR - Hot-swappable
Product Specifications
| Fiber Mode Supported | Single-mode |
| Fiber Mode Supported | Single-mode |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-LR Network |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-LR Network |
| Application/Usage | Optical Network |
| Application/Usage | Optical Network |
| Application/Usage | Data Networking |
| Application/Usage | Data Networking |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Compatibility | MSA Compliant |
| Compatibility | MSA Compliant |
| Connector Type | LC |
| Connector Type | LC |
| Country of origin | China |
| Country of origin | China |
| Depth | 0.6" |
| Depth | 0.6" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Form factor | Hot-swappable |
| Form factor | Hot-swappable |
| Height | 0.5" |
| Height | 0.5" |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | N286-10G-LR-S |
| Manufacturer Part Number | N286-10G-LR-S |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | SFP+ Transceiver Designed for Connection to Your Cisco Network Switch or Server This SFP+ transceiver allows you to connect an 8.3/125 singlemode fiber optic cable to a 10 Gbps network router server or switch. It transmits data up to 10 kilometers (721 feet) and supports bi-directional Gigabit Ethernet communication up to 11.1 Gbps. The metal housing protects against electromagnetic interference (EMI) and excessive power dissipation. Functionally Equivalent to Cisco SFP-10G-LR-S Transceiver Module The MSA-compliant N286-10G-LR-S functions just like the equivalent Cisco SFP-10G-LR-S transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router server or switch and receive the same performance as the SFP-10G-LR-S. Hot-Swappable for Installation Without Network Interruption This input/output device is fully hot-swappable so you can install it without a potentially costly 10 Gbps network shutdown or device reboot. Just plug the SFP+ end of the transceiver into your Cisco network device. The other end has an LC duplex connector to link with singlemode fiber optic cable (sold separately). A convenient bail clasp latch helps you carefully remove the module from the device. Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring DDM support lets you keep track of various operating statuses in real time including transceiver temperature input and output power and supply voltage. S-Class Transceiver Highly Recommended for Enterprise Network This S-Class fiber transceiver module is ideal for enterprise network runs of shorter distances than other standard modules. The S-Class N286-10G-LR-S supports only Ethernet protocol and operates only within commercial temperature ranges (0 to 70°C). |
| Marketing Information | SFP+ Transceiver Designed for Connection to Your Cisco Network Switch or Server This SFP+ transceiver allows you to connect an 8.3/125 singlemode fiber optic cable to a 10 Gbps network router server or switch. It transmits data up to 10 kilometers (721 feet) and supports bi-directional Gigabit Ethernet communication up to 11.1 Gbps. The metal housing protects against electromagnetic interference (EMI) and excessive power dissipation. Functionally Equivalent to Cisco SFP-10G-LR-S Transceiver Module The MSA-compliant N286-10G-LR-S functions just like the equivalent Cisco SFP-10G-LR-S transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router server or switch and receive the same performance as the SFP-10G-LR-S. Hot-Swappable for Installation Without Network Interruption This input/output device is fully hot-swappable so you can install it without a potentially costly 10 Gbps network shutdown or device reboot. Just plug the SFP+ end of the transceiver into your Cisco network device. The other end has an LC duplex connector to link with singlemode fiber optic cable (sold separately). A convenient bail clasp latch helps you carefully remove the module from the device. Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring DDM support lets you keep track of various operating statuses in real time including transceiver temperature input and output power and supply voltage. S-Class Transceiver Highly Recommended for Enterprise Network This S-Class fiber transceiver module is ideal for enterprise network runs of shorter distances than other standard modules. The S-Class N286-10G-LR-S supports only Ethernet protocol and operates only within commercial temperature ranges (0 to 70°C). |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Optical Fiber |
| Network Technology | 10GBase-LR |
| Network Technology | 10GBase-LR |
| Package Contents |
|
| Package Contents |
|
| Product Name | Cisco SFP+ Module |
| Product Name | Cisco SFP+ Module |
| Product Type | SFP+ |
| Product Type | SFP+ |
| Total Number of Ports | 1 |
| Total Number of Ports | 1 |
| UPC Alternates | 037332249241 974570344614 995475910339 |
| UPC Alternates | 037332249241 974570344614 995475910339 |
| Weight (Approximate) | 0.06 lb |
| Weight (Approximate) | 0.06 lb |
| Width | 2.3" |
| Width | 2.3" |
