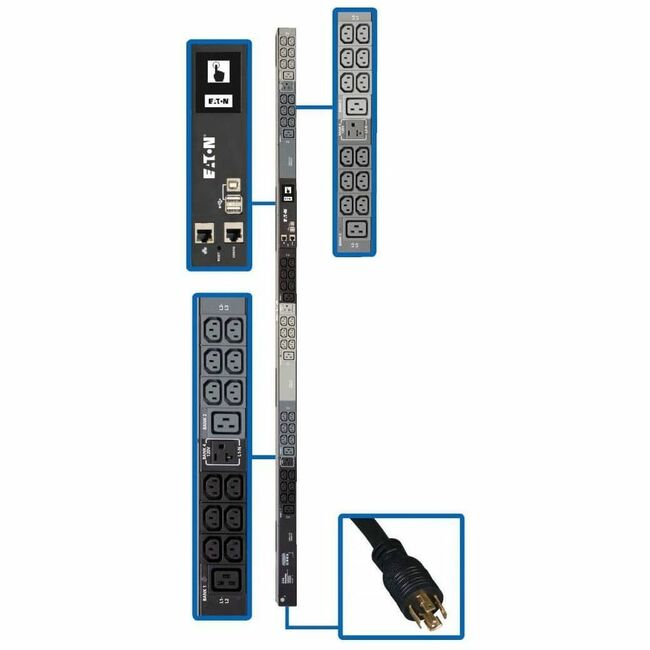

Tripp Lite 3-Phase PDU Monitored 5.8kW 208 & 120V 36 C13; 6 C19; 3 5-15/20R
New
Tripp Lite 3-Phase PDU Monitored 5.8kW 208 & 120V 36 C13; 6 C19; 3 5-15/20R - Monitored - NEMA L21-20P - 36 x IEC 60320 C13, 6 x IEC 60320 C19, 3 x NEMA 5-15/20R - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
| $656.47 Retail $1,342.22 |
- 208V and 120V outlets distribute AC power to connected rack equipment
- 36 C13, 6 C19 and 3 NEMA 5-15/20R outlets split into 6 individually monitored load banks
- Built-in Java-free HTML5-based LX Platform interface allows you 24/7 remote access
- 6 ft. (1.8 m) power cord with NEMA L21-20P input connects to compatible AC source
- Color touchscreen LCD provides vital load and environmental data and network inf
You may be also interested
$78.95
$111.00
$1,003.21
$890.00
$595.77
$792.00
$941.65
$822.95
$1,195.00
$139.57
$1,499.48
$614.30
$1,933.89
$2,758.00
$1,026.49
$1,380.00
$9,119.31
$9,149.00
$1,342.31
$1,805.00
$558.13
$684.95
$315.17
$590.00
$871.54
$937.00
$472.92
$597.00
$115.88
$159.95
$218.70
$299.95
$504.94
$630.00
$136.29
$159.95
$1,221.53
$1,302.00
Tripp Lite 3-Phase PDU Monitored 5.8kW 208 & 120V 36 C13; 6 C19; 3 5-15/20R - Monitored - NEMA L21-20P - 36 x IEC 60320 C13, 6 x IEC 60320 C19, 3 x NEMA 5-15/20R - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
Monitored - NEMA L21-20P - 36 x IEC 60320 C13, 6 x IEC 60320 C19, 3 x NEMA 5-15/20R - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
Monitored - NEMA L21-20P - 36 x IEC 60320 C13, 6 x IEC 60320 C19, 3 x NEMA 5-15/20R - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
Product Specifications
| Mounting Orientation | Vertical |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Detail | 1 x NEMA L21-20P |
| Power Rating (Watt) | 5800 W |
| Receptacle Detail | 36 x IEC 60320 C13 |
| Receptacle Detail | 3 x NEMA 5-15/20R |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Depth | 2.5" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 70" |
| Input current | 16 A |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Management |
|
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDU3EVN6L2120 |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | 5.8kW 3-phase PDU with multifunction touchscreen LCD distributes and monitors AC power in an IT or industrial environment. Features 3-Phase 0U PDU Distributes and Monitors Network-Grade Power Recommended for data centers server rooms and network closets this monitored power distribution unit provides real-time remote monitoring of voltage and load levels via built-in network connection. A six-foot (1.8-meter) cord with NEMA L21-20P input plug connects the 208V 3-phase PDU to a compatible AC power source generator or protected UPS. The firmware can be easily upgraded to ensure the Tripp Lite vertical PDU continues to perform at its best. 45 Outlets Dispense AC Power to Connected Equipment During normal operation 36 C13 (208V) six C19 (208V) and three NEMA 5-15/20R (120V) outlets distribute AC power to rack equipment. The outlets are split into six individually monitored load banks-three banks containing two C19 and 12 C13 outlets and three of one 5-15/20R outlet each. Three LEDs monitor load conditions for each bank. Plug-lock insert sleeves for the C13 and C19 outlets are included to prevent connected cables from becoming accidentally dislodged. Built-In LX Platform Network Management Card Allows Remote Access 24/7 The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP. The 0U PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method. Color Touchscreen LCD Offers Important Data at a Glance An easy-to-navigate color touchscreen LCD reports network data including IP address input current level per phase and output current per load bank with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 0U PDU via mobile device. If an EnviroSense2 module is connected to the 3-phase PDU the LCD also displays status and environmental data such as temperature and humidity. Easy to Install Vertically in an EIA-Standard 19 in. Rack The 70-inch (178 cm) 0U PDU mounts vertically using the included toolless mounting buttons or the included rack-mounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the 208V 3-phase PDU with outlets facing the rear for better airflow or equipment access. TAA-Compliant for GSA Schedule Purchases The PDU3EVN6L2120 is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
| Mount Type | Rack-mountable |
| Output voltage | 208 V AC |
| Output voltage | 120 V AC |
| Package Contents |
|
| Plug/Connector Type | NEMA L21-20P |
| Product Name | PDU3EVN6L2120 45-Outlet PDU |
| Product Type | PDU |
| Rack Height | 0U |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Type | IEC 60320 C13 |
| UPC Alternates | 037332206787 |
| Weight (Approximate) | 13.50 lb |
| Width | 2.2" |
