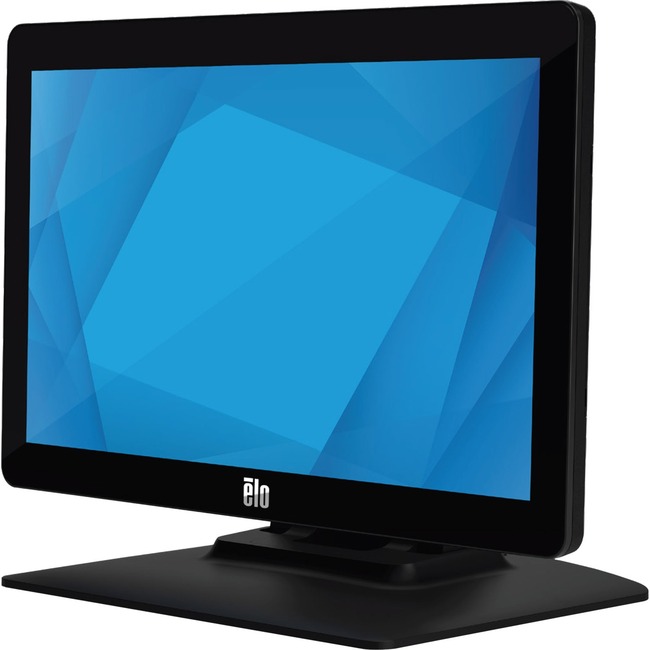

Elo 1502L 15.6" LCD Touchscreen Monitor - 16:9 - 10 ms - 16" Class - IntelliTouch Pro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1366 x 768 - HD - Thin Film Transistor (TFT) - 262,000 Colors - 600:1 - 220 Nit, 187 Nit - LED Backlight - Speakers - HDMI - USB - VGA - 1 x HDMI In - Black - Speaker
16" Class - IntelliTouch Pro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1366 x 768 - HD - Thin Film Transistor (TFT) - 262,000 Colors - 600:1 - 220 Nit, 187 Nit - LED Backlight - Speakers - HDMI - USB - VGA - 1 x HDMI In - Black - Speaker
| Number of OSD Languages | 8 |
| Number of Simultaneous Touchpoints | 10 |
| Panel Technology | Thin Film Transistor (TFT) |
| Stand Adjustments | Height |
| Touchscreen Type | IntelliTouch Pro Projected Capacitive |
| Vertical Frequency | 60 Hz |
| Vertical Viewing Angle | 65° |
| VESA Mount Standard | 100 x 100 |
| Aspect ratio | 16:9 |
| Backlight Technology | LED |
| Brand Name | Elo |
| Brightness | 187 Nit |
| Brightness | 220 Nit |
| Built-in Devices | Speaker |
| Color Supported | 262000 Colors |
| Contrast Ratio | 600:1 |
| Depth | 1.3" |
| Energy Consumption per Year | 18 kWh |
| Features | Anti-glare |
| Features | Landscape/Portrait Viewable |
| Features | On-screen Display (OSD) |
| Features | Cable Lock Slot |
| Features | Security Lock |
| Height | 9.6" |
| Horizontal Frequency | 31.50 Hz to 60 Hz |
| Horizontal Viewing Angle | 90° |
| Manufacturer | Elo Touch Solutions Inc |
| Manufacturer Part Number | E318746 |
| Manufacturer Website Address | http://www.elotouch.com |
| Marketing Information | The Elo M-Series 1502L widescreen LED touch monitor is a modern and stylish interactive solution for customer engagement and employee effectiveness at the point of sale. The sleek wide aspect ratio touchscreen features full HD edge-to-edge glass with display area real estate to showcase engaging memorable and rewarding content. An HD display model is available for transactional and other applications not requiring 1920x1080 resolution. For environments where space is scarce the 1502L is an ideal POS terminal screen or stylish interactive information display. Built to withstand the rigors of continuous public use the 1502L is well suited for high use retail venues. The sleek thin look pairs well with any modern store environment. |
| Maximum resolution | 1366 x 768 |
| Mean time between failures (MTBF) | 5.7 Year |
| Microphone | No |
| Mount Type | Wall Mountable |
| Mount Type | Pole Mount |
| Native Contrast Ratio | 700:1 |
| Number of Speakers | 2 |
| Off-Mode Power Consumption | 200 mW |
| Operating Power Consumption | 10.20 W |
| Packaged Quantity | 1 |
| Placement | Tabletop |
| Product color | Black |
| Product Model | 1502L |
| Product Name | M-Series 1502L 15-inch LED Touch Monitor |
| Product Series | M |
| Product Type | LCD Touchscreen Monitor |
| Response time | 10 ms |
| Screen Mode | HD |
| Screen Size Class | 16" |
| Speaker Output Power | 4 W |
| Speakers | Yes |
| Standby Power Consumption | 500 mW |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Supported graphics resolutions | 640 x 480 (VGA) |
| Supported graphics resolutions | 1360 x 768 (WXGA) |
| Supported graphics resolutions | 1280 x 720 (HD 720) |
| Supported graphics resolutions | 720 x 576 |
| Supported graphics resolutions | 800 x 600 (SVGA) |
| Supported graphics resolutions | 1280 x 960 |
| Supported graphics resolutions | 1280 x 800 (WXGA) |
| Supported graphics resolutions | 1024 x 768 (XGA) |
| UPC Alternates | 058293886078 834619009006 |
| Viewable Screen Size | 15.6" |
| Weight (Approximate) | 6.61 lb |
| Weight with Stand (Approximate) | 6.72 lb |
| Width | 15.2" |
