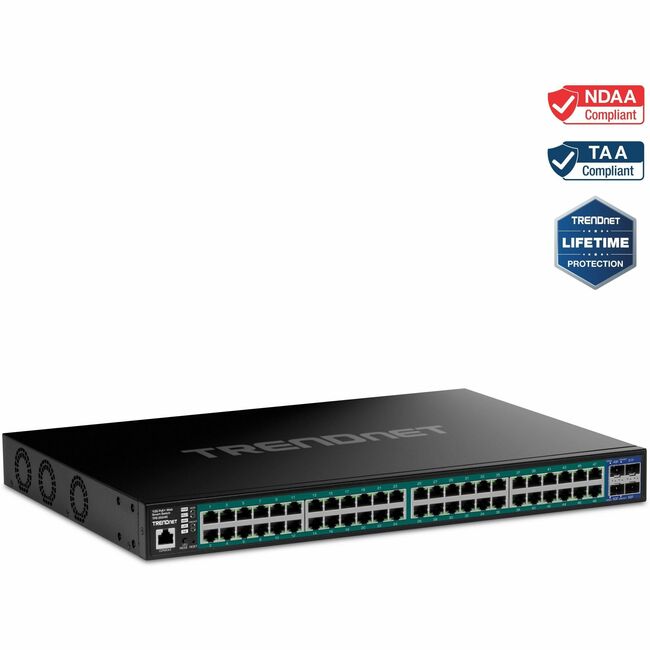

TRENDnet 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ Ports, TPE-3524S, 48 x Gigabit PoE+ Ports, 4 x 10G SFP+ Ports, 410W PoE Power Budget, Lifetime Protection, Black
| $741.00 Retail $849.99 |
- 48 x Gigabit PoE+ ports
- 4 x 10G SFP+ ports
- 410W PoE power budget
- Easy-to-use web-based management interface
- Supports IPv6, LACP, VLAN, QoS, and IGMP/MLD Snooping
- IPv4/IPv6 Static Routing support
- Bandwidth control per port
- Private, Multicast, and Voice VLAN support
- Smart fans
- 176Gbps switching capacity
- IEEE 802.1p QoS with queue scheduling support
- Lifetime Warranty
- NDAA / TAA compliant (U.S. and Canada only)
48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 1000Base-T, 10GBase-X - TAA Compliant - 2 Layer Supported - Modular - 57.40 W Power Consumption - 410 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U High - Rack-mountable - Lifetime Limited Warranty
Product Specifications
| Compatible Rack Unit | 1U |
| Number of Total Expansion Slots | 4 |
| PoE Budget | 410 W |
| Total Number of Network Ports | 48 |
| Application/Usage | VoIP Phone |
| Application/Usage | IP Camera |
| Application/Usage | Wireless Access Point |
| Application/Usage | Network |
| Country of origin | Taiwan |
| Depth | 12.2" |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Form factor | Rack-mountable |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Height | 1.7" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Layer Supported | 2 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TPE3524S |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information |
TRENDnet's 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ ports model TPE-3524S offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to TPE-3524S increase bandwidth between switches VLANs for segmenting and isolating virtual LAN groups QoS for traffic prioritization port bandwidth controls and SNMP monitoring making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also feature 10G SFP+ ports to support long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology users only need one set of cables to deliver both data and power. With this PoE+ managed switch network PoE devices such as high-power wireless access points PTZ and other advanced IP cameras VoIP phone systems IPTV decoders access controls and more. 10G SFP+ Ports Offers four dedicated 10G SFP+ ports for high-speed network connections providing a cost-effective solution in adding 10G link capability to an SMB network. PoE Power A 410W total PoE power budget on the managed PoE+ switch supplies Power over Ethernet devices with up to 30W per port. Integration Flexibility Managed switch features include access control lists VLAN IGMP/MLD snooping QoS RMON SNMP trap and syslog for monitoring and flexible network integration. |
| Marketing Information |
TRENDnet's 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ ports model TPE-3524S offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to TPE-3524S increase bandwidth between switches VLANs for segmenting and isolating virtual LAN groups QoS for traffic prioritization port bandwidth controls and SNMP monitoring making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also feature 10G SFP+ ports to support long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology users only need one set of cables to deliver both data and power. With this PoE+ managed switch network PoE devices such as high-power wireless access points PTZ and other advanced IP cameras VoIP phone systems IPTV decoders access controls and more. 10G SFP+ Ports Offers four dedicated 10G SFP+ ports for high-speed network connections providing a cost-effective solution in adding 10G link capability to an SMB network. PoE Power A 410W total PoE power budget on the managed PoE+ switch supplies Power over Ethernet devices with up to 30W per port. Integration Flexibility Managed switch features include access control lists VLAN IGMP/MLD snooping QoS RMON SNMP trap and syslog for monitoring and flexible network integration. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 10GBase-X |
| Network Technology | 1000Base-T |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3bz |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.3ae |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.1p |
| Package Contents |
|
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+ |
| Power consumption | 57.40 W |
| Power source | Power Supply |
| Product Line | Web Smart |
| Product Model | TPE-3524S |
| Product Name | 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ Slots |
| Product Type | Ethernet Switch |
| UPC Alternates | 710931162509 |
| Weight (Approximate) | 10.45 lb |
| Width | 17.3" |
