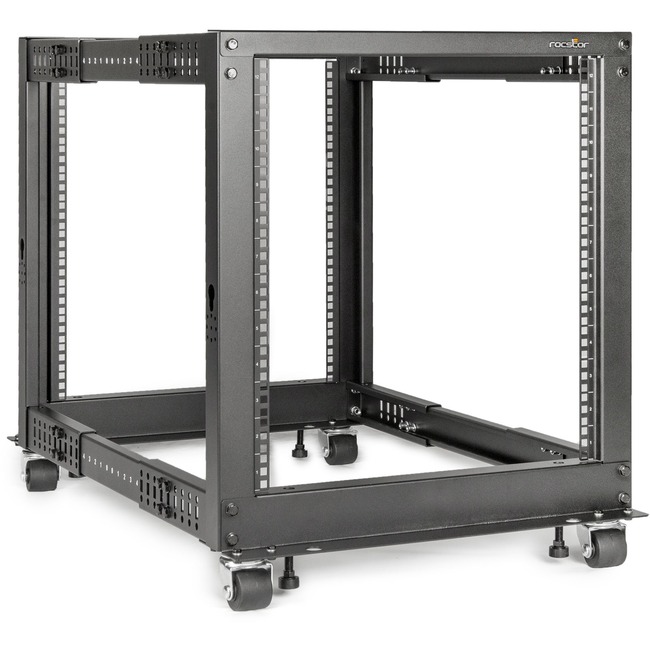

Rocstor SolidRack 12U Adjustable Depth Open Frame 4 Post Rack w/ Casters - Adjustable mounting depth of 22in-40in & 25.1 in Tall - Includes Casters - Assembly Required - 1200 lb Static/Stationary Weight Capacity - Heavy-duty Steel - 19in EIA/ECA-310 rated - ADJUSTABLE DEPTH 4POST RACK - Black - For Patch Panel, Switch, UPS, Server, VoIP Device - 12U Rack Height - Rack-mountable Open Frame - 4 Post - Black - Cold-rolled Steel (CRS) - 1200 lb Static/Stationary Weight Capacity
For Patch Panel, Switch, UPS, Server, VoIP Device - 12U Rack Height - Rack-mountable Open Frame - 4 Post - Black - Cold-rolled Steel (CRS) - 1200 lb Static/Stationary Weight Capacity
| Product Material | Cold-rolled Steel (CRS) |
| Rack Post Quantity | 4 |
| Rack Type | Open Frame |
| Static/Stationary Weight Capacity | 1200 lb |
| Application/Usage | Server |
| Application/Usage | Switch |
| Application/Usage | Patch Panel |
| Application/Usage | UPS |
| Application/Usage | VoIP Device |
| Assembly Required | Yes |
| Depth | 40" |
| Environmental Certification | RoHS |
| Features | Heavy Duty |
| Features | Adjustable Depth |
| Features | Casters |
| Features | Vented |
| Form factor | Rack-mountable |
| Limited Warranty | 5 Year |
| Manufacturer | Rocstor |
| Manufacturer Part Number | Y10E008-B1 |
| Manufacturer Website Address | http://www.rocstor.com |
| Marketing Information | The Rocstor SolidRack 12U Adjustable Depth Open Frame 4 Post Rack w/ Casters facilitates quick and simple access to installed IT equipment while also assisting IT managers in organizing their equipment array. In secure settings and other places where a locked rack solution is not needed this high-quality rack is an easy alternative for housing IT equipment. This premium SolidRack 12U is made with robust cold-rolled steel with a durable black powder-coated finish. The SolidRack 12U Rack can sustain stationary workloads up to 1200 lbs (453.6 kgs). This product features a self-squaring design with bolt-down provisions and includes all the necessary hardware for immediate assembly. Multiple units can be bolted together side by side for high-density applications. The Premium SolidRack 12U's open design allows for unrestricted ventilation and simple access to the equipment and wiring. This premium rack contains numbered square-hole mounting points that make it simple to attach equipment compatible with conventional 19-inch racks. Equipment depths of 22 to 40 inches are all supported by this product. Vertical PDUs and cable management may also be mounted on this rack using tool-free button-hole installation. |
| Package Contents | - SolidRack Rack Frame
- 2 x Left Vertical Rail
- 8 x Corner Section
- 4 x Center Section
- 2 x Top Bracket
- 2 x Right Vertical Rail
- 2 x Base Bracket
- 48 x M8 Bolt
- 48 x M8 Washer
- 1 x M8 (13mm) Wrench
- 50 x M6 Cage Nut x50
- 50 x M6 Plastic Washers x50
- 50 x M6 Phillips Head Screw x50
- M6 Cage Nut (8U/12U x4) (15U/18U x8) (25U x12) (42U x24)
- Hook Mounting Screws (12U x4) (25U x12)
- 4 x Casters
- 4 x Leveling Feet
- 18 x M6 Screws
- 18 x M6 Flat Washers
- 16 x M6 Flange Nut
- 1 x M6(10mm) Wrench
- 1 x Phillips Screwdriver
- 4 x Toothed Lock Washer
- 1 x Toothed Lock Washer
- 4 x M6 Phillips-Head Screw
|
| Product color | Black |
| Product Line | SolidRack |
| Product Name | SolidRack Rack Frame |
| Product Type | Rack Frame |
| Rack Height | 12U |
| UPC Alternates | 810606037849 |
| Weight (Approximate) | 50.30 lb |
