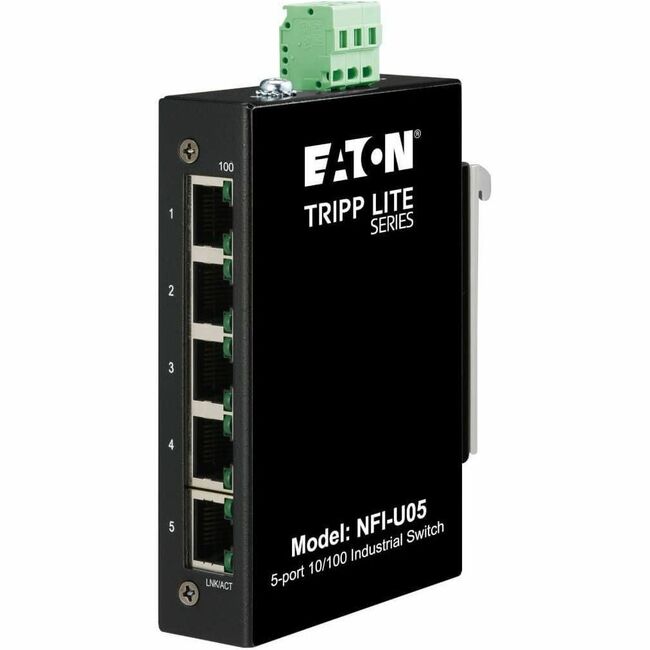

Tripp Lite Ethernet Switch Unmanaged 5Port Industrial DIN Mount 10/100 Mbps
New
Tripp Lite Ethernet Switch Unmanaged 5Port Industrial DIN Mount 10/100 Mbps - 5 Ports - Fast Ethernet - 10/100Base-T - TAA Compliant - 2 Layer Supported - 3 W Power Consumption - Twisted Pair - DIN Rail Mountable, Wall Mountable - 3 Year Limited Warranty
| $85.92 Retail $134.00 |
- 5 auto-negotiable 10/100 Mbps RJ45 ports connect devices over a LAN
- Industrial-grade switch supports operating temperature range of - 40° to 167°F
- Easy-to-read LEDs indicate connection and activity status for all 5 Ethernet ports
- Plug-and-play operation with no software or configuration required before use
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
You may be also interested
$320.45
$499.95
$1,789.92
$2,182.43
$3,783.90
$2,021.67
$2,983.02
$5,966.12
$8,724.30
$317.80
$6,709.00
$4,760.20
$7,071.41
$270.04
$384.99
$79.20
$130.00
$5,443.01
$7,838.43
$297.93
$15,499.00
$71.79
$771.78
$1,249.95
$189.93
$11,140.67
$16,043.61
$1,119.99
$1,750.00
$79.58
$149.99
$341.85
$550.00
$736.06
$894.00
$1,262.79
$1,342.00
Tripp Lite Ethernet Switch Unmanaged 5Port Industrial DIN Mount 10/100 Mbps - 5 Ports - Fast Ethernet - 10/100Base-T - TAA Compliant - 2 Layer Supported - 3 W Power Consumption - Twisted Pair - DIN Rail Mountable, Wall Mountable - 3 Year Limited Warranty
5 Ports - Fast Ethernet - 10/100Base-T - TAA Compliant - 2 Layer Supported - 3 W Power Consumption - Twisted Pair - DIN Rail Mountable, Wall Mountable - 3 Year Limited Warranty
5 Ports - Fast Ethernet - 10/100Base-T - TAA Compliant - 2 Layer Supported - 3 W Power Consumption - Twisted Pair - DIN Rail Mountable, Wall Mountable - 3 Year Limited Warranty
Product Specifications
| Product Material | Aluminum |
| Product Material | Aluminum |
| Total Number of Network Ports | 5 |
| Total Number of Network Ports | 5 |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Depth | 2.9" |
| Depth | 2.9" |
| Environmental Certification | REACH |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Fast Ethernet |
| Form factor | Wall Mountable |
| Form factor | DIN Rail Mountable |
| Form factor | DIN Rail Mountable |
| Form factor | Wall Mountable |
| Height | 4.3" |
| Height | 4.3" |
| Layer Supported | 2 |
| Layer Supported | 2 |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manageable | No |
| Manageable | No |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | NFI-U05 |
| Manufacturer Part Number | NFI-U05 |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Industrial-grade switch expands Ethernet connectivity to factory floors and other environments with space constraints and wide temperature ranges. Features | 5-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN This space-saving Tripp Lite switch transmits data over an Ethernet network. Five auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it which improves the efficiency and potential throughput of the network. Ruggedized Metal Housing Built to Last in Harsh Environments The compact NFI-U05 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications such as factory floors warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit. Unmanaged Switch Requires Little to No Configuration Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U05 supports MAC address autolearning and auto-aging for efficient routing as well as automatic MDI/MDI-X crossover detection for plugand-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. Flexible Mounting Options The open-type device may be DIN mounted using the pre-installed rail clip which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted using the rear mounting holes. A 3-pin 12-48VDC terminal block supplies power input. Device power must be supplied by SELV circuit. TAA-Compliant for GSA Schedule Purchases The NFI-U05 is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
| Marketing Information | Industrial-grade switch expands Ethernet connectivity to factory floors and other environments with space constraints and wide temperature ranges. Features | 5-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN This space-saving Tripp Lite switch transmits data over an Ethernet network. Five auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it which improves the efficiency and potential throughput of the network. Ruggedized Metal Housing Built to Last in Harsh Environments The compact NFI-U05 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications such as factory floors warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit. Unmanaged Switch Requires Little to No Configuration Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U05 supports MAC address autolearning and auto-aging for efficient routing as well as automatic MDI/MDI-X crossover detection for plugand-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. Flexible Mounting Options The open-type device may be DIN mounted using the pre-installed rail clip which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted using the rear mounting holes. A 3-pin 12-48VDC terminal block supplies power input. Device power must be supplied by SELV circuit. TAA-Compliant for GSA Schedule Purchases The NFI-U05 is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100Base-T |
| Network Technology | 10/100Base-T |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3u |
| Package Contents |
|
| Package Contents |
|
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Power consumption | 3 W |
| Power consumption | 3 W |
| Product Name | NFI-U05 Ethernet Switch |
| Product Name | NFI-U05 Ethernet Switch |
| Product Type | Ethernet Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 037332264268 |
| UPC Alternates | 037332264268 |
| Weight (Approximate) | 6.70 oz |
| Weight (Approximate) | 6.70 oz |
| Width | 0.9" |
| Width | 0.9" |
Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
