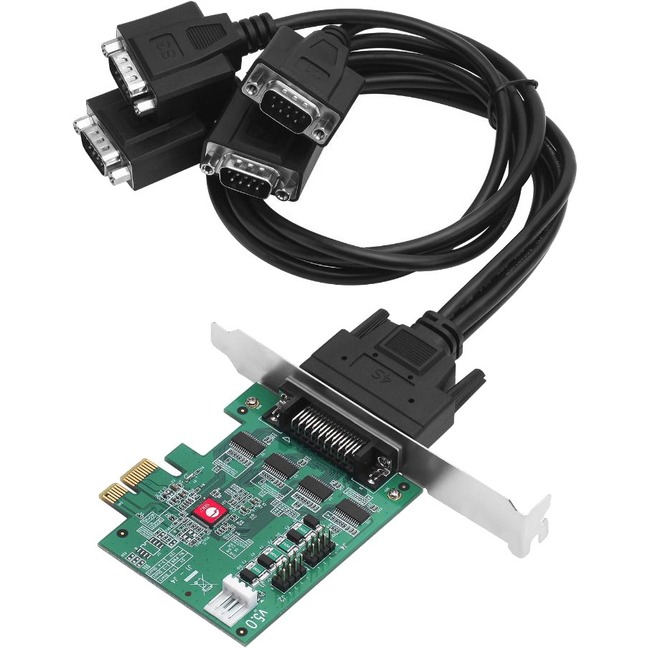

SIIG DP CyberSerial 4S PCIe Board - PCI Express 2.0 x1 - 4 x DB-9 RS-232 - Serial, Via Cable - Plug-in Card - TAA Compliant
PCI Express 2.0 x1 - 4 x DB-9 RS-232 - Serial, Via Cable - Plug-in Card - TAA Compliant
| Card Length | Full-length |
| Card Length | Full-length |
| Ports Expandability | 4 x DB-9 RS-232 - Serial Via Cable |
| Ports Expandability | 4 x DB-9 RS-232 - Serial Via Cable |
| UART Type | 16550 |
| UART Type | 16550 |
| Brand Name | SIIG |
| Brand Name | SIIG |
| Country of origin | China |
| Country of origin | China |
| Country of origin | Taiwan |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Form factor | Plug-in Card |
| Form factor | Plug-in Card |
| Height | 0.9" |
| Height | 0.9" |
| Host interface | PCI Express 2.0 x1 |
| Host interface | PCI Express 2.0 x1 |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | SIIG Inc |
| Manufacturer | SIIG Inc |
| Manufacturer Part Number | JJ-E40011-S5 |
| Manufacturer Part Number | JJ-E40011-S5 |
| Manufacturer Website Address | http://www.siig.com |
| Manufacturer Website Address | http://www.siig.com |
| Marketing Information | Adds four RS-232 serial ports to PCI Express enabled computer systems. Replaces part # JJ-E40011-S4 Note: Replaces part # JJ-E40011-S4 - Easily adds four RS232 DB9 serial ports through an available PCI Express slot
- PCI Express 1-lane (x1) adapter works with any width PCI Express slot
- Four high-speed 16550 UART RS-232 serial ports support asynchronous baud rates up to 921Kbps
- Built-in 256-byte FIFO buffers dramatically increase data transmit/receive speed especially under Windows multitasking environment
- Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners table scanners POS displays etc.) Power is configurable via jumpers with silk-screened settings on PCB for easy identification and setup
- Supports hardware and software flow control 5 6 7 8 and 9-bit serial format
- Onboard power connector provides reliable power source for devices that require power
- Dual-profile PCB design fits full size and low-profile system form factor with included full and low profile brackets
More from the Manufacturer |
| Marketing Information | Adds four RS-232 serial ports to PCI Express enabled computer systems. Replaces part # JJ-E40011-S4 Note: Replaces part # JJ-E40011-S4 - Easily adds four RS232 DB9 serial ports through an available PCI Express slot
- PCI Express 1-lane (x1) adapter works with any width PCI Express slot
- Four high-speed 16550 UART RS-232 serial ports support asynchronous baud rates up to 921Kbps
- Built-in 256-byte FIFO buffers dramatically increase data transmit/receive speed especially under Windows multitasking environment
- Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners table scanners POS displays etc.) Power is configurable via jumpers with silk-screened settings on PCB for easy identification and setup
- Supports hardware and software flow control 5 6 7 8 and 9-bit serial format
- Onboard power connector provides reliable power source for devices that require power
- Dual-profile PCB design fits full size and low-profile system form factor with included full and low profile brackets
More from the Manufacturer |
| Maximum Data Transfer Rate | 921 kbit/s |
| Maximum Data Transfer Rate | 921 kbit/s |
| Number of Ports | 4 |
| Number of Ports | 4 |
| Package Contents | - DP CyberSerial 4S PCIe Board
- Low Profile Bracket
- 4-Port fan-out Cable (DFP-36pin)
- Y-Split Power Cable
- 4 x Voltage Jumper
- Driver CD
- User Manual
|
| Package Contents | - DP CyberSerial 4S PCIe Board
- Low Profile Bracket
- 4-Port fan-out Cable (DFP-36pin)
- Y-Split Power Cable
- 4 x Voltage Jumper
- Driver CD
- User Manual
|
| Platform Supported | PC |
| Platform Supported | PC |
| Product color | Green |
| Product color | Green |
| Product Name | DP CyberSerial 4S PCIe Board |
| Product Name | DP CyberSerial 4S PCIe Board |
| Product Type | Multiport Serial Adapter |
| Product Type | Multiport Serial Adapter |
| System Requirements | - PCI Express-enabled system with an available PCI Express slot
- Windows 10 / 8.x / 7
- Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008
|
| System Requirements | - PCI Express-enabled system with an available PCI Express slot
- Windows 10 / 8.x / 7
- Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008
|
| Thickness | 4.7" |
| Thickness | 4.7" |
| UPC Alternates | 662774043579 |
| UPC Alternates | 662774043579 |
| Weight (Approximate) | 1.60 oz |
| Weight (Approximate) | 1.60 oz |
| Width | 3.7" |
| Width | 3.7" |
