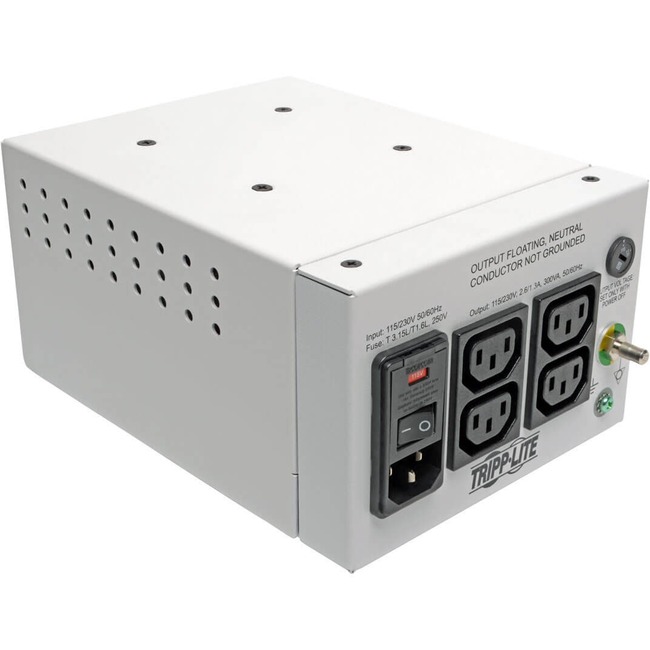

Tripp Lite Isolation Transformer Hospital Dual-Voltage 115/230V 300W 4 C13
New
Tripp Lite Isolation Transformer Hospital Dual-Voltage 115/230V 300W 4 C13 - 300 VA - 120 V AC, 230 V AC Input - 115 V AC, 230 V AC Output
| $662.97 Retail $1,077.44 |
- Protects sensitive equipment from EMI/RFI line noise and surges
- Cumulative leakage current less than 50 µA
- Automatically shuts down all outlets in case of overload
- Offers complete isolation from input AC mains power
- Ideal for use in any industrial, network or medical environment
You may be also interested
$399.17
$589.00
$358.34
$602.78
$87.10
$140.00
$1,219.93
$1,808.36
$370.10
$492.00
$1,963.95
$2,882.98
$163.31
$244.20
$205.15
$208.00
$440.56
$646.88
$2,453.46
$4,014.00
$1,269.89
$2,063.36
$489.92
$796.00
$949.01
$1,779.95
$320.52
$484.84
$726.96
$1,067.04
$992.03
$1,456.00
$1.03
$1.19
$1,314.60
$1,885.00
$12.77
$29.99
$641.65
$1,012.76
Tripp Lite Isolation Transformer Dual-Voltage 115/230V 300W Medical-Grade - 300 VA - 120 V AC, 230 V AC Input - 115 V AC, 230 V AC Output
300 VA - 120 V AC, 230 V AC Input - 115 V AC, 230 V AC Output
300 VA - 120 V AC, 230 V AC Input - 115 V AC, 230 V AC Output
Product Specifications
| Input Receptacles | IEC 60320 C14 |
| Input Receptacles | IEC 60320 C14 |
| Output Receptacle Detail | 4 x IEC 60320 C13 |
| Output Receptacle Detail | 4 x IEC 60320 C13 |
| Output Receptacles | IEC 60320 C13 |
| Output Receptacles | IEC 60320 C13 |
| Shipping Depth | 12.80" |
| Shipping Depth | 12.80" |
| Shipping Height | 8.27" |
| Shipping Height | 8.27" |
| Shipping Width | 9.84" |
| Shipping Width | 9.84" |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Certifications & Standards |
|
| Certifications & Standards |
|
| Country of origin | China |
| Country of origin | China |
| Depth | 7.9" |
| Depth | 7.9" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Form factor | Cabinet |
| Form factor | Cabinet |
| Height | 4.3" |
| Height | 4.3" |
| Input voltage | 120 V AC |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | IS300HGDV |
| Manufacturer Part Number | IS300HGDV |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The IS300HGDV Isolator® Series Dual-Voltage 115/230V 300W 50/60Hz Medical-Grade™ Transformer with full CAN/ES/IEC/EN 60601-1 listing is ideal for protecting sensitive electronic equipment in patient-care vicinities. It can be configured for either step-up voltage step-down voltage or pass-through voltage operation. Along with line isolation and continuous EMI/RFI line noise filtering its surge protection rating of 240 joules suppresses excess voltage to prevent it from damaging connected equipment. An internal low-impedance isolation transformer component offers 100% isolation from the input mains AC line. Faraday shield reduces the cumulative leakage current of the IS300HGDV and connected equipment to levels less than 50 microamps while removing utility switching transients and harmonics generated by other on-site loads and reducing the impact of utility or lightning related surge conditions. Transformer filtering provides continuous common-mode noise rejection with no wearable parts. The IS300HGDV reduces 6000V IEEE 587 Category A and B ring wave and combination wave test surges to only 0.5V common mode. Components connect to four C13 outlets with fuse overload protection and a lighted on/off switch. The rugged all-metal unit housing ships ready for placement in any industrial medical office network or audio/video environment. Requires a C14-to-C13 AC input cord (sold separately). |
| Marketing Information | The IS300HGDV Isolator® Series Dual-Voltage 115/230V 300W 50/60Hz Medical-Grade™ Transformer with full CAN/ES/IEC/EN 60601-1 listing is ideal for protecting sensitive electronic equipment in patient-care vicinities. It can be configured for either step-up voltage step-down voltage or pass-through voltage operation. Along with line isolation and continuous EMI/RFI line noise filtering its surge protection rating of 240 joules suppresses excess voltage to prevent it from damaging connected equipment. An internal low-impedance isolation transformer component offers 100% isolation from the input mains AC line. Faraday shield reduces the cumulative leakage current of the IS300HGDV and connected equipment to levels less than 50 microamps while removing utility switching transients and harmonics generated by other on-site loads and reducing the impact of utility or lightning related surge conditions. Transformer filtering provides continuous common-mode noise rejection with no wearable parts. The IS300HGDV reduces 6000V IEEE 587 Category A and B ring wave and combination wave test surges to only 0.5V common mode. Components connect to four C13 outlets with fuse overload protection and a lighted on/off switch. The rugged all-metal unit housing ships ready for placement in any industrial medical office network or audio/video environment. Requires a C14-to-C13 AC input cord (sold separately). |
| Maximum Line Current | 3.15 A |
| Maximum Line Current | 3.15 A |
| Output voltage | 115 V AC |
| Output voltage | 115 V AC |
| Package Contents |
|
| Package Contents |
|
| Power Rating | 300 VA |
| Power Rating | 300 VA |
| Product color | White |
| Product color | White |
| Product Line | Isolator |
| Product Line | Isolator |
| Product Name | Isolator IS300HGDV Isolation Transformer |
| Product Name | Isolator IS300HGDV Isolation Transformer |
| Product Type | Isolation Transformer |
| Product Type | Isolation Transformer |
| Shipping Weight (Approximate) | 13.62 lb |
| Shipping Weight (Approximate) | 13.62 lb |
| UPC Alternates | 037332199980 |
| UPC Alternates | 037332199980 |
| Weight (Approximate) | 12.35 lb |
| Weight (Approximate) | 12.35 lb |
| Width | 5.5" |
| Width | 5.5" |
