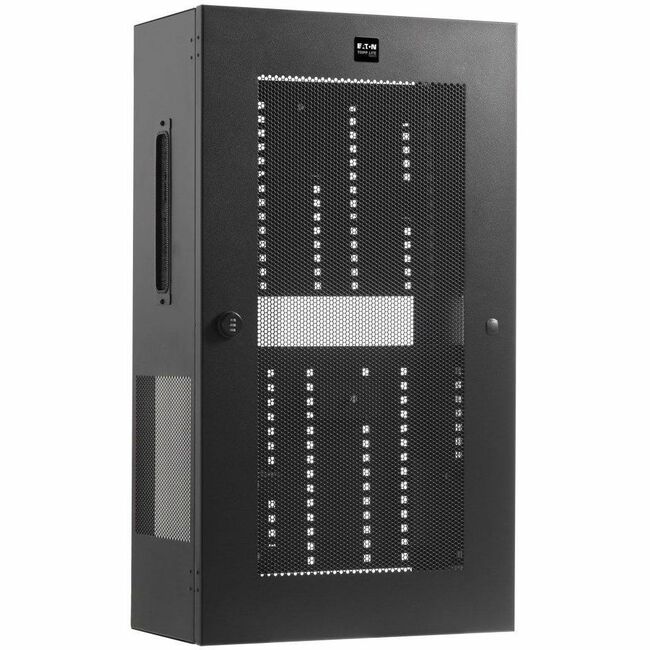

Tripp Lite Wallmount Rack Enclosure 5U Vertical Low-Profile Switch-Depth
| $523.43 Retail $808.20 |
- 2 removable 1U shelves with adjustable metal brackets secure non-rack equipment
- Houses 2 areas of 5U of rack equipment up to 16.5 in. deep (when 1U shelves are removed)
- Structured wiring cabinet extends less than 7 in. from wall with max capacity of 150 lb.
- 4 built-in RJ45 jacks connect installed modem, router and other equipment to network
- Ships fully assembled for immediate installation in back office area or network closet
- 5-year limited warranty
Black Powder Coat - 5U Rack Height - Steel
Product Specifications
| Cable Manager Type | Structured Wiring Enclosure |
| Product Material | Steel |
| Rack Depth | 16.50" |
| Rack Width | 19" |
| Brand Name | Tripp Lite |
| Compatibility |
|
| Country of origin | China |
| Depth | 10.70" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 35.56" |
| Limited Warranty | 5 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SRWF10UMOD |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Rugged 5U Enclosure Ideal for Housing Regular Rack and Non-Rack Network Equipment This heavy-duty steel enclosure secures and houses both regular rack equipment and other equipment not typically mounted in an EIA-standard 19-inch rack. It is recommended for wiring closets retail locations classrooms back offices and other areas with limited floor space where you need audio/video voice and data infrastructure to be secure organized and out of the way. Constructed with a durable black powder-coated finish the vertical equipment rack has a maximum load capacity of 150 pounds. Connect a Modem Router and Other Non-Rack Equipment Inside the Enclosure Two pre-installed but removable 1U shelves with adjustable metal equipment brackets attach to the cabinet's square mounting holes. Just place your modem router firewall switch power block or other non-rack equipment on the brackets and use the included thumbscrew to secure them to the rack. Four RJ45 jacks are built into the rack cabinet for connecting your devices to a network. Low-Profile Design Accommodates Switches Panels and Other Standard Rack Equipment Remove the two shelves to reveal two 5U areas for rack-mount equipment one above the other forming a total mounting space of 10U. The enclosure extends less than seven inches from the wall while housing equipment up to 16.5 inches deep including network switches and patch panels. Keeps Important Equipment Secure and Easy to Access The reversible front door locks securely with a built-in combination lock to help prevent damage tampering or theft. The vented cabinet allows air to flow freely and keep equipment cool. Brush-strip cable plates on both sides allow easy cable routing while preventing dust from entering. Easy Enclosure Deployment and Equipment Installation The structured wiring cabinet comes fully assembled and ready to mount to the wall. The equipment brackets adjust easily and allow for flexibility in storing routers and other devices. Meets Payment Card Industry Standards The SRWF10UMOD provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process store and/or transmit credit card information. |
| Package Contents |
|
| Product color | Black Powder Coat |
| Product Line | SmartRack |
| Product Name | SRWF10UMOD 5U Structured Wiring Enclosure |
| Product Type | Cable Organizer |
| Rack Height | 5U |
| UPC Alternates | 037332252876 |
| Weight (Approximate) | 42 lb |
| Width | 20" |
