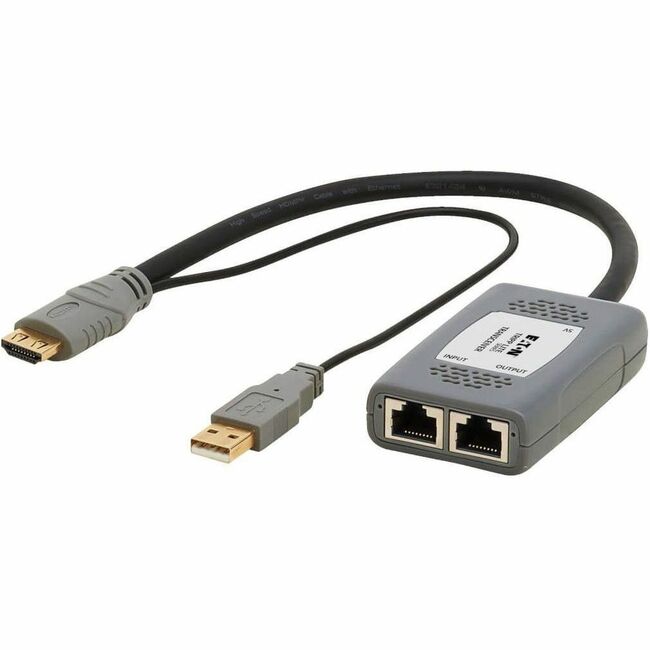

B127U-110-PH Video Extender Receiver
| $87.14 Retail $136.00 |
- Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) with High Dynamic Range (HDR)
- Lightweight pigtail receiver is USB-powered through display or power adapter
- Can be daisy-chained up to 4 times (920 ft. total) via additional receivers
- Plug-and-play operation with no software required for easy, immediate installation
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Source device with HDMI or DisplayPort output (computer, laptop, media server)
- Display device with HDMI input (HDTV, projector, monitor)
- B127U-Series transmitter or splitter
1 Output Device - 229.99 ft Range - 3 x Network (RJ-45) - 2 x USB - 1 x HDMI Out - 4K - 3840 x 2160 - Twisted Pair - Category 6 - Digital Signage System - TAA Compliant
Product Specifications
| Receiver Depth | 2.95" |
| Receiver Height | 0.73" |
| Receiver Weight (Approximate) | 8.80 oz |
| Receiver Width | 1.85" |
| Application/Usage | Digital Signage System |
| Connectivity technology | Wired |
| Environmental Certification | RoHS 3 |
| Environmental Certification | REACH |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Graphics Modes | 4K |
| Limited Warranty | 1 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | B127U-110-PH |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Features | DisplayPort Extender Receiver Recommended for Digital Signage in Schools and Businesses This 4K receiver is recommended for video presentations in conference rooms schools trade shows meeting facilities houses of worship retail settings hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. When connected to a B127USeries transmitter the B127U-110-PH helps extend 4K signals from an HDMI or DisplayPort source to an HDMI monitor up to 230 feet (70.1 meters) away with zero latency via user-supplied Cat6 cabling. The one-foot pigtail design makes the receiver easy to install especially in a tight space. Transmits 4K Video with Multi-Channel Audio HDR and 4:4:4 Color The B127U-110-PH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with uncompressed DTS-HD Dolby TrueHD and 7.1-channel digital audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K content with no complications. This receiver also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Create Daisy-Chain Installations with HDMI Outputs DisplayPort Outputs or Both The B127U-110-PH can be connected to additional B127U-110-PH HDMI receivers or B127U-110-PD DisplayPort receivers (sold separately) in a four-link daisy-chain installation. Each additional receiver adds up to 230 feet (70.1 meters) to the maximum video transmission distance and up to a total of 920 feet (280 meters) for the entire installation. Note: See the installation diagram in the owner's manual for more information. Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions The B127U-110-PH is backward compatible with 4K/30 Hz and 1080p resolutions via automatic switching allowing each connected monitor to display video at its maximum resolution without affecting the other outputs. Plug-and-Play Operation for Quick Setup and Immediate Use The receiver works right out of the box with no software required. A one-foot USB-A pigtail connector is the primary power source. Plug the USB connector on the receiver into a USB-A power adapter (such as U280-W01-QC3-1 sold separately) or USB-A port on the connected display. User-supplied 24 AWG Cat6 cabling connects the transmitter and receivers. Note: The receiver can also be powered through its MicroUSB port TAA-Compliant for GSA Schedule Purchases The B127U-110-PH is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
| Maximum Operating Distance | 229.99 ft |
| Maximum Video Resolution | 3840 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 3 |
| Number of USB Ports | 2 |
| Package Contents |
|
| Product color | Black |
| Product Name | B127U-110-PH Video Extender Receiver |
| Product Type | Video Extender Receiver |
| Twisted Pair Cable Standard | Category 6 |
| UPC Alternates | 037332281463 |
