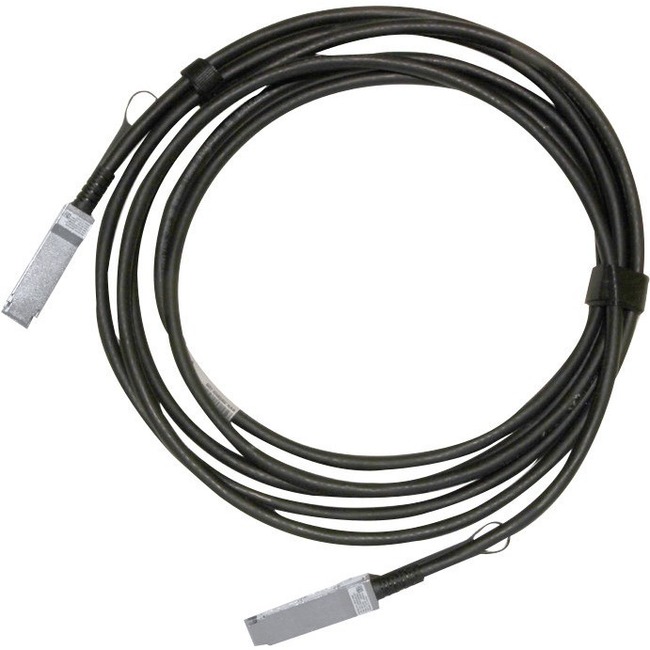

Mellanox 100Gb/s QSFP28 Direct Attach Copper Cable
New
Mellanox 100Gb/s QSFP28 Direct Attach Copper Cable - 9.84 ft QSFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - LSZH - 26 AWG - Black
| $179.64 |
- Up to 100Gb/s data rate
- SFF-8665 compliant QSFP28
- Operating case temperature 0-70°C
- Single 3.3V supply voltage
- Bit Error Rate (BER) better than 1E-15 with Mellanox systems
- Hot pluggable
- RoHS compliant
- LSZH (Low Smoke Zero Halogen) jacket
- LF (Lead Free) HF (Halogen Free) PCB
- SFF-8636 compliant I2 C management interface
You may be also interested
$667.16
$347.76
$47.60
$10.43
$1,080.84
$1,988.00
$26.20
$24.00
$13,621.42
$18,358.89
$35.35
$55.70
$29.23
$33.64
$28.82
$3,141.59
$37.93
$39.99
$647.29
$809.36
$105.92
$109.99
$1,320.30
$12.96
$11.99
$306.61
$106.08
$1,646.40
Mellanox 100Gb/s QSFP28 Direct Attach Copper Cable - 9.84 ft QSFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - LSZH - 26 AWG - Black
9.84 ft QSFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - LSZH - 26 AWG - Black
9.84 ft QSFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - LSZH - 26 AWG - Black
Product Specifications
| Connector on First End Details | 1 x QSFP28 Network |
| Connector on First End Details | 1 x QSFP28 Network |
| Connector Type on First End | QSFP28 Network |
| Connector Type on First End | QSFP28 Network |
| Jacket Material | Low Smoke Zero Halogen |
| Jacket Material | Low Smoke Zero Halogen |
| Product Material | Copper |
| Product Material | Copper |
| American Wire Gauge | 26 AWG |
| American Wire Gauge | 26 AWG |
| Brand Name | Mellanox |
| Brand Name | Mellanox |
| Cable length | 9.84 ft |
| Cable length | 9.84 ft |
| Cable type | QSFP28 |
| Cable type | QSFP28 |
| Data transfer rate | 100 Gbit/s |
| Data transfer rate | 100 Gbit/s |
| Device Supported | Network Device |
| Device Supported | Network Device |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Features | Lead-free |
| Features | Lead-free |
| Features | Halogen Free |
| Features | Passive |
| Features | Passive |
| Features | Bendable |
| Features | Bendable |
| Features | Halogen Free |
| Jacket Type | LSZH |
| Jacket Type | LSZH |
| Limited Warranty | 1 Year |
| Limited Warranty | 1 Year |
| Manufacturer | NVIDIA Corporation |
| Manufacturer | NVIDIA Corporation |
| Manufacturer Part Number | MCP1600-E003E26 |
| Manufacturer Part Number | MCP1600-E003E26 |
| Manufacturer Website Address | http://www.nvidia.com |
| Manufacturer Website Address | http://www.nvidia.com |
| Marketing Information | Mellanox® MCP1600-E0xxEy DAC cables are high speed cost-effective alternatives to fiber optics in InfiniBand 100Gb/s EDR applications. Mellanox QSFP28 passive copper cables contain four high-speed copper pairs each operating at data rates of up to 25Gb/s. Each QSFP28 port comprises an EEPROM providing product information which can be read by the host system. Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability. |
| Marketing Information | Mellanox® MCP1600-E0xxEy DAC cables are high speed cost-effective alternatives to fiber optics in InfiniBand 100Gb/s EDR applications. Mellanox QSFP28 passive copper cables contain four high-speed copper pairs each operating at data rates of up to 25Gb/s. Each QSFP28 port comprises an EEPROM providing product information which can be read by the host system. Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability. |
| Product color | Black |
| Product color | Black |
| Product Line | LinkX |
| Product Line | LinkX |
| Product Name | 100Gb/s QSFP28 Direct Attach Copper Cable |
| Product Name | 100Gb/s QSFP28 Direct Attach Copper Cable |
| Product Type | Network Cable |
| Product Type | Network Cable |
