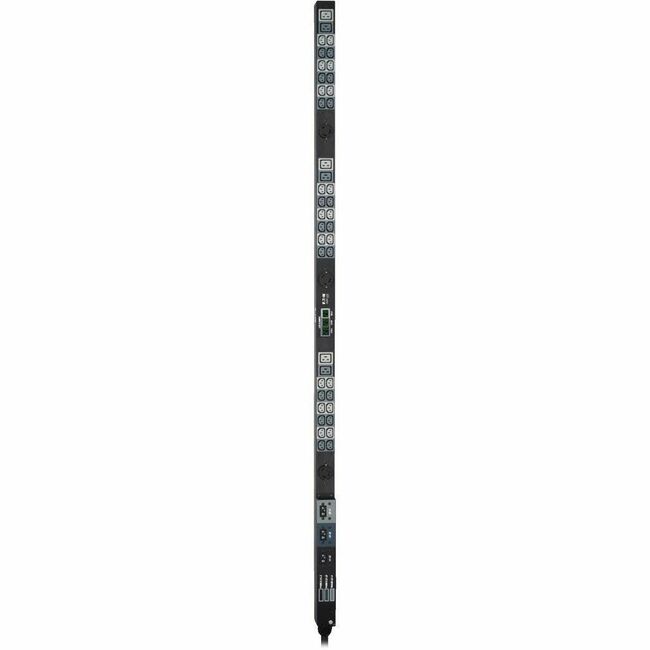

Tripp Lite PDU 3-Phase Metered 208V 14.4kW 36 C13; 6 C19; 3 L6-30R 0URM
| $139.57 Retail $1,499.48 |
- Metered 14.4kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount
- Reports load current per-phase via set of 3 built-in current meters
- Hubbell CS8365C 50A (3P+E) 208V 3 phase input; 6 ft. / 1.8m line cord
- 45 208V outlets total (36 C13, 6 C19, 3 L6-30R)
- Toolless button-mount installation; cord retention brackets included
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
6 x IEC 60320 C19, 36 x IEC 60320 C13, 3 x NEMA L6-30R - 14.40 kVA - Vertical Rackmount"
Product Specifications
| Mounting Orientation | Vertical |
| Mounting Orientation | Vertical |
| Power Rating (Watt) | 14.40 kW |
| Power Rating (Watt) | 14.40 kW |
| Receptacle Detail | 36 x IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Receptacle Detail | 3 x NEMA L6-30R |
| Receptacle Detail | 3 x NEMA L6-30R |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Receptacle Detail | 36 x IEC 60320 C13 |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Depth | 2.2" |
| Depth | 2.2" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Height | 70" |
| Height | 70" |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDU3MV6H50A |
| Manufacturer Part Number | PDU3MV6H50A |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. |
| Marketing Information | Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Output voltage | 208 V AC |
| Output voltage | 208 V AC |
| Package Contents |
|
| Package Contents |
|
| Plug/Connector Type | Hubbell CS8365C |
| Plug/Connector Type | Hubbell CS8365C |
| Product Name | Metered PDU3MV6H50A 45-Outlets PDU |
| Product Name | Metered PDU3MV6H50A 45-Outlets PDU |
| Product Series | Metered |
| Product Series | Metered |
| Product Type | PDU |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Protection Type | Overload Protection |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | NEMA L6-30R |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | NEMA L6-30R |
| Receptacle Type | IEC 60320 C13 |
| UPC Alternates | 037332163882 742712005538 |
| UPC Alternates | 037332163882 742712005538 |
| Weight (Approximate) | 14.50 lb |
| Weight (Approximate) | 14.50 lb |
| Width | 2.7" |
| Width | 2.7" |
