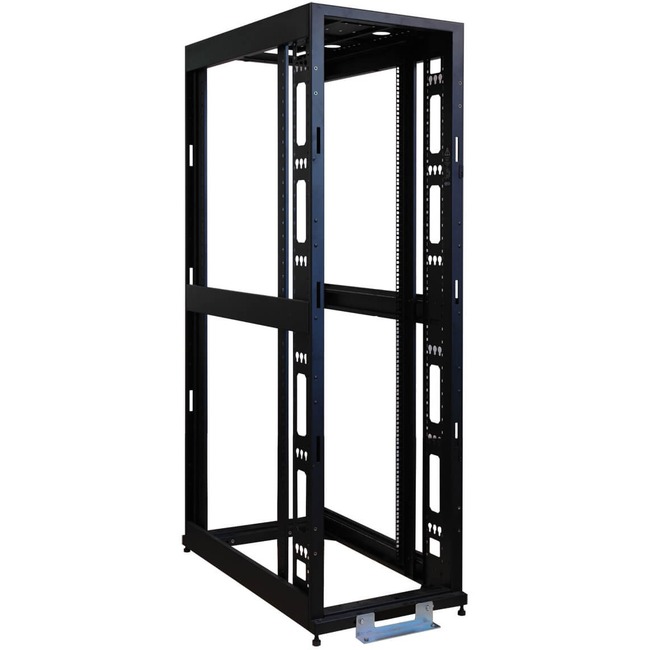

Tripp Lite 45U 4-Post Open Frame Rack Cabinet Square Holes 3000lb Capacity
| $1,104.15 Retail $1,724.40 |
- 45U SmartRack Premium open frame rack
- 4 interior vertical posts with unthreaded square hole openings
- Standard 24" (600mm) width and 42" (1050mm) depth for optimizing floor space
- Ships fully assembled
- 3000 lb stationary / 2250 lb rolling load capacity
- Preinstalled casters and leveling feet
- Includes 50 pieces of M6 cage nuts and 50 pieces of M6 screws (equipment mounting hardware)
45U Rack Height x 19" Rack Width - Rack-mountable - Black - 2250 lb Dynamic/Rolling Weight Capacity - 3000 lb Static/Stationary Weight Capacity
Product Specifications
| Dynamic/Rolling Weight Capacity | 2250 lb |
| Dynamic/Rolling Weight Capacity | 2250 lb |
| Rack Width | 19" |
| Rack Width | 19" |
| Static/Stationary Weight Capacity | 3000 lb |
| Static/Stationary Weight Capacity | 3000 lb |
| Units Per Pallet | 1 |
| Units Per Pallet | 1 |
| Additional Information |
|
| Additional Information |
|
| Assembly Required | No |
| Assembly Required | No |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Certifications & Standards |
|
| Certifications & Standards |
|
| Country of origin | China |
| Country of origin | China |
| Depth | 43" |
| Depth | 43" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Height | 83.8" |
| Height | 83.8" |
| Limited Warranty | 5 Year |
| Limited Warranty | 5 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SR45UBEXPND |
| Manufacturer Part Number | SR45UBEXPND |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The SR45UBEXPND is 45U SmartRack enclosure with NO doors and NO side panels. The 'EXP' version is an expansion model used when several cabinets are bayed together. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations. The SR45UBEXPND houses 3000 lb of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference. Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter. All components of the SR45UBEXPND are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. To simplify deployment the SR45UBEXPND comes with preinstalled casters that enable it to be easily maneuvered into the desired location where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances. The SR45UBEXPND comes with a 5-year product warranty. As part of the SmartRack family the SR45UBEXPND is compatible with Tripp Lite's extensive range of rackmount accessories enabling you to customize your solution to meet any requirement. |
| Marketing Information | The SR45UBEXPND is 45U SmartRack enclosure with NO doors and NO side panels. The 'EXP' version is an expansion model used when several cabinets are bayed together. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations. The SR45UBEXPND houses 3000 lb of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference. Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter. All components of the SR45UBEXPND are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. To simplify deployment the SR45UBEXPND comes with preinstalled casters that enable it to be easily maneuvered into the desired location where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances. The SR45UBEXPND comes with a 5-year product warranty. As part of the SmartRack family the SR45UBEXPND is compatible with Tripp Lite's extensive range of rackmount accessories enabling you to customize your solution to meet any requirement. |
| Package Contents |
|
| Package Contents |
|
| Product color | Black |
| Product color | Black |
| Product Line | SmartRack |
| Product Line | SmartRack |
| Product Name | 45U 4-Post SmartRack Premium Open Frame Rack |
| Product Name | 45U 4-Post SmartRack Premium Open Frame Rack |
| Product Type | Rack Frame |
| Product Type | Rack Frame |
| Rack Height | 45U |
| Rack Height | 45U |
| UPC Alternates | 037332174567 |
| UPC Alternates | 037332174567 |
| Weight (Approximate) | 147 lb |
| Weight (Approximate) | 147 lb |
| Width | 23.6" |
| Width | 23.6" |
