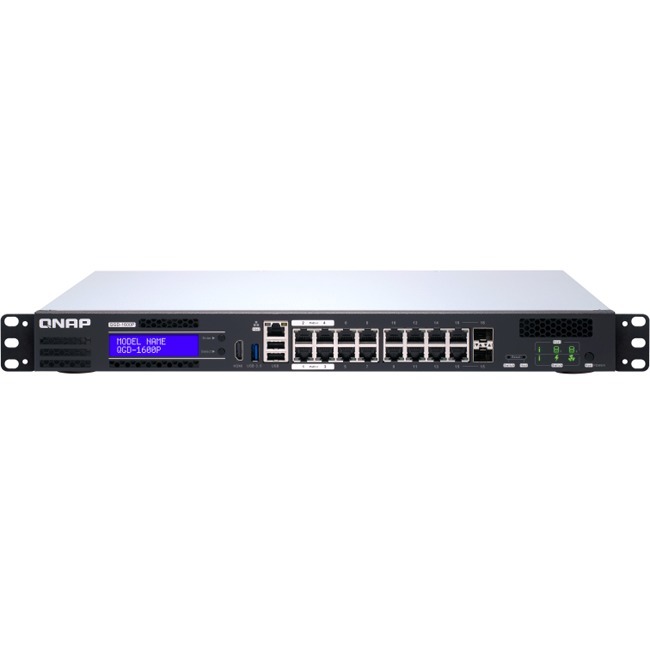

QNAP QGD-1600P-8G Ethernet Switch
| $25.13 Retail $699.00 |
- Expand your network capacity with the help of 16 networking ports and transfer your data quickly and easily
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports layer 3 switching for enhanced performance and usability
- Management capability provides control over setup and configuration of your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- The desktop installation makes it ideal for deployments outside the wiring closet
16 Ports - Manageable - 3 Layer Supported - Modular - 2 SFP Slots - Optical Fiber, Twisted Pair - Rack-mountable, Rail-mountable, Desktop - 2 Year Limited Warranty
Product Specifications
| Number of Total Expansion Slots | 2 |
| Total Number of Network Ports | 16 |
| Brand Name | QNAP |
| Country of origin | Taiwan |
| Depth | 15.9" |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP (mini-GBIC) |
| Form factor | Rack-mountable |
| Form factor | Desktop |
| Form factor | Rail-mountable |
| Height | 6.3" |
| Layer Supported | 3 |
| Limited Warranty | 2 Year |
| Manageable | Yes |
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | QGD-1600P-8G-US |
| Manufacturer Website Address | http://www.qnap.com |
| Marketing Information | QNAP's QGD-1600P is the world's first PoE managed switch that supports Virtual Machines (VMs). It features 4-port 60-watt and 12-port 30-watt Gigabit PoE (with two PoE/SFP Combo ports) for highly flexible networking environment deployment. With a dual-CPU design the QGD-1600P provides both Layer 2 management functions for VM and QTS applications. The QGD-1600P also features Software-Defined Networking (SDN) enabling it to function as a NAS NVR router firewall and AP controller for IP surveillance network security storage expansion and wireless LAN management applications. Therefore the Guardian series offers SMBs a cost-optimized and centrally managed LAN deployment solution. QGD-1600P is compliant with the latest IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards and offers 4-port 60-watt and 12-port 30-watt Gigabit PoE capability. QGD-1600P can supply a total power budget of 370 watts to meet the demands of high-powered devices (PDs). QGD-1600P provides comprehensive Layer 2 management features such as VLAN LACP QoS IGMP Snooping and Wake-on-LAN for IT administrators to efficiently control the network bandwidth and enhance security via the user-friendly switch management web interface. QuNetSwitch offers a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks. Additionally the overview dashboard and graphical statistics analysis show IT administrators all switch information and pored devices at a glance making central management of high-power devices intuitive and easy. PCIe expandability allows for 10GbE network cards QM2 dual-port M.2 SSD/10GbE cards USB 3.1 Gen 2 (10Gbps) cards or Wireless Adapters. Host containerized applications and virtual machines with various operating systems. Flexibly install virtual router firewall or wireless LAN management software for various networking management applications. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 1000Base-X |
| Network Technology | 1000Base-T |
| Package Contents |
|
| Port/Expansion Slot Details | 12 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE++ |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet TP/SFP Combo |
| Power source | Power Supply |
| Product Model | QGD-1600P-8G |
| Product Name | QGD-1600P-8G Ethernet Switch |
| Product Series | QGD |
| Product Type | Ethernet Switch |
| UPC Alternates | 885022018116 |
| Weight (Approximate) | 9.72 lb |
| Width | 20.8" |
