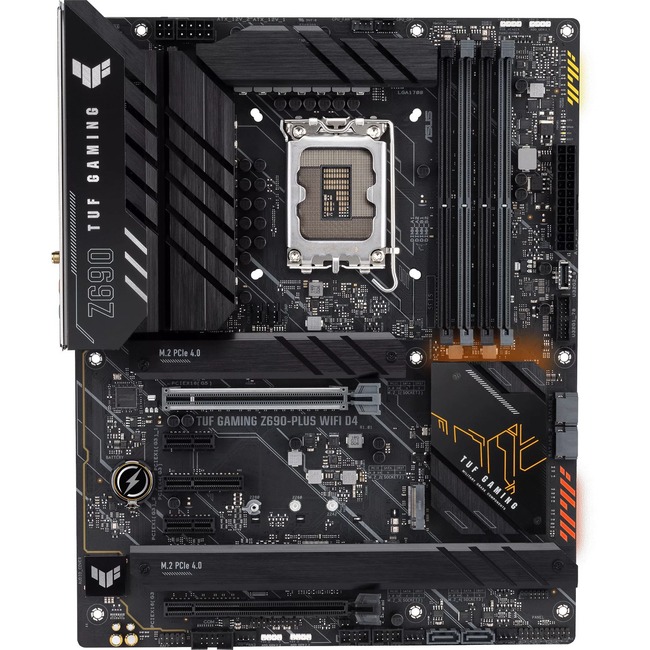

TUF GAMING Z690-PLUS WIFI D4 Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX
| $0.01 Retail $259.99 |
- Compatible Pentium Gold processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- RAID supported levels provide data reliability and fault tolerance
- Enjoy the freedom of Wi-Fi and connect devices faster
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
Product Specifications
| Chipset Manufacturer | Intel |
| Chipset Model | Z690 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 3600 MHz |
| Memory Speed Supported | 5000 MHz |
| Memory Speed Supported | 3733 MHz |
| Memory Speed Supported | 5133 MHz |
| Memory Speed Supported | 4266 MHz |
| Memory Speed Supported | 3200 MHz |
| Memory Speed Supported | 3400 MHz |
| Memory Speed Supported | 3333 MHz |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 4000 MHz |
| Memory Speed Supported | 3866 MHz |
| Memory Speed Supported | 3000 MHz |
| Memory Speed Supported | 2666 MHz |
| Memory Speed Supported | 2400 MHz |
| Memory Speed Supported | 4400 MHz |
| Memory Speed Supported | 5333 MHz |
| Memory Speed Supported | 4133 MHz |
| Memory Speed Supported | 4600 MHz |
| Memory Speed Supported | 2800 MHz |
| Memory Speed Supported | 2133 MHz |
| Memory Speed Supported | 3466 MHz |
| Memory Speed Supported | 2933 MHz |
| Number of Memory Slots | 4 |
| Number of Onboard USB 3.2 Ports | 3 |
| Number of PCI Express x1 Slots | 2 |
| Onboard Video | CPU Dependent Video |
| Processor Generation Supported | 12th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Core i5 |
| Processor Supported | Pentium Gold |
| Processor Supported | Core i9 |
| Processor Supported | Celeron |
| Processor Supported | Core i7 |
| S/PDIF | Yes |
| Total Number of Onboard USB Ports | 7 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Audio Channels | 7.1 |
| Brand Name | TUF |
| Controller Type | Serial ATA/600 |
| Depth | 9.6" |
| Environmental Certification | RoHS |
| Form factor | ATX |
| Limited Warranty | 3 Year |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | TUF GAMING Z690-PLUS WIFI D4 |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | Intel® Z690 (LGA 1700) ATX gaming motherboard 15 DrMOS power stages PCIe® 5.0 DDR4 memory four M.2 slots WiFi 6 and Intel 2.5 Gb Ethernet HDMI® DisplayPort™ USB 3.2 Gen 2x2 Type-C® front USB 3.2 Gen 2 Type C SATA 6 Gbps Thunderbolt™ 4 support and Aura Sync RGB lighting
Durable. Stable. Reliable. ASUS TUF GAMING Z690-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components an upgraded power solution and a comprehensive cooling system this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically TUF GAMING Z690-PLUS WIFI D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series. Rock-Solid Performance With upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core™ processors plus support for faster memory and storage TUF GAMING Z690 motherboards are the perfect foundation for your next high-core-count battle rig. DrMOS The onboard VRMs feature 14+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package delivering the power and efficiency that 12th Gen Intel Core processors demand.The power stages are each rated to handle 80 amperes to provide stable performance for current and future Intel processors. Easy PC DIY TUF GAMING motherboards are designed to be easy to set up and configure just the way you want - even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy while Armoury Crate software provides Fan Xpert 4 and hardware information and offers full full control of Two-Way AI Noise Cancellation RGB lighting and peripheral settings. The TUF GAMING platform gives you the arsenal you need to build and optimize your dream gaming rig without unnecessary complexity. Build with Confidence TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts such as PC cases power supplies CPU coolers memory kits and more. With new partnerships and components being added regularly the TUF Gaming Alliance will continue to grow even stronger. Immersive Gaming TUF GAMING Z690 motherboards provide a high-performance gaming package with a long list of features to improve your experiences including ultrafast networking for smoother online gameplay pristine audio with positional cues for FPS gaming and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. |
| Memory form factor | UDIMM |
| Memory form factor | DIMM |
| Memory Technology | DDR4 SDRAM |
| Package Contents |
|
| Product Model | GAMING Z690-PLUS WIFI D4 |
| Product Name | GAMING Z690-PLUS WIFI D4 Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 10 |
| RAID Levels | 5 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| Total Number of USB Ports | 8 |
| UPC Alternates | 195553438773 715663108009 |
| Width | 12" |
