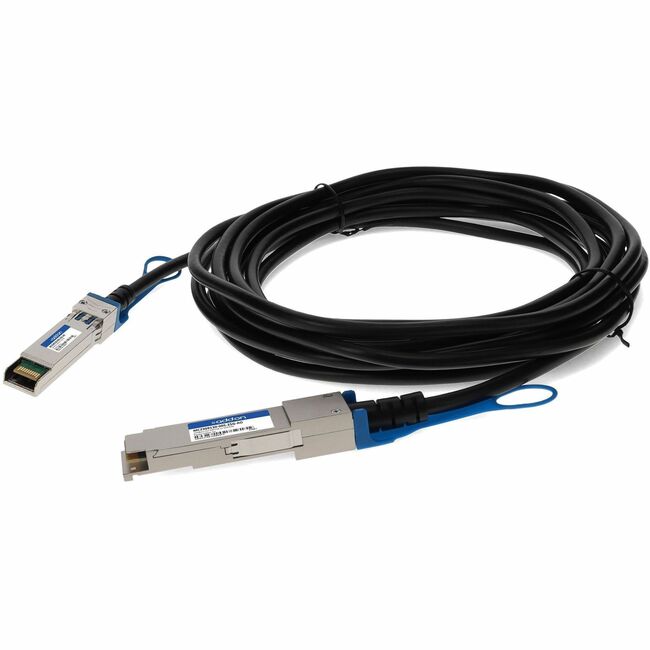

AddOn Twinaxial Network Cable
| $230.40 Retail $390.00 |
- QSFP28 End: Compliant with QSFP28 MSA specifications
- SFP28 End: Compliant with SFP28 MSA specifications
- 1 independent duplex channels operating at 25Gbps
- AC coupled inputs and outputs
- 100 Ohm differential impedance
- 26AWG to 30AWG Wire Gauge
- All-metal housing for superior EMI performance
- Single power supply 3.3V, low power consumption
- Operating Temperature: 0°C to 70°C
- ROHS Compliant
16.40 ft Twinaxial Network Cable for Network Device, Transceiver - First End: 1 x QSFP28 Network - Second End: 1 x SFP28 Network - 25 Gbit/s - 26 AWG - Black - 1 - TAA Compliant
Product Specifications
| Product Material | Copper |
| American Wire Gauge | 26 AWG |
| Cable length | 16.40 ft |
| Cable type | Twinaxial |
| Color | Black |
| Connector on First End | 1 x QSFP28 Network |
| Connector on First End | QSFP28 Network |
| Connector on Second End | SFP28 - Network |
| Connector on Second End | 1 x SFP28 Network |
| Country of origin | United States |
| Data transfer rate | 25 Gbit/s |
| Device Supported | Transceiver |
| Device Supported | Network Device |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS 2 |
| Environmentally Friendly | Yes |
| Features | Lead-free |
| Features | Passive |
| Features | EMI/EMC Shield |
| Features | EMI Protection |
| Limited Warranty | Lifetime |
| Manufacturer | AddOn |
| Manufacturer Part Number | MC2309130-005-25G-AO |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Marketing Information | This is a Mellanox® MC2309130-005-25G 25GBase-CU QSFP28 to 1xSFP28 direct attach cable that operates over passive copper with a maximum reach of 5.0m (16.4ft). It has been programmed uniquely serialized and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty. |
| Packaged Quantity | 1 |
| Product Name | Twinaxial Network Cable |
| Product Type | Network Cable |
| UPC Alternates | 195285282828 |
