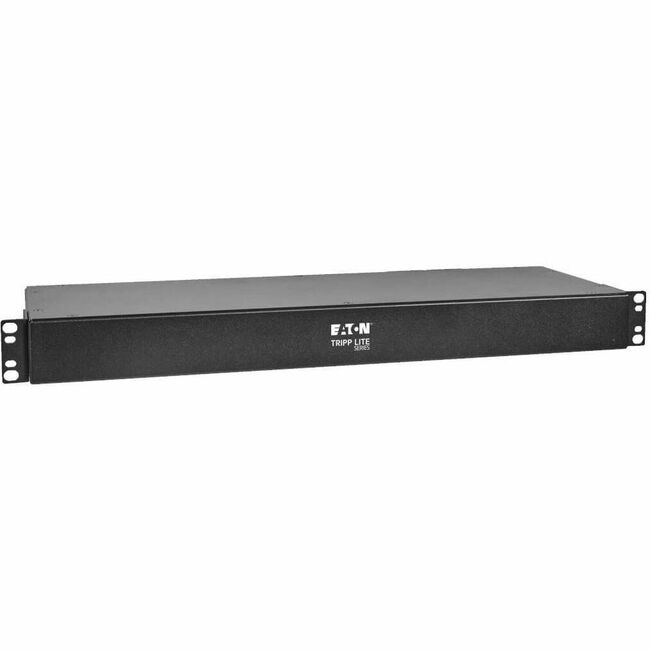

Tripp Lite PDU Metered 8 C13 2 C19 3.2/3.8kW 208/240V L6-20P 6ft Cord 1URM

USER INTERFACE ALERTS & CONTROLS

• Front Panel LCD Display: Digital display reports total PDU output current in amps
• Switches: n/a

• Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)
• Relative Humidity: 5-95% non-condensing

SPECIAL FEATURES

• TVSS Grounding: Rear grounding lug

USER INTERFACE ALERTS & CONTROLS

• Front Panel LCD Display: Digital display reports total PDU output current in amps
• Switches: n/a

• Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)
• Relative Humidity: 5-95% non-condensing

SPECIAL FEATURES

• TVSS Grounding: Rear grounding lug

STANDARDS & COMPLIANCE

• Certifications: Tested to UL 60950-1 (USA); Tested to CSA (Canada) RoHS compliant TAA compliant
• Certification Details: Series Number (s) AGPD7985; Safety Standards (Canada) CAN/CSA-C22.2 No. 60950-1:2007 (2nd Ed); Safety Standards (U.S.) UL60950-1:2007 (2nd Ed); FCC/ICES Compliant CLASS A; 47 CFR FCC PART 15 SUBPART B; Safety Standards (International) IEC60950-1:2005 (2nd Ed)+A1:2009; NOM; RETIE EMI/EMC Standards Class A; EN55022:2010+AC:2011; EN55024:2010

STANDARDS & COMPLIANCE

• Certifications: Tested to UL 60950-1 (USA); Tested to CSA (Canada) RoHS compliant TAA compliant
• Certification Details: Series Number (s) AGPD7985; Safety Standards (Canada) CAN/CSA-C22.2 No. 60950-1:2007 (2nd Ed); Safety Standards (U.S.) UL60950-1:2007 (2nd Ed); FCC/ICES Compliant CLASS A; 47 CFR FCC PART 15 SUBPART B; Safety Standards (International) IEC60950-1:2005 (2nd Ed)+A1:2009; NOM; RETIE EMI/EMC Standards Class A; EN55022:2010+AC:2011; EN55024:2010

Single-Phase PDU Distributes and Monitors Network-Grade Power in Real Time
This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications small computer rooms and other equipment rack applications the PDUMH20HVL66 features eight C13 and two C19 208/230V outlets for connecting equipment. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.

Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels even while adding new equipment can keep your TCO (total cost of ownership) low.

Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. The six-foot cord with NEMA L6-20P input plug connects the single-phase PDU to a protected UPS system generator or mains input source for reliable multi-outlet power distribution.

TAA-Compliant for GSA Schedule Purchases
The PDUMH20HVL66 is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Single-Phase PDU Distributes and Monitors Network-Grade Power in Real Time
This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications small computer rooms and other equipment rack applications the PDUMH20HVL66 features eight C13 and two C19 208/230V outlets for connecting equipment. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.

Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels even while adding new equipment can keep your TCO (total cost of ownership) low.

Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. The six-foot cord with NEMA L6-20P input plug connects the single-phase PDU to a protected UPS system generator or mains input source for reliable multi-outlet power distribution.

TAA-Compliant for GSA Schedule Purchases
The PDUMH20HVL66 is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

• PDUMH20HVL66 10-Outlets PDU
• 10 x Plug-lock Insert Sleeves
• Rack-mounting Hardware
• Owner's Manual

• PDUMH20HVL66 10-Outlets PDU
• 10 x Plug-lock Insert Sleeves
• Rack-mounting Hardware
• Owner's Manual
