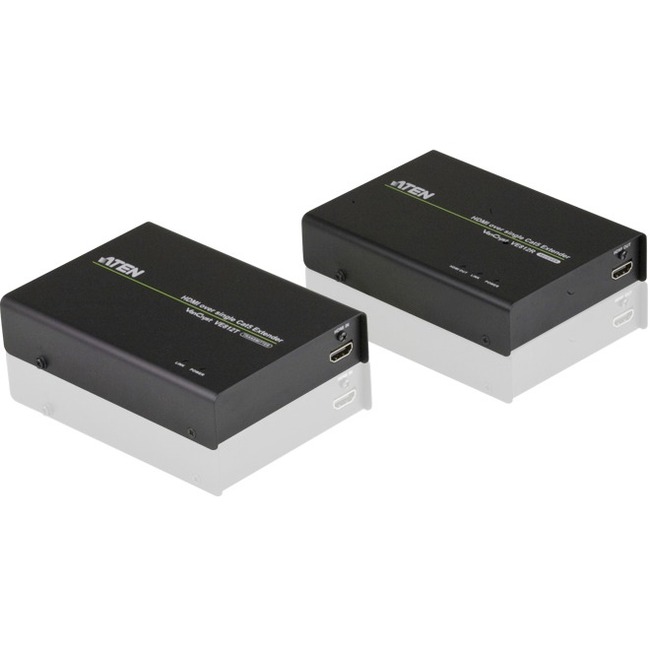

ATEN VE812R HDMI Over Single Cat 5 Receiver-TAA Compliant
| $192.76 Retail $260.00 |
- Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
- HDMI (3D, Deep Color, 4k); HDCP Compatible
- Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
- Long distance transmission - up to 100m
- Selects the optimum EDID settings for smooth power-up and highest quality display
- Supports up to 340MHz bandwidth for high performance video
- Supports Dolby True HD and DTS HD Master Audio
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
1 Output Device - 328.08 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 4K - 4096 x 2160 - Category 5e
Product Specifications
| Product Material | Metal |
| Receiver Height | 1.18" |
| Receiver Weight (Approximate) | 15.17 oz |
| Receiver Width | 4.06" |
| Brand Name | ATEN |
| Connectivity technology | Wired |
| Country of origin | Taiwan |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Graphics Modes | 4K |
| Input voltage | 5.3 V DC |
| Length | 5.6" |
| Limited Warranty | 2 Year |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | VE812R |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | The VE812 HDMI over Single Cat 5 Extender enables an HDMI display to be located up to 100 meters away from the source device. It can conveniently be extended using only one Cat 5e cable which is cost-effective.
|
| Maximum Operating Distance | 328.08 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents |
|
| Product Name | VE812R HDMI Over Single Cat 5 Receiver |
| Product Type | Video Extender Receiver |
| Twisted Pair Cable Standard | Category 5e |
| UPC Alternates | 672792004568 |
