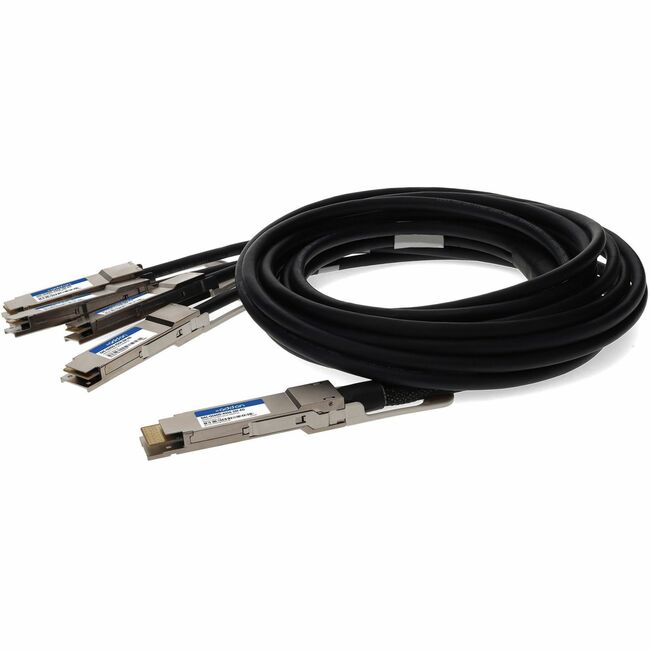

AddOn Twinaxial Network Cable
| $531.38 Retail $900.00 |
- Compliant with QSFP-DD MSA Specification Rev 3.4
- SFF-8679 electrical interface compliant
- SFF-8636 management interface support
- Compatible with IEEE 802.3bj, IEEE 802.3by, IEEE 802.3cd
- Supports aggregate data rates of 100 and 400Gbps
- I2C for EEPROM communication
- Pull-to-release slide latch design
- 28AWG through 32AWG cable
- Excellent EMI/EMC performance 360-degree cable shield termination
- Advantage dual side pre-solder automated assembly technologies
6.56 ft Twinaxial Network Cable for Network Device, Transceiver, Server, Router, Switch - First End: 1 x QSFP-DD Network - Second End: 4 x QSFP56 Network - 400 Gbit/s - Shielding - VW-1 - 28 AWG - 1 - TAA Compliant
Product Specifications
| Connector on First End Details | 1 x QSFP-DD Network |
| Connector on Second End Details | 4 x QSFP56 Network |
| Connector Type on First End | QSFP-DD Network |
| Connector Type on Second End | QSFP56 Network |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| American Wire Gauge | 28 AWG |
| American Wire Gauge | 28 AWG |
| Cable length | 6.56 ft |
| Cable length | 6.56 ft |
| Cable type | Twinaxial |
| Cable type | Twinaxial |
| Connector on First End | QSFP-DD Network |
| Connector on First End | QSFP-DD Network |
| Connector on First End | 1 x QSFP-DD Network |
| Connector on First End | 1 x QSFP-DD Network |
| Connector on Second End | 4 x QSFP56 Network |
| Connector on Second End | QSFP56 - Network |
| Connector on Second End | QSFP56 - Network |
| Connector on Second End | 4 x QSFP56 Network |
| Country of origin | United States |
| Country of origin | United States |
| Data transfer rate | 400 Gbit/s |
| Data transfer rate | 400 Gbit/s |
| Device Supported | Router |
| Device Supported | Server |
| Device Supported | Transceiver |
| Device Supported | Switch |
| Device Supported | Network Device |
| Device Supported | Router |
| Device Supported | Transceiver |
| Device Supported | Switch |
| Device Supported | Network Device |
| Device Supported | Server |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS-6 |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS-6 |
| Features | EMI/EMC Shield |
| Features | Pull Tab Latch |
| Features | Passive |
| Features | Lead-free |
| Features | Lead-free |
| Features | EMI/EMC Shield |
| Features | Pull Tab Latch |
| Features | Passive |
| Features | Flexible |
| Features | Flexible |
| Jacket Type | VW-1 |
| Jacket Type | VW-1 |
| Limited Warranty | Lifetime |
| Limited Warranty | Lifetime |
| Manufacturer | AddOn |
| Manufacturer | AddOn |
| Manufacturer Part Number | DAC-Q56DD-4Q56-2M-AO |
| Manufacturer Part Number | DAC-Q56DD-4Q56-2M-AO |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Marketing Information | This is a Dell® DAC-Q56DD-4Q56-2M compatible TAA compliant 400GBase-CU QSFP-DD 400G to 4xQSFP56 100G PAM-4 direct attach cable that operates over passive copper with a maximum reach of 2.0m (6.6ft). It has been programmed uniquely serialized and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty. |
| Marketing Information | This is a Dell® DAC-Q56DD-4Q56-2M compatible TAA compliant 400GBase-CU QSFP-DD 400G to 4xQSFP56 100G PAM-4 direct attach cable that operates over passive copper with a maximum reach of 2.0m (6.6ft). It has been programmed uniquely serialized and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty. |
| Packaged Quantity | 1 |
| Packaged Quantity | 1 |
| Product Name | Twinaxial Network Cable |
| Product Name | Twinaxial Network Cable |
| Product Type | Network Cable |
| Product Type | Network Cable |
| Shielding | Yes |
| Shielding | Yes |
