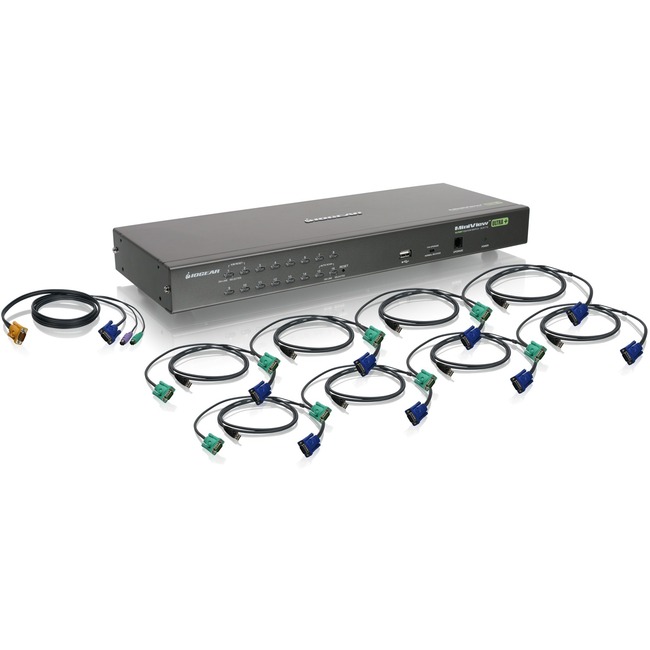

IOGEAR USB PS/2 Combo KVM Switch
| $516.58 Retail $749.95 |
- Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®
- Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display), and hotkeys
- Cascade up to 2 levels - control up to 256 computers from a single console*
- Security - 2 level password protection for OSD
- Maximum video resolution: up to 2048 x 1536
- Front USB Port - Fully compliant with USB 1.1 for system upgrades and shared peripherals**
- Rack mountable in a 19" (1U) system rack
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
- Fully Supports DDC2B
16 x 1 - 16 x SPHD-15 Keyboard/Mouse/Video - 1U - Rack-mountable
Product Specifications
| Brand Name | IOGEAR |
| Country of origin | China |
| Depth | 6.3" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Graphic Mode | QXGA |
| Height | 1.8" |
| Limited Warranty | 3 Year |
| Manufacturer | IOGEAR Inc |
| Manufacturer Part Number | GCS16KIT |
| Manufacturer Website Address | http://www.iogear.com |
| Marketing Information | 16-Port USB PS/2 Combo KVM Switch with Cables is a combo switch allowing access and control of up to 256 computers from a single console (keyboard mouse and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation eliminating the need to manually set the position with DIP switches. Additionally the GCS16KIT features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack. |
| Maximum Video Resolution | 2048 x 1536 |
| Number of Computers Supported | 16 |
| Number of USB Ports | 1 |
| Package Contents |
|
| Product Name | USB PS/2 Combo KVM Switch |
| Product Type | KVM Switchbox |
| Rack Height | 1U |
| UPC Alternates | 012300173421 803929850158 881317503664 |
| Weight (Approximate) | 6.02 lb |
| Width | 17" |
