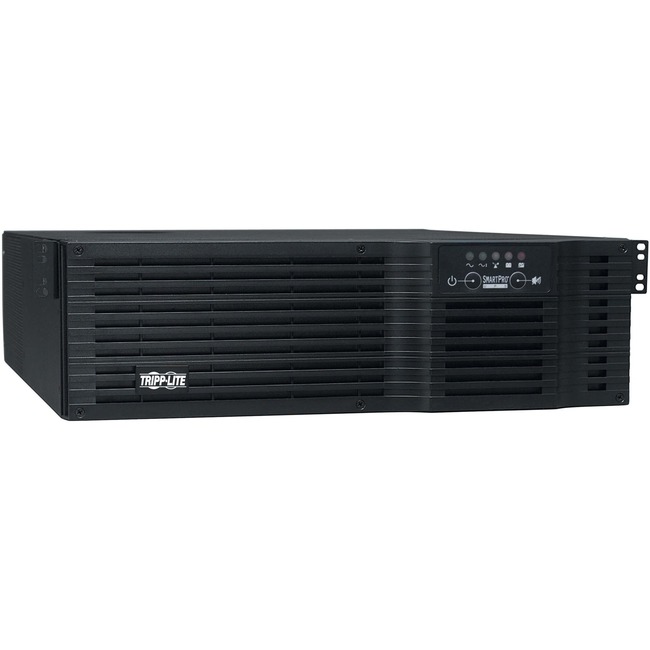

Tripp Lite UPS Smart 2200VA 1920W Rackmount AVR 120V / 230V Pure Sine Wave 3URM TAA GSA
| $1,801.25 Retail $3,427.64 |
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- 2200VA / 2.2kVA / 1920W line interactive 3U rack/tower UPS; 0.9 power factor
- Maintains 120V output with 120V or 230V input, Sine wave output
- USB port, RS232, EPO and optional SNMP/WEB card slot; Detailed status LEDs
- 95% line-mode efficiency, 2 switched load banks
- C20 inlet & 4 international input line cords, 4 5-15R & 4 5-15/20R outlets
3U Rack/Tower - 4.50 Hour Recharge - 12 Minute Stand-by - 110 V AC, 220 V AC Input - 120 V AC Output - 4 x NEMA 5-15/20R, 4 x NEMA 5-15R - TAA Compliant
Product Specifications
| Load Capacity (VA) | 2200 VA |
| Load Capacity (VA) | 2200 VA |
| Load Capacity (W) | 1920 W |
| Load Capacity (W) | 1920 W |
| Receptacle Detail | 4 x NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15/20R |
| Receptacle Detail | 4 x NEMA 5-15/20R |
| Additional Information | Input Receptacle: C20 |
| Additional Information | Input Receptacle: C20 |
| Backup/Run Time (Full Load) | 12 Minute |
| Backup/Run Time (Full Load) | 12 Minute |
| Backup/Run Time (Half Load) | 30 Minute |
| Backup/Run Time (Half Load) | 30 Minute |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Certifications & Standards |
|
| Certifications & Standards |
|
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Depth | 25.3" |
| Depth | 25.3" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Form factor | Rack/Tower |
| Form factor | Rack/Tower |
| Height | 5.3" |
| Height | 5.3" |
| Hot Swappable | Yes |
| Hot Swappable | Yes |
| Input current | 16 A |
| Input current | 16 A |
| Input voltage | 220 V AC |
| Input voltage | 110 V AC |
| Input voltage | 110 V AC |
| Input voltage | 220 V AC |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Load Capacity | 2200 VA/1920 W |
| Load Capacity | 2200 VA/1920 W |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SM2200RMDVTAA |
| Manufacturer Part Number | SM2200RMDVTAA |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite's dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs. Includes C20 power inlet with set of 4 international cordsets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode. |
| Marketing Information | Tripp Lite's dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs. Includes C20 power inlet with set of 4 international cordsets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode. |
| Network Management | SNMP Manageable |
| Network Management | SNMP Manageable |
| Output voltage | 120 V AC |
| Output voltage | 120 V AC |
| Package Contents |
|
| Package Contents |
|
| Product Line | SmartPro |
| Product Line | SmartPro |
| Product Name | SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS |
| Product Name | SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS |
| Product Type | Line-interactive UPS |
| Product Type | Line-interactive UPS |
| Rack Height | 3U |
| Rack Height | 3U |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Type | NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Receptacle Type | NEMA 5-15/20R |
| Software Included | PowerAlert Software |
| Software Included | PowerAlert Software |
| Transfer Time | 4 ms |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 4.50 Hour |
| Typical Battery Recharge Time | 4.50 Hour |
| UPC Alternates | 037332156310 |
| UPC Alternates | 037332156310 |
| Weight (Approximate) | 104.25 lb |
| Weight (Approximate) | 104.25 lb |
| Width | 17.5" |
| Width | 17.5" |
