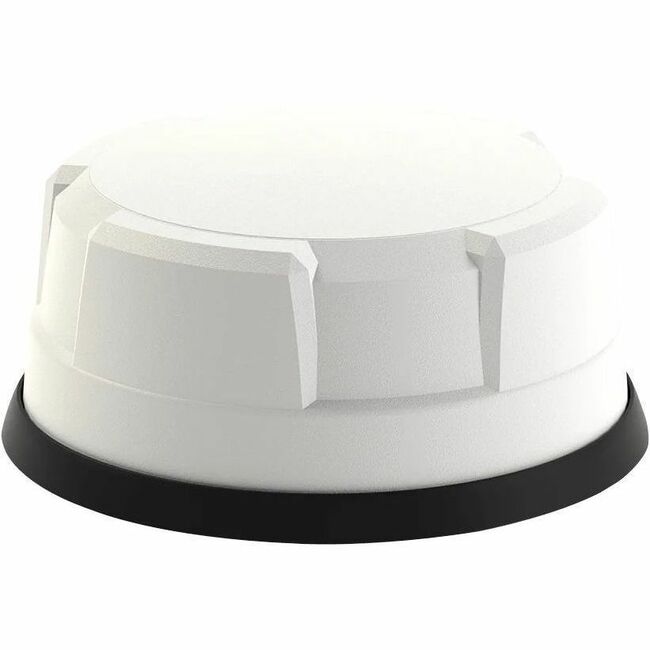

Panorama Antennas LG-IN2446 Antenna
| $399.46 Retail $624.52 |
- Provides ease of management and installation thanks to its omni-direction feature
- Provides gain of up to 9 dBi
- Due to its broader casting range, it provides improved wireless router signals
- Antenna can be mounted as panel
617 MHz to 960 MHz, 1710 MHz to 6000 MHz, 2.4 GHz, 4.9 GHz to 6.0 GHz, 1562 MHz to 1612 MHz - 9 dBi - Wireless Router, Cellular Network, GPS, Wireless Data Network, GLONASS - White - Panel - Omni-directional - SMA Connector - TAA Compliant
Product Specifications
| Antenna Gain | 9 dBi |
| Antenna Gain | 9 dBi |
| Antenna Gain (Isotropic) | 9 dBi |
| Directivity | Omni-directional |
| Directivity | Omni-directional |
| Operating Frequency Range | 4.9 GHz to 6.0 GHz |
| Operating Frequency Range | 2.4 GHz |
| Operating Frequency Range | 4.9 GHz to 6.0 GHz |
| Operating Frequency Range | 617 MHz to 960 MHz |
| Operating Frequency Range | 1562 MHz to 1612 MHz |
| Operating Frequency Range | 1710 MHz to 6000 MHz |
| Operating Frequency Range | 1710 MHz to 6000 MHz |
| Operating Frequency Range | 2.4 GHz |
| Operating Frequency Range | 1562 MHz to 1612 MHz |
| Operating Frequency Range | 617 MHz to 960 MHz |
| Application/Usage | Cellular Network |
| Application/Usage | GPS |
| Application/Usage | Wireless Data Network |
| Application/Usage | Wireless Router |
| Application/Usage | Wireless Router |
| Application/Usage | Cellular Network |
| Application/Usage | GLONASS |
| Application/Usage | Wireless Data Network |
| Application/Usage | GPS |
| Application/Usage | GLONASS |
| Brand Name | Panorama Antennas |
| Brand Name | Panorama Antennas |
| Compatibility | Cradlepoint COR IBR1700 Series Routers |
| Compatibility | Cradlepoint COR IBR1700 Series Routers |
| Connector Type | SMA |
| Connector Type | SMA |
| Diameter | 7.09" |
| Diameter | 7.09" |
| Environmental Certification | REACH |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Form factor | Panel |
| Form factor | Panel |
| Height | 3.15" |
| Height | 3.15" |
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer Part Number | LG-IN2446-W |
| Manufacturer Part Number | LG-IN2446-W |
| Manufacturer Website Address | http://www.panorama-antennas.com |
| Manufacturer Website Address | http://www.panorama-antennas.com |
| Marketing Information | The LG-IN2446 is a high performance 4x4 MiMo LTE 4x4 MiMo Dual Band WiFi and GPS/GNSS active antenna covering 617-960/1710-6000MHz.
The LG-IN2446 range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz combined with GPS/GNSS and 4x4 MiMo WiFi 2.4/5.0GHz in a compact low profile housing. The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna radome is available in black or white and meets IK10 for vandal resistance and IP69K for ingress protection. The integrated GPS/GNSS module supports GPS Glonass Galileo QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference. LG-IN2446 is supplied as a complete plug and play kit with integrated 5m (16') ultra-low loss TPE extension cables and SMA (m) connectors for 4G/5G and GPS and Rev Pol SMA for WiFi. |
| Marketing Information | The LG-IN2446 is a high performance 4x4 MiMo LTE 4x4 MiMo Dual Band WiFi and GPS/GNSS active antenna covering 617-960/1710-6000MHz.
The LG-IN2446 range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz combined with GPS/GNSS and 4x4 MiMo WiFi 2.4/5.0GHz in a compact low profile housing. The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna radome is available in black or white and meets IK10 for vandal resistance and IP69K for ingress protection. The integrated GPS/GNSS module supports GPS Glonass Galileo QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference. LG-IN2446 is supplied as a complete plug and play kit with integrated 5m (16') ultra-low loss TPE extension cables and SMA (m) connectors for 4G/5G and GPS and Rev Pol SMA for WiFi. |
| Product color | White |
| Product color | White |
| Product Model | LG-IN2446 |
| Product Model | LG-IN2446 |
| Product Name | LG-IN2446 Antenna |
| Product Name | LG-IN2446 Antenna |
| Product Type | Antenna |
| Product Type | Antenna |
