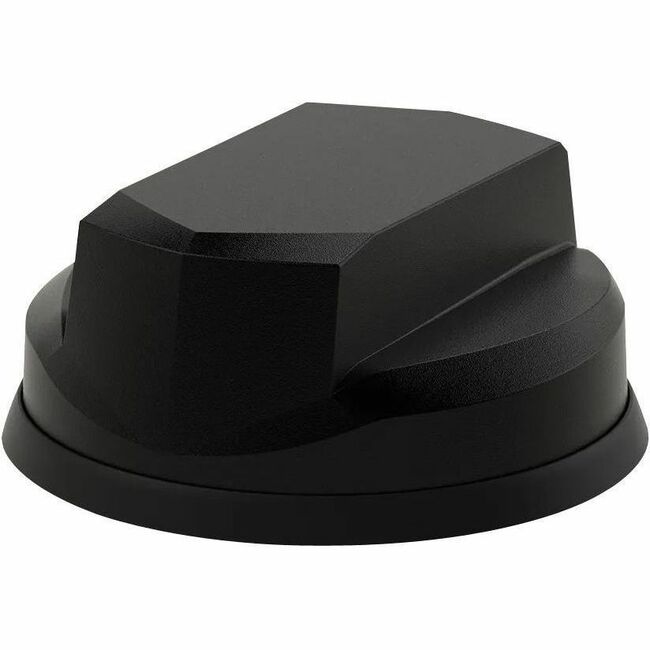

Panorama Antennas LG-IN2458 Antenna
| $384.29 Retail $501.33 |
- Eases up the installation procedure thanks to its 360-degree horizontal pattern
- Provides gain of up to 9 dBi
- Designed for cellular network
- Panel-mountable design for mounting convenience
617 MHz to 960 MHz, 1710 MHz to 6000 MHz, 2.4 GHz, 4.9 GHz to 6.0 GHz, 1562 MHz to 1612 MHz - 9 dBi - Cellular Network, Wireless Router, GPS, Wireless Data Network - Black - Panel - Omni-directional - SMA Connector - TAA Compliant
Product Specifications
| Antenna Gain | 9 dBi |
| Directivity | Omni-directional |
| Operating Frequency Range | 2.4 GHz |
| Operating Frequency Range | 4.9 GHz to 6.0 GHz |
| Operating Frequency Range | 617 MHz to 960 MHz |
| Operating Frequency Range | 1710 MHz to 6000 MHz |
| Operating Frequency Range | 1562 MHz to 1612 MHz |
| Application/Usage | Cellular Network |
| Application/Usage | Wireless Router |
| Application/Usage | GPS |
| Application/Usage | Wireless Data Network |
| Brand Name | Panorama Antennas |
| Compatibility | Cradlepoint COR IBR900 Series Routers |
| Connector Type | SMA |
| Diameter | 7.09" |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmentally Friendly | Yes |
| Form factor | Panel |
| Height | 3.15" |
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer Part Number | LG-IN2458 |
| Manufacturer Website Address | http://www.panorama-antennas.com |
| Marketing Information | The LG-IN2458 is a high performance 2x2 MiMo LTE 6x6 MiMo Dual Band WiFi and GPS/GNSS active antenna covering 617-960/1710-6000MHz.
The LG-IN2458 range has been designed to provide 2x2 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and 4x4 MiMo WiFi 2.4/5.0GHz. The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection. |
| Product color | Black |
| Product Name | LG-IN2458 Antenna |
| Product Type | Antenna |
