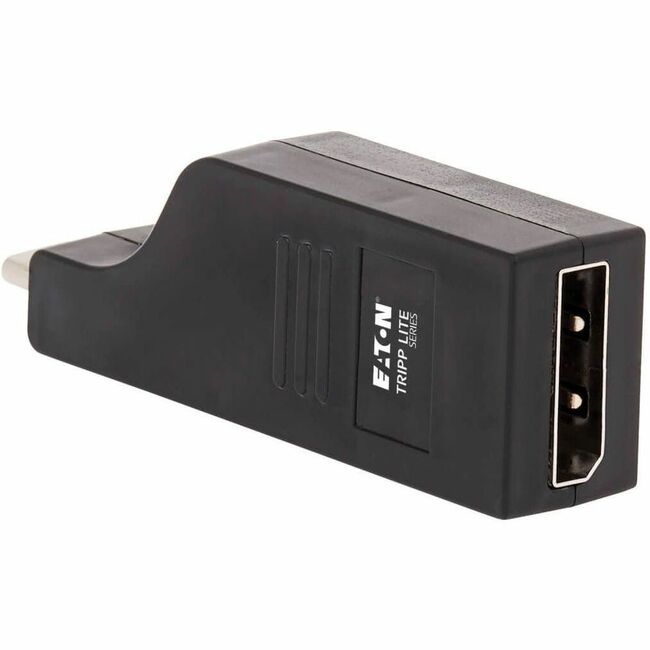

Tripp Lite USB C to DisplayPort Adapter Vertical M/F USB 3.1 Gen 1 4K USB-C
| $7.77 Retail $54.48 |
- Vertical USB-C plug orientation prevents adjacent ports from being blocked
- Converts video signals from sources supporting USB-C DisplayPort Alt Mode
- Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
- Reversible USB-C plug connects in either direction for immediate no-fuss use
- Plug-and-play operation with no software required for easy, immediate installation
- 3-year limited warranty
1 x USB Type C Male Thunderbolt 3 - 1 x DisplayPort Female Digital Audio/Video - 3840 x 2160 Supported - Gold Contact - Black
Product Specifications
| Connector on First End Details | 1 x USB Type C USB 3.1 Thunderbolt 3 Male |
| Connector on First End Details | 1 x USB Type C USB 3.1 Thunderbolt 3 Male |
| Connector on Second End Details | 1 x DisplayPort DisplayPort 1.2 Digital Audio/Video Female |
| Connector on Second End Details | 1 x DisplayPort DisplayPort 1.2 Digital Audio/Video Female |
| Connector Type on First End | USB 3.1 (Gen 1) Type C - Male |
| Connector Type on First End | USB 3.1 (Gen 1) Type C - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Female |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Female |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Product Material | Polybutylene Terephthalate (PBT) |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Product Material | Polybutylene Terephthalate (PBT) |
| Adapter Type | DisplayPort/USB |
| Adapter Type | DisplayPort/USB |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Contact Plating | Gold |
| Contact Plating | Gold |
| Country of origin | China |
| Country of origin | China |
| Depth | 2.3" |
| Depth | 2.3" |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Features | Molded |
| Features | Molded |
| Features | HDCP 2.2 |
| Features | Reversible |
| Features | HDCP 2.2 |
| Features | Reversible |
| Height | 0.6" |
| Height | 0.6" |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | U444-000-DP4K6B |
| Manufacturer Part Number | U444000DP4K6B |
| Manufacturer Part Number | U444-000-DP4K6B |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | USB-C to DisplayPort Adapter Connects to Your Laptop's USB-C or Thunderbolt 3 Port This USB Type-C to DisplayPort (DP) adapter connects a DP monitor to the USB-C or Thunderbolt 3 port on your computer tablet laptop notebook MacBook Chromebook Ultrabook or smartphone. It's an ideal connector for multitasking presenting video at trade shows and conferences editing documents playing online games and watching movies on a larger screen. It saves you money by allowing you to use your existing DP display instead of buying a new monitor. Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals By connecting the USB-C plug to a source device that supports USB DisplayPort Alt Mode you can output 4K video and 7.1-channel digital audio to a DP monitor television or projector without the hassle of installing special software drivers. Supports Crystal-Clear 4K Video with Multi-Channel Audio and 4:4:4 Color To send Ultra High Definition video to a DP television projector or monitor connect the DP output to the display using a DisplayPort cable (such as Tripp Lite's P580-Series sold separately). The DisplayPort input supports video resolutions up to 4K at 60 Hz with full rich 7.1-channel digital stereo. It's compatible with HDCP 2.2 and DisplayPort 1.2 standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Vertical Molding Prevents Blockage of Adjacent Ports The USB-C input's vertical orientation results in a slimmer adapter that maximizes space around the device's ports and prevents them from being blocked. Unlike traditional USB cables that connect in only one direction the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for a fumble-free connection every time. Ready to Use Right from the Package So You Can Plug and Play Immediately The plug-and-play USB Type-C to DisplayPort adapter is specifically designed for use with the MacBook Google Chromebook Pixel and other laptops tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no software drivers or external power. The palm-sized one-piece molding fits into your pocket briefcase or laptop bag for connecting to DisplayPort monitors anywhere. |
| Marketing Information | USB-C to DisplayPort Adapter Connects to Your Laptop's USB-C or Thunderbolt 3 Port This USB Type-C to DisplayPort (DP) adapter connects a DP monitor to the USB-C or Thunderbolt 3 port on your computer tablet laptop notebook MacBook Chromebook Ultrabook or smartphone. It's an ideal connector for multitasking presenting video at trade shows and conferences editing documents playing online games and watching movies on a larger screen. It saves you money by allowing you to use your existing DP display instead of buying a new monitor. Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals By connecting the USB-C plug to a source device that supports USB DisplayPort Alt Mode you can output 4K video and 7.1-channel digital audio to a DP monitor television or projector without the hassle of installing special software drivers. Supports Crystal-Clear 4K Video with Multi-Channel Audio and 4:4:4 Color To send Ultra High Definition video to a DP television projector or monitor connect the DP output to the display using a DisplayPort cable (such as Tripp Lite's P580-Series sold separately). The DisplayPort input supports video resolutions up to 4K at 60 Hz with full rich 7.1-channel digital stereo. It's compatible with HDCP 2.2 and DisplayPort 1.2 standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Vertical Molding Prevents Blockage of Adjacent Ports The USB-C input's vertical orientation results in a slimmer adapter that maximizes space around the device's ports and prevents them from being blocked. Unlike traditional USB cables that connect in only one direction the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for a fumble-free connection every time. Ready to Use Right from the Package So You Can Plug and Play Immediately The plug-and-play USB Type-C to DisplayPort adapter is specifically designed for use with the MacBook Google Chromebook Pixel and other laptops tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no software drivers or external power. The palm-sized one-piece molding fits into your pocket briefcase or laptop bag for connecting to DisplayPort monitors anywhere. |
| Maximum Resolution Supported | 3840 x 2160 |
| Maximum Resolution Supported | 3840 x 2160 |
| Package Contents |
|
| Package Contents |
|
| Product color | Black |
| Product color | Black |
| Product Model | U444-000-DP4K6B |
| Product Name | USB-C to DisplayPort Vertical Adapter M/F Black |
| Product Name | USB-C to DisplayPort Vertical Adapter M/F Black |
| Product Type | A/V Adapter |
| Product Type | A/V Adapter |
| UPC Alternates | 037332238092 818275688959 993246009008 |
| UPC Alternates | 037332238092 818275688959 993246009008 |
| Weight (Approximate) | 0.35 oz |
| Weight (Approximate) | 0.35 oz |
| Width | 0.8" |
| Width | 0.8" |
