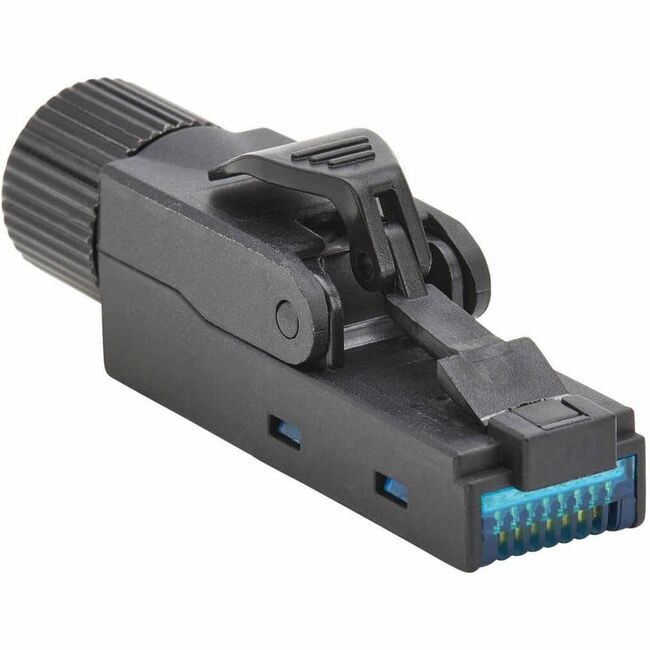

Tripp Lite Cat6a Class EA UTP Field-Termination Plug, 568A/568B, TAA
| $7.57 |
- Designed for fast, reliable field terminations with no special tools in PoE applications
- Supports PoE++ and high-power PoE to save you expense of powering PoE devices individually
- Accommodates 23-27 AWG solid or stranded cabling in 5.5-8.5 mm diameters
- Versatile glass-reinforced nylon plug can be re-terminated as many as 20 times
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
1 x RJ-45 Network Male - Black - TAA Compliant
Product Specifications
| Compatible Wire Gauge | 23-27 AWG |
| Connector Details | 1 x RJ-45 Network Male |
| Ingress Protection (IP) Rating | IP20 |
| Ingress Protection (IP) Rating | IP20 |
| Material Details | Glass Reinforced Nylon - Plug |
| Product Material | Tin Plated Phosphor Bronze |
| Product Material | Nylon |
| Product Material | Glass Reinforced Nylon |
| Brand Name | Tripp Lite |
| Connector gender | Male |
| Connector Type | RJ-45 Network - Male |
| Contact Plating | Gold |
| Depth | 0.5" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Stranded |
| Features | 4-Pair Power over Ethernet (4PPoE) Support |
| Features | PoE |
| Features | PoE++ |
| Height | 0.7" |
| Limited Warranty | Lifetime |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | N232USC6A1 |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tool-Free RJ45 Cat6a Plug Designed for Field Installation This Cat6a RJ45 plug simplifies the installation of devices in an above-ceiling application where installing a face plate isn't practical or where outlets jacks and patch cables must be plenum rated. The clamshell design allows a Cat6a cable to be terminated to the N232-USC6A-1 which then connects to a Type 3 or Type 4 PoE (Power over Ethernet) device such as a WAP (Wireless Access Point) or surveillance camera. Supports PoE++ Applications with up to 100W of Power Connect high-power PoE devices such as video conferencing devices laptops and flat screens building management devices and more. The UL-compliant N232-USC6A-1 is 4PPoE (PoE++) compatible and IEEE 802.3bt compliant for PoE applications up to 100 watts. Assembles Easily with No Special Tools Required The N232-USC6A-1 is made for fast reliable terminations in the field with just a wire stripper/cutter. It accommodates 23-27 AWG solid or stranded cabling and 5.5-8.5 mm cable jacket diameters. Ideal for assembling high-performance patch cords in a hurry the N232-USC6A-1 can be re-terminated as many as 20 times. A Must-Have for Modern Data Centers The glass-reinforced nylon construction ensures your connection is built to last. The IDC module can be installed and uninstalled up to five times. A locking cylinder screws into place to ensure the installed cable remains secured. TAA-Compliant for GSA Schedule Purchases The N232-USC6A-1 is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
| Product color | Black |
| Product Model | N232-USC6A-1 |
| Product Name | Cat6a Class EA UTP Field-Termination Plug 568A/568B TAA |
| Product Type | Network Connector |
| Shielding | No |
| UPC Alternates | 037332283207 |
| Width | 1.9" |
