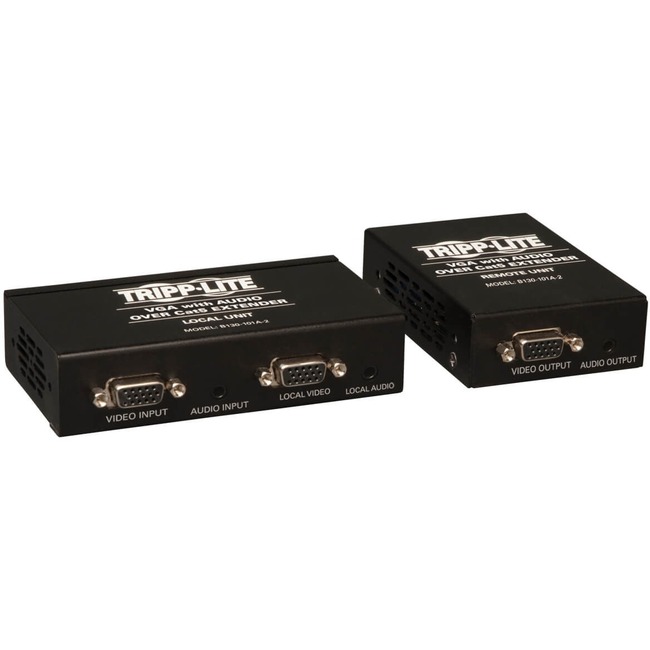

Tripp Lite VGA & Audio over Cat5/Cat6 Video Extender Kit Transmitter Receiver TAA GSA
| $91.40 Retail $217.60 |
- Extends a 1920 x 1440 (60Hz) video and audio signal up to 500 ft., or a 1024 x 768 (60Hz) video and audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
- EDID copy feature ensures optimal display compatibility
- Can further expand the range and number of monitors/speakers by adding B132-110A repeaters
- For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
1 Input Device - 2 Output Device - 1000 ft Range - 2 x Network (RJ-45) - 1 x VGA In - 2 x VGA Out - 1920 x 1440 - Twisted Pair - Category 6 - Wall Mountable, Rack-mountable, Pole-mountable - TAA Compliant
Product Specifications
| Number of Input Devices Supported | 1 |
| Brand Name | Tripp Lite |
| Certifications & Standards | TAA |
| Connectivity technology | Wired |
| Country of origin | Taiwan |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Pole-mountable |
| Form factor | Wall Mountable |
| Form factor | Rack-mountable |
| Input voltage | 110 V AC |
| Input voltage | 220 V AC |
| Limited Warranty | 1 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | B130-101A-2 |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite's B130-101A-2 allows you to extend a 1920 x 1440 (60Hz) video and audio signal up to 500 ft. or a 1024 x 768 (60Hz) video and audio signal up to 1000 ft. when using 24Awg Solid Wire Cat5e/6 cable such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 3 repeaters with the B130-101A-2 receiver at the end of the chain for a total of 4 sets of monitors and speakers. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1000 ft. from the first repeater in the chain to the last receiver. For optimal image quality between 500 and 1000 ft. use Zero-Skew cable such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units allowing them to be wallmounted rackmounted or pole mounted. Ideal for digital signage situations such as retail schools churches etc. |
| Maximum Operating Distance | 1000 ft |
| Maximum Video Resolution | 1920 x 1440 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents |
|
| Product color | Black |
| Product Name | VGA + Audio over Cat5 Extender Kit (Transmitter + Receiver) |
| Product Type | Video Extender Transmitter/Receiver |
| Twisted Pair Cable Standard | Category 6 |
| UPC Alternates | 037332178398 818243197506 999565110951 |
