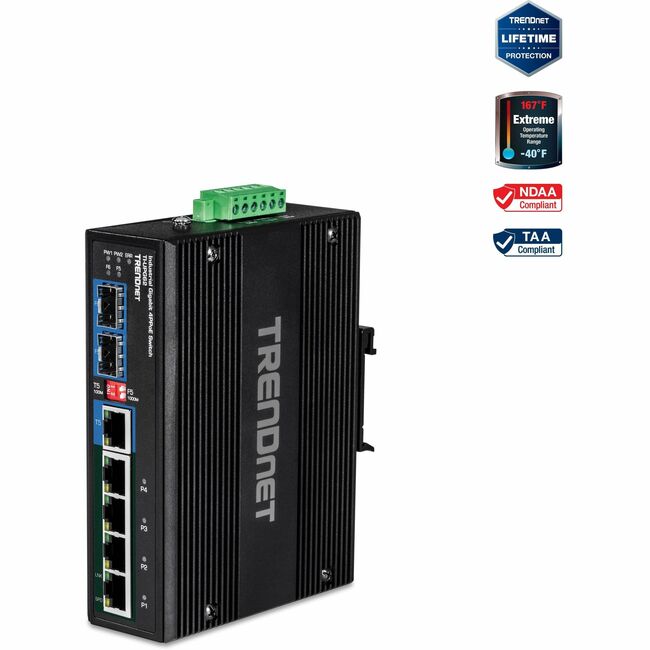

TRENDnet 6-Port Hardened Industrial Gigabit 10/100/1000 Mbps Ultra PoE DIN-Rail Switch; UPoE; IP30; DIN-Rail & Wall Mounts Included; Lifetime Protection; TI-UPG62
| $376.20 Retail $434.99 |
- 4 x Gigabit PoE++ ports
- 1x Gigabit share port
- 2 x Gigabit SFP slots
- 240W power budget
- 12Gbps switching capacity
- Hardened IP30 rated metal switch
- Includes DIN-rail and wall mounts
- Wide operating temperature range of -40° - 75° C (-40° - 167° F)
- Dual power inputs for redundancy
- Alarm output triggered by power failure
- Power supply sold separately (TI-S24048)
- Lifetime Warranty
6-Port Hardened Industrial Gigabit PoE++ Switch
Product Specifications
| Modular | Yes |
| Total Number of Network Ports | 6 |
| Country of origin | Taiwan |
| Depth | 6" |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP |
| Form factor | Wall Mountable |
| Form factor | Rail-mountable |
| Height | 2" |
| Layer Supported | 2 |
| Limited Warranty | Lifetime |
| Manageable | No |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-UPG62 |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information |
TRENDnet's TI-UPG62 is a reliable IP30 unmanaged DIN-Rail PoE++ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE++ ports a 240W PoE power budget two dedicated SFP slots and a 12 Gbps switching capacity. This hardened industrial switch features multiple redundant power inputs and a power failure alarm relay. PoE++ A 240 watt PoE power budget supplies up to four Power over Ethernet devices with PoE (15.4W) PoE+ (30W) or PoE++ (90W) power. Fault Tolerance Features multiple redundant power inputs (Primary and RPS) from external power sources and an output alarm relay in the event of input power failure. Industrial Hardened Design Designed with a rugged IP30 rated enclosure resistance to a high degree of vibration and shock protection against ESD/EMI/surge and a wide operating temperature range (- 40 - 75 °C) (- 40 - 167 °F). Package Contents TI-UPG62 Quick Installation Guide Removable terminal block DIN-Rail and wall mount kit |
| Marketing Information |
TRENDnet's TI-UPG62 is a reliable IP30 unmanaged DIN-Rail PoE++ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE++ ports a 240W PoE power budget two dedicated SFP slots and a 12 Gbps switching capacity. This hardened industrial switch features multiple redundant power inputs and a power failure alarm relay. PoE++ A 240 watt PoE power budget supplies up to four Power over Ethernet devices with PoE (15.4W) PoE+ (30W) or PoE++ (90W) power. Fault Tolerance Features multiple redundant power inputs (Primary and RPS) from external power sources and an output alarm relay in the event of input power failure. Industrial Hardened Design Designed with a rugged IP30 rated enclosure resistance to a high degree of vibration and shock protection against ESD/EMI/surge and a wide operating temperature range (- 40 - 75 °C) (- 40 - 167 °F). Package Contents TI-UPG62 Quick Installation Guide Removable terminal block DIN-Rail and wall mount kit |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 1000Base-X |
| Network Technology | 1000Base-T |
| Package Contents |
|
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Network |
| Product Condition | New |
| Product Name | 6-Port Hardened Industrial Gigabit Ultra PoE DIN-Rail Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 710931160611 |
| Weight (Approximate) | 5.72 oz |
| Width | 4" |
