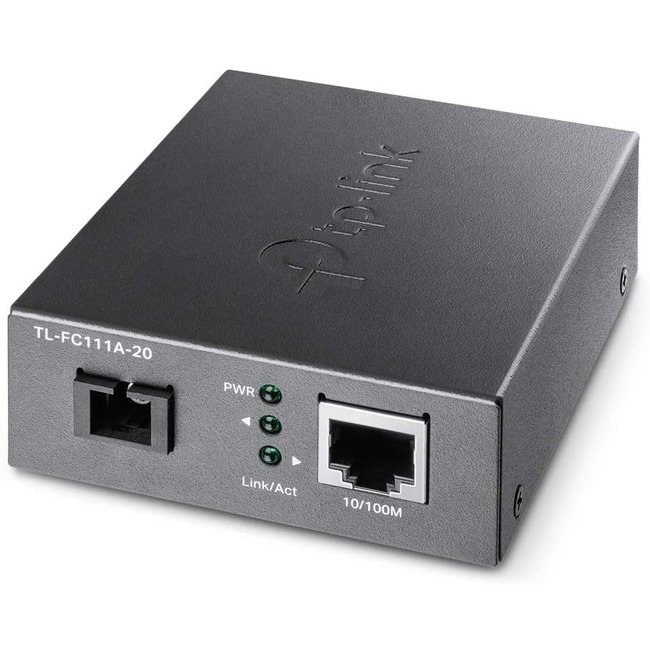

TP-Link TL-FC111A-20 - 10/100 Mbps WDM SFP to RJ45 Fiber Media Converter - Limited Lifetime Warranty
| $14.71 Retail $14.99 |
- Designed to convert 100BASE-FX SC fiber to 100Base-Tx copper media or vice versa.
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.
- Supports auto MDI/MDIX for TX port.
- TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance up to 20 km with only one single-mode fiber, which saves half of the cable deployment cost for customers compares to dual-fiber deployment.
- Wavelength: Tx 1550 nm, Rx 1310nm; Compatible TP-Link model: TL-FC111B-20, TL-FC111PB-20.
Fiber to Ethernet Converter - 10/100 Mbps RJ45 Port to 100Base-FX Single-Mode Fiber - Extend Fiber Distance Up to 20 km
Product Specifications
| Fiber Mode Supported | Single-mode |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Standard | 9/125 µm |
| Fiber Optic Cable Standard | 9/125 µm |
| Fiber Optic Wavelength | 1310 nm |
| Fiber Optic Wavelength | 1310 nm |
| Fiber Optic Wavelength | 1550 nm |
| Fiber Optic Wavelength | 1550 nm |
| Maximum Distance Supported | 12.43 Mile |
| Maximum Distance Supported | 12.43 Mile |
| Network (RJ-45) | Yes |
| Network (RJ-45) | Yes |
| Brand Name | TP-Link |
| Brand Name | TP-Link |
| Country of origin | China |
| Country of origin | China |
| Depth | 2.9" |
| Depth | 2.9" |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Fast Ethernet |
| Form factor | Rack-mountable |
| Form factor | Standalone |
| Form factor | Standalone |
| Form factor | Rack-mountable |
| Height | 1.1" |
| Height | 1.1" |
| Limited Warranty | Lifetime |
| Limited Warranty | Lifetime |
| Manufacturer | TP-LINK Technologies Co. Ltd |
| Manufacturer | TP-LINK Technologies Co. Ltd |
| Manufacturer Part Number | TL-FC111A-20 |
| Manufacturer Part Number | TL-FC111A-20 |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | What This Product Does TL-FC111A-20 is a 100M media converter providing a 100M RJ-45 port and a 100M SC fiber port which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking. How This Product Works TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm. |
| Marketing Information | What This Product Does TL-FC111A-20 is a 100M media converter providing a 100M RJ-45 port and a 100M SC fiber port which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking. How This Product Works TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 100Base-FX |
| Network Technology | 100Base-FX |
| Network Technology | 100Base-TX |
| Network Technology | 100Base-TX |
| Number of Network (RJ-45) Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents |
|
| Package Contents |
|
| Power source | AC Adapter |
| Power source | AC Adapter |
| Product Name | 10/100 Mbps WDM Media Converter |
| Product Name | 10/100 Mbps WDM Media Converter |
| Product Type | Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| Total Number of Ports | 2 |
| UPC Alternates | 845973010089 |
| UPC Alternates | 845973010089 |
| Width | 3.7" |
| Width | 3.7" |
